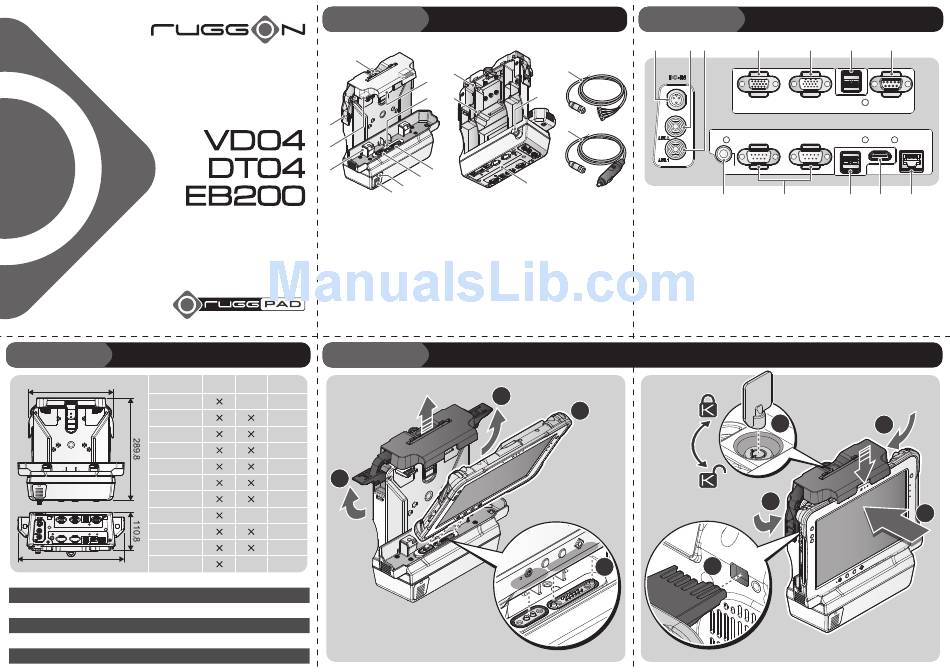

RuggON VD04 Quick Start Manual

Quick Start Guide
©2015 RuggON Corporation. All rights reserved.
VD04 Specification
Unit: mm
239.9
USB
RS-232
RJ45
VGA
HDMI
Audio
Speaker
SMA antenna
DI/DO
CAN bus
301.2 DC-in
Output Power 19V @ 1.57A Max., total output 30W
9VDC to 32VDC
Input Power
LED x 1 (Blue)
IP Rating IP54
Operating Temperature Range -10°C (14°F) to 50°C (122°F)
Storage Temperature Range -30°C (-22°F) to 80°C (176°F)
VD04
Front Top
4
3
2
1
Bumper
1
Alignment tab
2
Locking latch
3
Key lock slot
4
5 Latch tab
Locator pin
6
7 Speaker
Connection LED
8
RF Pass-Through
9
Connector
VD04
VD04-M VD04-S VD04-F-A
2 4
2
1
1
1
A
1
1
2 2
4xDI; 4xDO
By Request
1 1
Overview
Rear Bottom
15
12
5
13
6 11
16
10
9
14
8
7
Docking connector
10
Mounting holes
11
(VESA 75 x 75mm) x 4
Mounting holes
12
(VESA 100 x 100mm) x 4
Fuse
13
I/O ports
14
ACC power kit
15
(provided by VD04-F-A)
16 Cigarette lighter kit
(provided by VD04-S and VD04-F-C)
A
VD04
1 2 3
VGA
COM1
AUDIO
8
1 DC-in jack
SMA Antenna II
2
(WIFI or WWAN, assigned
by RuggON DashON Utility)
SMA Antenna I
3
(WIFI or GPS, assigned by
RuggON DashON Utility)
VGA port
4
Digital I/O (4 x DI, 4 x DO)
5
B
C
B
I/O Ports
4 5 6 7
DI/DO USB
COM2
USB
RJ45
HDMI
9 6 10 11
6 USB 2.0 Type-A x 4
CANbus
7
(not standard option;
by request)
Headset port 1.5mm
8
9 COM port x 2
HDMI port
10
RJ45 port
11
