Axxonn Tuscan Ceramic Tile Top Fire Pit Assembly Instructions

Black/antique bronze

Advertisement

Quick Links

Axxonn Tuscan Ceramic Tile Top Fire Pit, Black/Antique Bronze
Part List
Part List
Description
A
Mantle Frame
B
Side Panel
C
Corner Post
D
Square Bowl
E
Log Grate
F
Mesh Lid
Square Tile Piece(5.3 x
G
5.3 inch)
Rectangular Tile
H
Piece(10.6 x 5.3 inch)
I
Lid Ring
J
Bolt (M6x12mm)
K
Poker
L
Allen Wrench (M4)
Plastic Cap
M
(Pre-installed)
Tool required: Allen Wrench (provided)

Assembly Instructions:

Item # FT501PTESMLID
Qty.
Drawings
1
4
4
1
1
1
4
8
1
20
1
1
4
Part #
8-07-00158-01-055
8-20-00059-01-077
8-01-00087-01-077
8-09-00018-01-055
8-14-00018-01-055
8-21-00022-01-055
3-19-00017-09-000
3-19-00018-09-000
1-20-00001-01-055
1-06-06012-32-000
3-06-00013-47-055
3-06-00009-01-000
1-04-00024-07-055

Advertisement

loading
Need help?

Need help?

Do you have a question about the Tuscan Ceramic Tile Top Fire Pit and is the answer not in the manual?

Questions and answers

Summary of Contents for Axxonn Tuscan Ceramic Tile Top Fire Pit

  • Page 1: Assembly Instructions

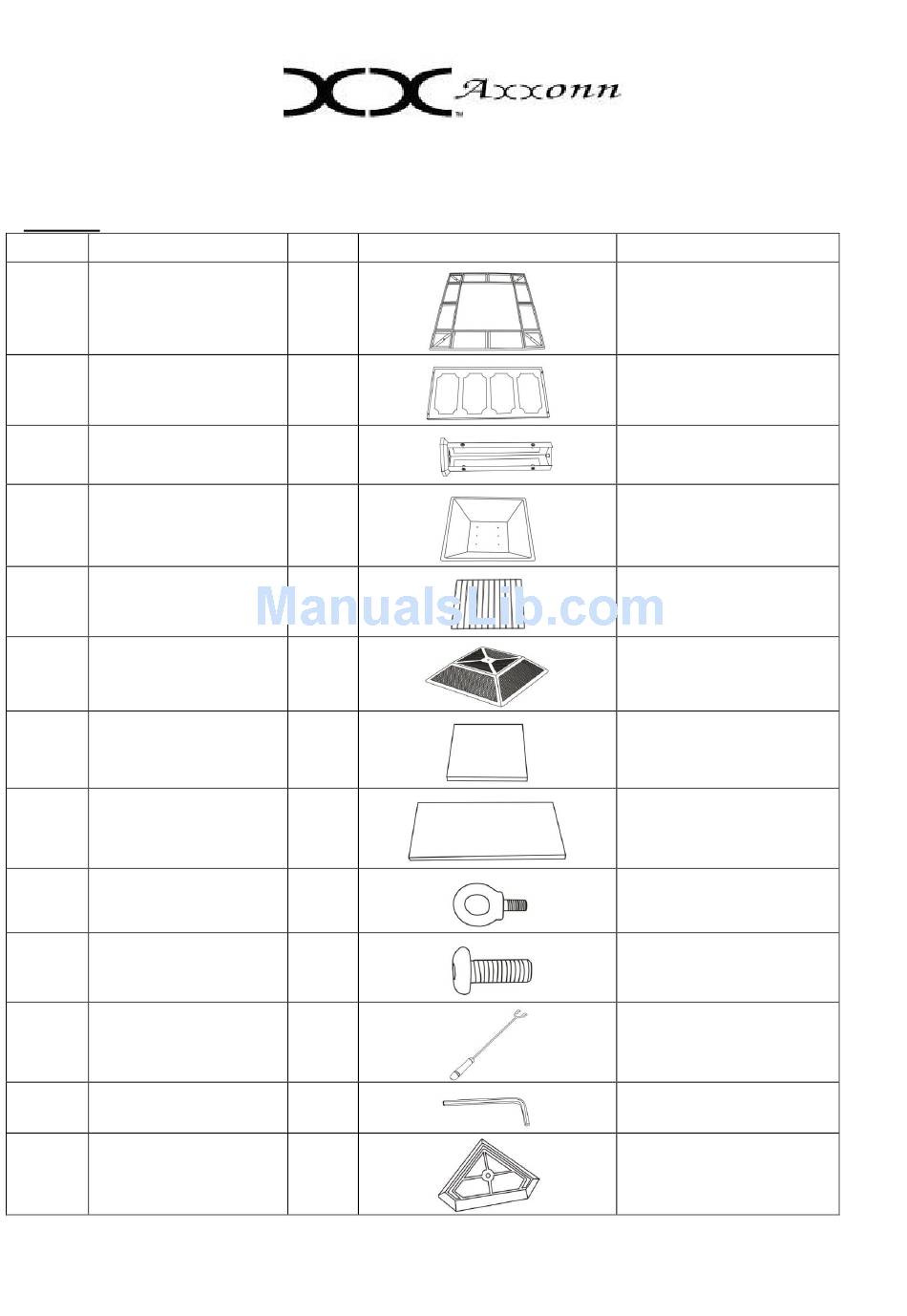

    Assembly Instructions: Axxonn Tuscan Ceramic Tile Top Fire Pit, Black/Antique Bronze Item # FT501PTESMLID Part List Part List Description Qty. Drawings Part # Mantle Frame 8-07-00158-01-055 Side Panel 8-20-00059-01-077 Corner Post 8-01-00087-01-077 Square Bowl 8-09-00018-01-055 Log Grate 8-14-00018-01-055 Mesh Lid 8-21-00022-01-055 Square Tile Piece(5.3 x...
  • Page 2 Special Warnings  This fire pit is intended for Outdoor Use Only! DO NOT use on wooden or composite decks.  Fire pit must be placed on a non-combustible surface.  This fire pit is intended to Burn Wood Logs Only! DO NOT burn coal, leaves or other combustible materials in the fire pit.
  • Page 3 Step 1. Attach the 4 Corner posts (C) to Mantle Frame (A) with Bolt (J). Finger Tighten; do not fully tighten all bolts. View Fig 1 Step 2. Place the Mantle Frame (A) upside down on a flat smooth surface. Attach the Side Panel (B) to the Corner Posts (C) using the Bolt (J).
  • Page 4 (View Fig 5) Your fire pit is ready for use. DO NOT RETURN For questions or warranty service Axxonn’s service@axxonn.com Email or CUSTOMER SERVICE call 1-877-229-9666 between 8:00AM to 4:30PM Eastern Standard Time Email For Warranty Service we need you to 1.Proof of purchase, 2.Your name, address and phone number,...
