Axxonn FT150PWISMLID Assembly Instructions

Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
Part List
Part List
Description
A
Corner Post
B
Mantle
C
Square Bowl
D
Log Grate
E
Mesh Lid
F
Connecting Plate
G
Ladder Frame
H1
Bolt (M6x12mm)
H2
Bolt (M6x15mm)
I
Bolt (M6x12mm)
J
Lid Ring
Assembly Instructions: Metal Fire Pit
FT150PWISMLID
Qty.
4
4
1
1
1
4
4
8
8
8
1
Drawings
Part #
8-01-00018-01-055
8-20-00004-01-056
8-09-00018-01-055
8-14-00018-01-055
8-21-00022-01-055
8-06-00003-01-055
8-20-00005-01-055
1-05-06012-32-000
1-05-06015-32-000
1-10-06012-31-000
1-20-00001-01-055

Advertisement

loading
Need help?

Need help?

Do you have a question about the FT150PWISMLID and is the answer not in the manual?

Questions and answers

Related Manuals for Axxonn FT150PWISMLID

Summary of Contents for Axxonn FT150PWISMLID

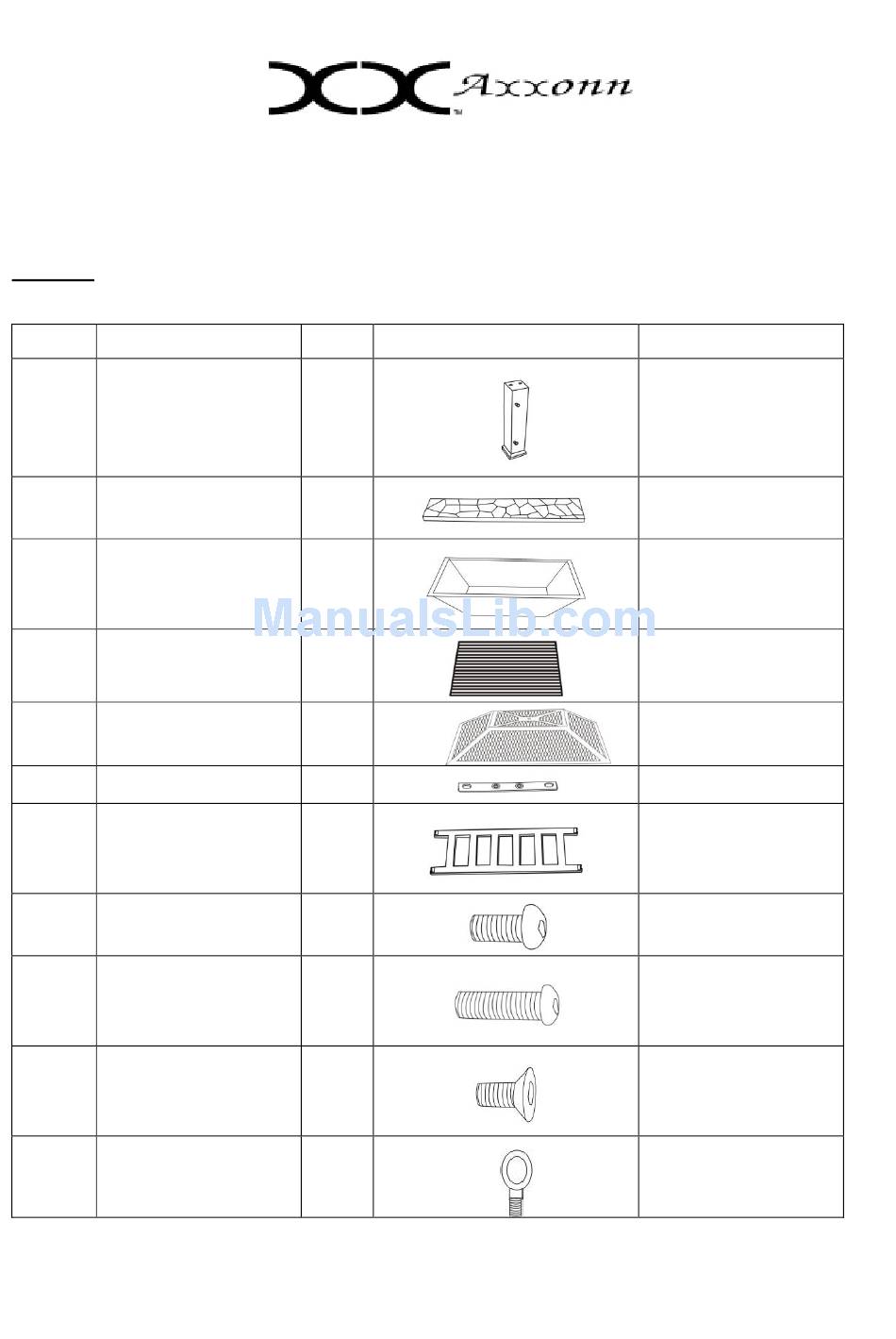

  • Page 1 Assembly Instructions: Metal Fire Pit FT150PWISMLID Part List Part List Description Qty. Drawings Part # Corner Post 8-01-00018-01-055 Mantle 8-20-00004-01-056 Square Bowl 8-09-00018-01-055 Log Grate 8-14-00018-01-055 Mesh Lid 8-21-00022-01-055 Connecting Plate 8-06-00003-01-055 Ladder Frame 8-20-00005-01-055 Bolt (M6x12mm) 1-05-06012-32-000 Bolt (M6x15mm)
  • Page 2 Protective Cover 3-03-00001-10-055 Poker 3-06-00013-47-055 Allen Wrench (M4) 3-06-00009-01-000 Plastic Cap 1-53-70070-07-000 (Pre-installed) Tool required: Allen Wrench (provided) Special Warnings  This fire pit is intended for Outdoor Use Only! DO NOT use on wooden decks.  This fire pit is intended to Burn Wood Logs Only! DO NOT burn coal, leaves or other combustible materials in the fire pit.

  • Page 3: Care And Maintenance

    Care and Maintenance This fire pit is a quality-built product and is made to last for many years. The frame structure of this unit is made of powder-coated steel extrusion and should resist rusting under normal use. Should rusting occur, we suggest using a steel brush on the affected area followed by a spray coating of high temperature anti-rust paint.
  • Page 4 Step 2. Attach Connecting Plates (F) to Corner Posts (A) by using Bolts (I). Tighten the Bolts (I) with an Allen Wrench (M) (provided). Then attach the Corner Posts (A) installed Connecting Plates (F) to the Mantles (B) by using Bolts (H2). View Fig 2 Step 3.

  • Page 5: Customer Service

    (View Fig 5) Your Fire Pit is ready for use now! Please enjoy! For questions or warranty service DO NOT RETURN, Axxonn’s service@axxonn.com Email or Call CUSTOMER SERVICE 1-877-229-9666 between 8:00AM to 4:30PM Eastern Standard Time For Warranty Service we need you to email us Proof of purchase, 2.
