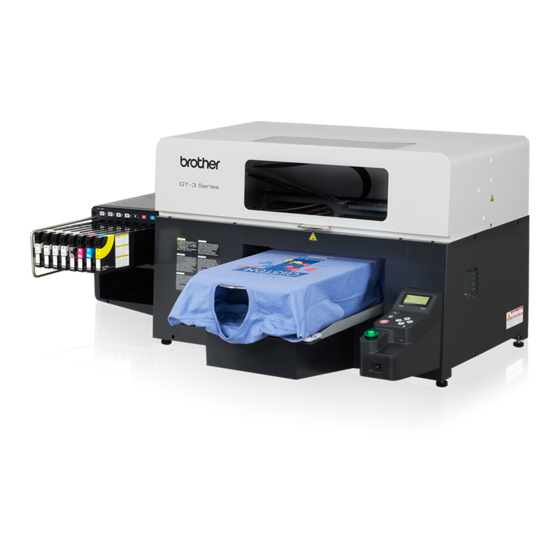

Brother GT-3 Series Reference Manual

Hide thumbs Also See for GT-3 Series:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual See also: Basic Operation Manual, Service Manual
A l l u s e f u l l i n f o r m a t i o n t o s u c c e e d i n y o u r p r i n t i n g b u s i n e s s
G T - 3
T H E
S E R I E S
v 1.0
A reference guide for all GT-3 Series users

Advertisement

loading

Related Manuals for Brother GT-3 Series

Summary of Contents for Brother GT-3 Series

  • Page 1 A l l u s e f u l l i n f o r m a t i o n t o s u c c e e d i n y o u r p r i n t i n g b u s i n e s s G T - 3 T H E S E R I E S v 1.0 A reference guide for all GT-3 Series users...

  • Page 2: Environmental Conditions

    ENVIRONMENTAL CONDITIONS > Mandatory Temperature & Humidity Requirements: TEMPERATURE HUMIDITY ° ° NOZZLE CHECK Always Platen at level A. Menu > Test Print > CMYK > If not all the nozzles are firing, start a cleaning. Only a few missing, then Normal Cleaning If more then 10, perform Powerful Cleaning...
  • Page 3 HOW TO CLEAN PRINTHEADS Go to the menu: > Maintenance Nozzle Cleaning with green stick swabs and cleaning fluid... clean the outside of the nozzle metal plate with white stick swabs and cleaning fluid... clean the surface of the small inner plate with nozzles, only in one direction! PRE-TREATMENT RATIO 1 Liter 2 Liters...
  • Page 4 HEAT PRESS SETTINGS for Pre-Treatment 5 - 5,5 180°C Bars Treatment 75 - 80 360°F 1/2 distilled Seconds water HEAT PRESS & TUNNEL CURING SETTINGS 0,7 - 1,4 180°C Bars Curing 10 - 20 360°F Seconds Heat Press 3,30 160°C Curing 320°F Tunnel Dryer...
  • Page 5 WEEKLY STANDARD MAINTENANCE > WHITE Maintenance Standard Procedure for GT3 Series Week White Tube Cleaning Daily Cleaning White White Agitation > WHITE Maintenance Standard Procedure for GT3 Series Week MAINTENANCE with WHITE AGITATION > 5 working days a week Min. 15 white prints a day! Week >...
  • Page 6 BROTHER WEB SITES & DOWNLOADS > Brother website: latest printer drivers & manuals http://www.brother.com/download/embroidery/index.htm gtuser bro_541 User : Password : USEFULL TOOLS FOR GT SERIES www.touchdownplaten.com www.capplaten.com www.gripperkit.com www.shoeplaten.com P-DIP SOFTWARE P-DIP will replace the existing “GT Separator PNG”. This program will recognize and open “.bmp, .gif, .jpg, and .png” formats.
  • Page 7 IF YOU DON’T WANT TO USE WHITE INK > For less than 2 weeks: You can leave White Ink in the white tube. However you must do necessary maintenance for white ink. > For more than 2 weeks: You have to use Maintenance Solution according to Instruction Manual. When you stop to use white ink, please clean Caps, Nozzles and wiper blade of white Print Heads side.
