mFi Power Strip
Model: mPower

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mPower and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti mPower

Summary of Contents for Ubiquiti mPower

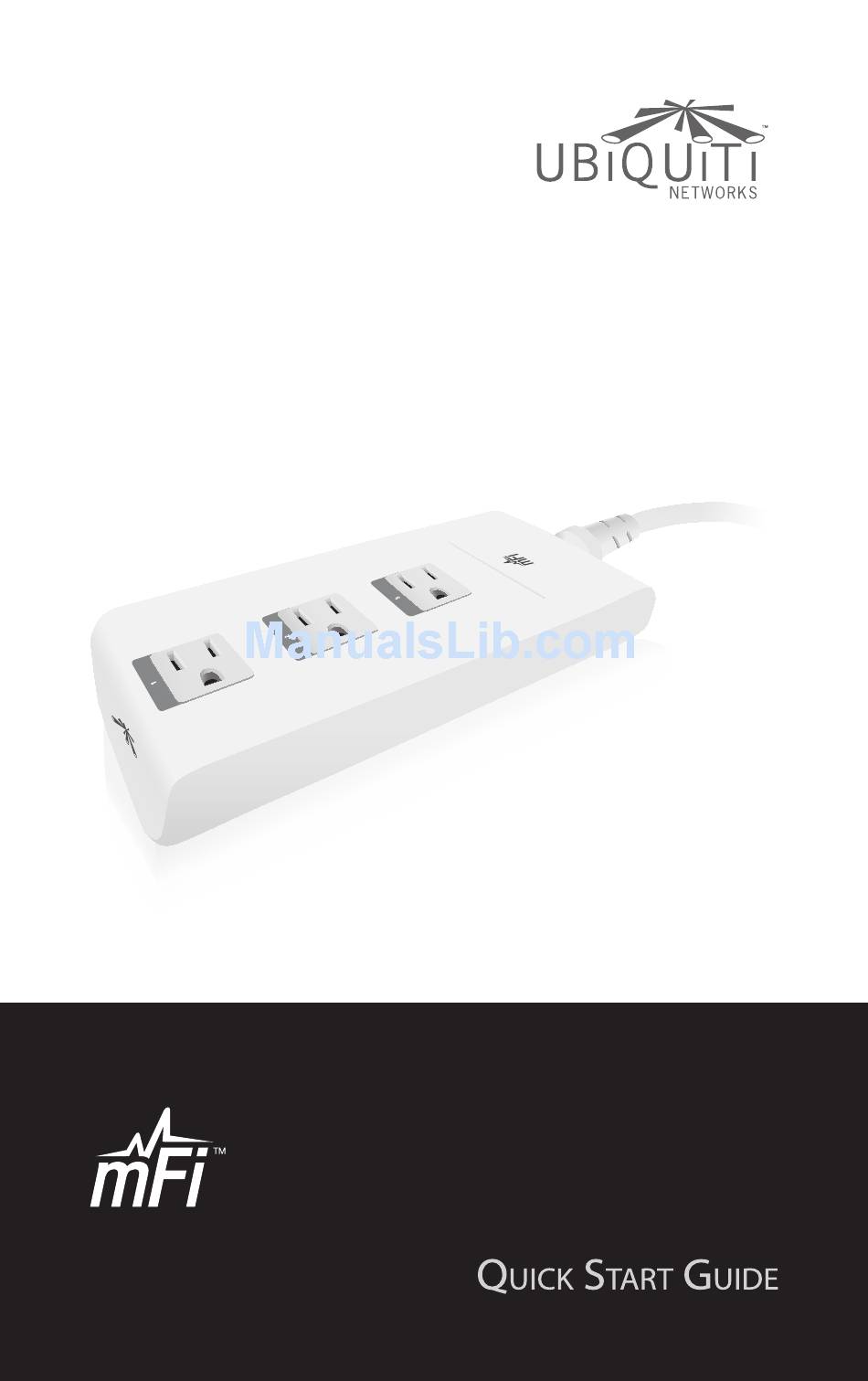

  • Page 1 Power Strip Model: mPower...

  • Page 3: Package Contents

    ™ ™ The mPower is a power strip with Wi-Fi capability that is designed for use with the Ubiquiti mFi platform. Once connected, you can use the mFi Controller software to define rules using your web browser. Rules detail what actions occur when trigger conditions are met.

  • Page 4: Hardware Overview

    Power Strip ™ ™ Hardware Overview Status LED Reset Button Circuit Breaker Reset Button...
  • Page 5 Hardware Overview Status LED The Status LED has two different states: The Status LED will light The Status LED will light yellow when the mPower blue when the mPower is first powered on in has been successfully factory default mode out integrated into a network of the box.

  • Page 6: Hardware Installation

    Power Strip ™ ™ Hardware Installation The mPower Power Strip includes an optional mounting plate. Wall-Mount Position the Mounting Plate on the wall with the text in the proper orientation, and mark the mounting holes on the wall. Wall Mount Slide Use a 6 mm drill bit to drill the holes.
  • Page 7 Hardware Installation Align the back of the mPower Power Strip with the Mounting Plate. Slide the Power Strip to the right to lock it into place.

  • Page 8: Software Installation

    Power Strip ™ ™ Software Installation Insert the mFi Controller software CD into your CD-ROM drive and follow the instructions for your specific computer type. Mac Users Click the Install icon. Click Continue and follow the on-screen instructions to install the software.
  • Page 9 Software Installation Go to Go > Applications and double-click the mFi icon. Proceed to Configuring the mFi Controller Software on page 9. PC Users Launch mFi-installer.exe. Click Install.
  • Page 10 Power Strip ™ ™ If your computer doesn’t have Java 1.6 or above installed, you will be prompted to install it. Click Install to continue. Ensure the Start mFi Controller after installation option is checked and click Finish.
  • Page 11 Software Installation Note: The mFi Controller software can also be launched from Start > All Programs. Configuring the mFi Controller Software The mFi Controller software startup will begin. Click Launch a Browser to Manage the Network.
  • Page 12 Power Strip ™ ™ The mFi Configuration Wizard will appear the first time you launch the mFi Controller software. On the Welcome screen, select your language and country. Click Next. Select the device(s) that you want to configure. The Refresh button can be used to refresh the list of...
  • Page 13 Software Installation Enter an administrator name in the Admin Name field. Enter a password in the Password and Confirm fields. Click Next. Click Finish to confirm your settings.
  • Page 14 Password that you created and click Login. Configuring the mPower via Wi-Fi To configure the mPower device, you must access it via Wi-Fi from a computer. The mPower device has a default SSID (wireless network name) labeled mFi followed by the last six characters of the MAC address.
  • Page 15 Configuring the mPower via Wi-Fi Click the AirPort icon in the menu bar (top left side of the screen). Select the wireless network (SSID) that begins with mFi. Once connected, the AirPort icon will change from gray to solid black.
  • Page 16 Power Strip ™ ™ Enter your network information: a. Enter your Wi-Fi security credentials. The options that appear are based on the encryption method used on your Wi-Fi network. b. Enter the mFi Controller address. c. Enter the User Name.
  • Page 17 It may take a few moments. Reconnect to your existing wireless network by selecting the SSID from your wireless network utility. The mPower device appears with the mPower icon in the left panel under the Drag on to Map heading.

  • Page 18: Specifications

    Power Strip ™ ™ Specifications mPower Dimensions 9.5 x 4.375 x 1.625 mm Weight 790 g Mounting Wall (Kit Included) Power 125VAC, 50~60 Hz , 15 Amps Per Outlet, 15 Amps Total Outlets Memory 16 MB RAM, 8 MB Flash Wi-Fi Standards 802.11b/g/n...

  • Page 19: General Warranty

    Buyer for breach of warranty and shall constitute fulfillment of all liabilities of UBIQUITI NETWORKS with respect to the quality and performance of the Products. UBIQUITI NETWORKS reserves the right to inspect all defective Products (which must be returned by Buyer to UBIQUITI NETWORKS factory freight prepaid).

  • Page 20: Warranty Conditions

    (II) No modification, alteration or addition has been made to the Product by persons other than UBIQUITI NETWORKS or UBIQUITI NETWORK’S authorized representatives or otherwise approved by UBIQUITI NETWORKS.
  • Page 21 Compliance Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired...
  • Page 22 Power Strip ™ ™ For MPE and antenna usage details, please visit our website at www.ubnt.com/compliance Industry Canada This Class B digital apparatus complies with Canadian ICES-003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that permitted for successful communication.

  • Page 23: Declaration Of Conformity

    CE marking. Declaration of Conformity Česky [Czech] UBIQUITI NETWORKS tímto prohla uje, e tento UBIQUITI NETWORKS device, je ve shod se základními po adavky a dal ími p íslu n mi ustanoveními sm rnice 1999/5/ES.
  • Page 24 UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska [Icelandic] Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger...
  • Page 25 UBIQUITI NETWORKS device, è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski [Latvian] Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist tajiem noteikumiem.
  • Page 26 Power Strip ™ ™ mFi Products Ubiquiti Networks offers a variety of products for the mFi platform. For additional details, visit www.ubnt.com/mfi Ceiling Mount Wall Mount Temperature Motion Sensor Motion Sensor Sensor mFI-MSC mFi-MSW mFi-THS Current Sensor Door Sensor...

  • Page 28: Ubiquiti Networks Support

    Email: support@ubnt.com Phone (9 a.m. - 5 p.m. PST): 408-942-1153 Online Resources Wiki Page: wiki.ubnt.com Support Forum: forum.ubnt.com Downloads: downloads.ubnt.com w w w . u b n t . c o m © 2012 Ubiquiti Networks, Inc. All rights reserved.
