Multimedia LCD S1V

Installation Guide

Ref No. 148-1-E1-003 (GB) Version 1

Introduction

The Multimedia LCD S1V is a cost-effective colour LCD display with an easy operation interface that supports local
video playback. The slim mechanical profile is an ideal choice for use in confined spaces for simple aesthetic feel in the
buildings.
The Multimedia LCD S1V series has the following function:
+
Displays floor and travel direction of the elevator (when used with E-Motive Encoder)
+
Displays date and time
+
Displays user-defined messages/pictures slideshow at pre-defined time intervals
+
Displays video playback of .mp4 and .avi format
+
Displays in either landscape or portrait mode
+
Displays layout and content based on User Content Editing Software

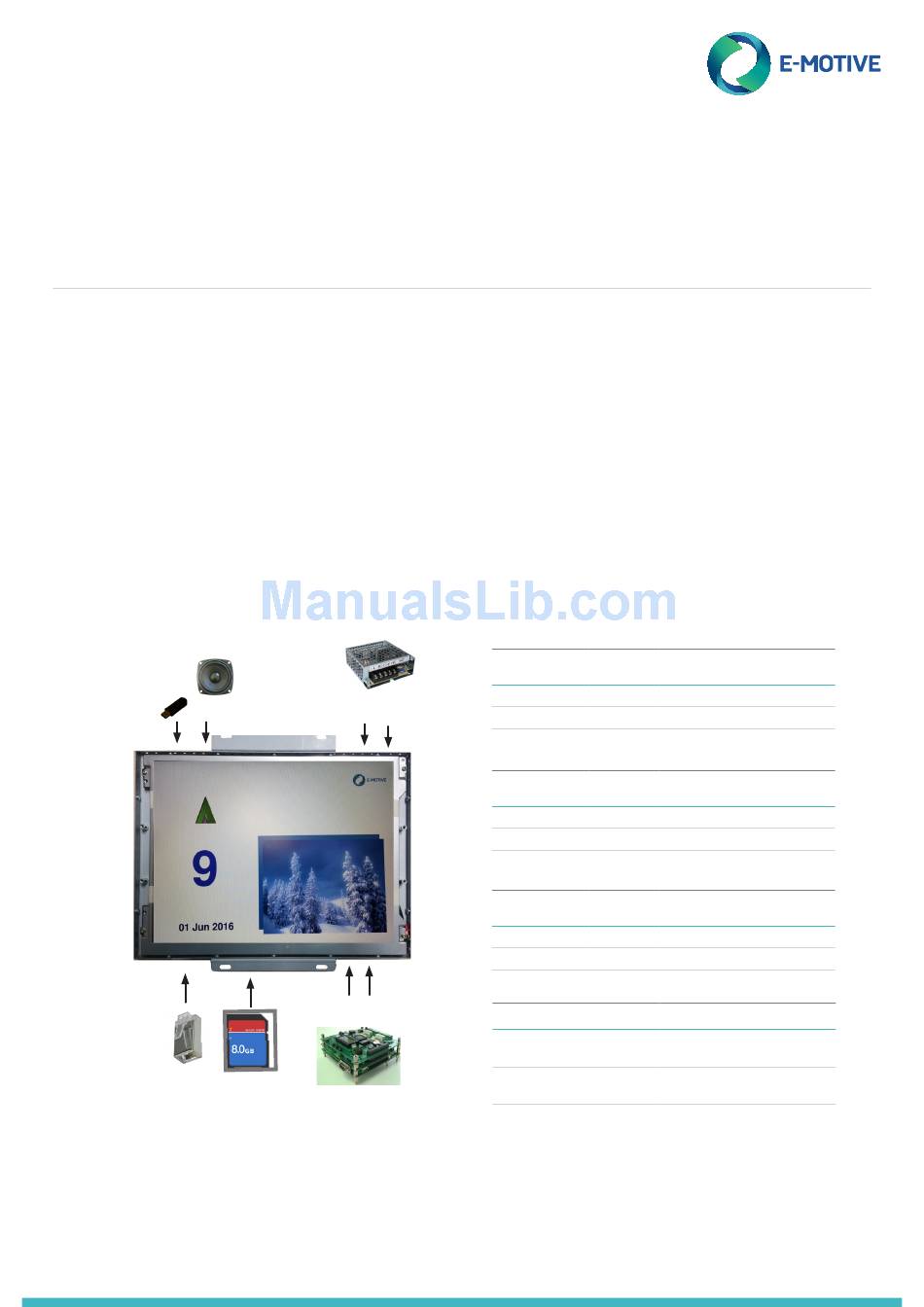

Wiring Connections:

Thumbdrive/USB
AUD-R
LAN
SDHC Card
*Accessories (USB, Encoder) sold separately
*LAN connection is used only when Network is required.
*Thumbdrive is used for content updating
*Picture used for illustration only
Note: Please also refer to the relevant accessories installation guide or wiring diagram for additional information
INPUT
+24V GND
E-Motive 4-wire
EMD
D DR
CX Encoder
*Note:
Press SW3 & SW4 together at the same time to access Mode setting
Then when SW4 is pressed, the Mode will be displayed
INPUT
Pin No.
Symbol
1
+24V
2
GND
Table 1: INPUT Power 24VDC
EMD
Pin No
Symbol
1
DR
2
D
Table 2: EMD E-Motive 4-wire Signal
AUD-R
Pin No
Symbol
1
NA
2
NA
Table 3: AUD-R Audio Signal
Switches
Symbol
Tact Switch
SW3
Tact Switch
SW4
Table 4: Tact Switches Function*
Function
Supply (+24V)
Supply Ground
Function
Data Return
Data
Function
Audio Output
Audio Output
Function
Value setting for individual
mode
Mode Select for Date/Time
setting and address setting
