Giani ValetPro VPLD-620N Instruction Manual

Double cyclone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VPLD-620N 07042017
Double Cyclone
Vacuum Cleaner
Instruction Manual
Model Ref: VPLD-620N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ValetPro VPLD-620N and is the answer not in the manual?

Questions and answers

Related Manuals for Giani ValetPro VPLD-620N

Summary of Contents for Giani ValetPro VPLD-620N

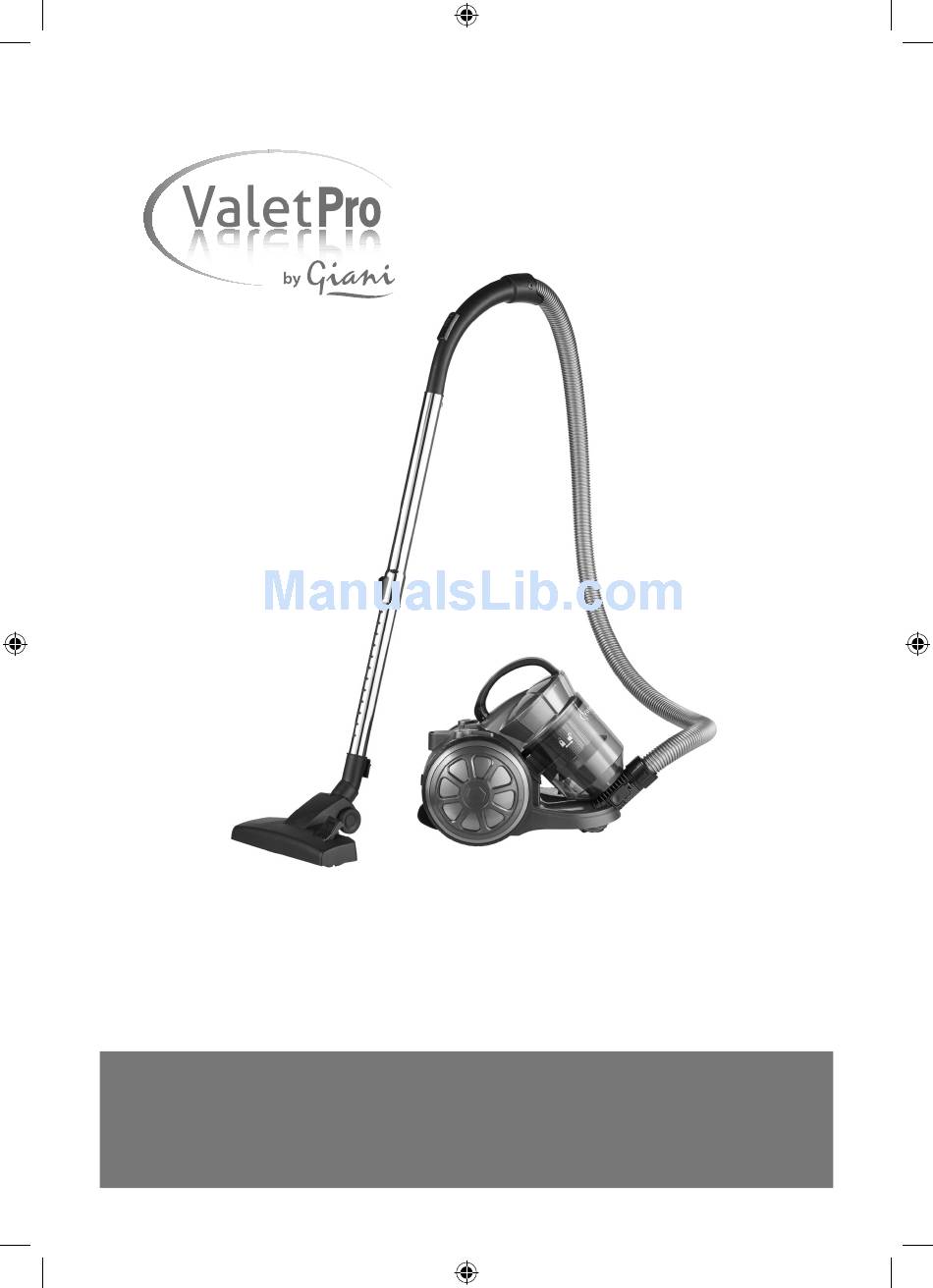

  • Page 1 VPLD-620N 07042017 Double Cyclone Vacuum Cleaner Instruction Manual Model Ref: VPLD-620N...

  • Page 2: Table Of Contents

    Thank you for choosing the ValetPro by Giani Double Cyclone Vacuum Cleaner. All products brought to you by Giani are manufactured to the highest standards of performance and safety. Before use, please read this manual carefully. It gives important instructions about safety, use and maintenance of your appliance.

  • Page 3: Important Safety Information

    Do not use outdoors or on wet surfaces. • Only use the appliance for its intended use. Giani Ltd will not accept liability if the appliance is subject to improper use or in the event of failure to comply with these instructions.
  • Page 4 - This will damage the vacuum cleaner. • Only use the attachments / accessories supplied with the product or recommended by Giani. • Do not use without the dust tank and filters in place. •...

  • Page 5: Product Overview

    Product Overview Cable retract button Dust tank Dust tank release button Hose Hose handle Airflow adjustment button Telescopic extension tube On/off button Air vent 10. Floor head brush 11. Crevice tool 12. Upholstery brush 13. Parking slot Technical Information Rated Power 700W Suction Power 190W...

  • Page 6: Before First Use

    Before First Use • Before using your vacuum cleaner for the first time, wipe all parts with a soft damp cloth Assembling Your Vacuum Cleaner DO NOT PLUG INTO THE MAINS ELECTRICITY SUPPLY UNTIL FULLY ASSEMBLED 1. Insert the hose end into the main suction hole (Fig 1).

  • Page 7: Operating Your Vacuum Cleaner

    4. Put the dust tank onto the main body and press down until you hear the ‘Click’ sound to ensure the dust tank is properly assembled into place (Fig 4). Operating Your Vacuum Cleaner 1. Attach the desired nozzle onto the vacuum cleaner 2.
  • Page 8 1. To change the floor head brush position press the button on the Carpet brush. Hard Floor Tiles ETC Floor Brush Head Adjustment 2. You can adjust the suction by Airflow Adjustment moving the airflow adjustment Button button on the hose handle (to clean curtains etc.) (Fig 8).

  • Page 9: Cleaning The Dust Tank And Net Filters

    Cleaning The Dust Tank And Net Filter 1. Press the dust tank release button (a). Remove dust tank (b) (Fig 11). 1. Unlock the dust tank and net filter by turning the cover counter clockwise (Fig 12). 2. Lift the dust tank and net filter away from the vacuum cleaner (Fig 13).

  • Page 10: Cleaning The Hepa Air Filters

    4. To maintain the performance of the vacuum cleaner we recommend to empty the dust tank regularly. Please do not allow the dust to reach beyond the MAX mark on the dust tank (Fig 15) 5. Wash the HEPA filter under running water every 8 weeks (Fig 16).

  • Page 11: Troubleshooting

    3. Wash the HEPA filter under running water every 8 weeks (Fig 19). Wait for it to completely dry before reattaching to the vacuum cleaner. To avoid damaging the HEPA filter do not brush or rub when cleaning. Troubleshooting Problems Solutions 1.Check if the plug is inserted into the socket properly.

  • Page 12: After Sales Support

    After Sales Support If you need help using your Vacuum Cleaner, please contact Giani Ltd:- • Telephone: 0161 480 6204 • Email: info@gianiuk.co.uk • Website: www.gianiuk.co.uk (Replacement instruction manuals are available to download). Product Guarantee (UK Only) If your appliance ceases to function within 1 year from the date of purchase, the retailer will replace it free of charge, provided: •...

  • Page 13: Disposal Information

    Disposal Information IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE APPLIANCE IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC At the end of its working life, the appliance must NOT be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
  • Page 14 Are you having problems with your cleaner? Do you require a replacement filter? Do you require spare parts? Before returning this item to your place of purchase Please contact Giani at: info@gianiuk.co.uk Email - www.gianiuk.co.uk Website - Giani Limited - SK2 6RH info@gianiuk.co.uk...
