Summary of Contents for ROVI CL-3033

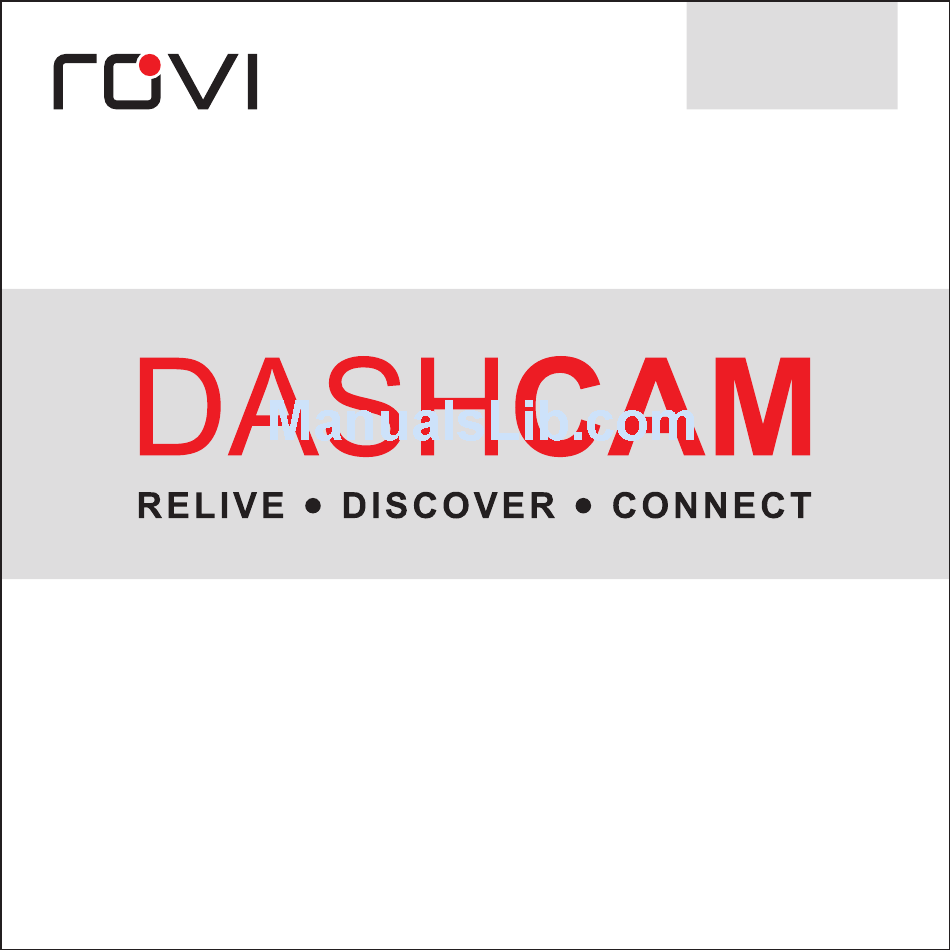

- Page 1 PLUS QUICK START GUIDE CL-3033...
- Page 2 • Do not operate or change settings on any ROVI products while driving or while the vehicle is in motion. Always practice safe, hands-free, and unobstructed driving.
- Page 3 IN THE BOX ROVI Dashcam Suction Mount USB Charge MicroSD Card USB Car Charger and Sync Cable Quick Start Guide Accessories sold separately. Available on RoviCams.com...
-
Page 4: Installation
ROVI dashcam. Push card until it locks into place. 2. Determine mounting location (See diagram for optimal placement) 3. Attach the ROVI dashcam and the mount to the windshield. 4. Connect USB power cable to the ROVI dashcam. 5. Route cable around windshield so it is not obstructing visibility. -
Page 5: Button Layout
BUTTON LAYOUT USB Power Connector 1.5” Screen Speaker Microphone Wide Angle Lens Mount Connector MicroSD Card Slot... - Page 6 Menu Menu Power on/off Down OK / Select...
-
Page 7: Button Features
BUTTON FEATURES MODE FUNCTIONS Zoom In Start Recording NOT RECORDING Menu Mode Select Zoom Out Power On/Off HOLD Zoom In Stop Recording RECORDING Lock Current Clip Zoom Out Power On/Off HOLD Previous File Play / Pause Playback PLAYBACK Menu Mode Select Next File Power On/Off HOLD... -
Page 8: Specifications
SPECIFICATIONS Lens 120° Wide Angle 1.5” TFT LCD Resolution/FPS MAX 1080p @25fps, 720p @30fps Languages English, Français (French), Español (Spanish), Português (Portuguese), Deutsch (German), Italiano (Italian), 简体中文 (Simplified Chinese), 繁體中文 (Traditional Chinese), pусский (Russian), 日本語 (Japanese), 한국어 (Korean) Battery Built-In, Rechargeable Storage MAX: 32GB micro SD (Class 10 Required) TV Standard... -
Page 9: Video Recording Settings
MENU LIST VIDEO RECORDING SETTINGS VIDEO LOOP MOTION EXPOSURE RESOLUTION RECORDING DETECTION 1080 FHD 1920x1080 + 0.0 1080p 1440x1080 1 Minute +2.0 -1/3 720p 1280x720 2 Minutes +5/3 -2/3 WVGA 848x480 3 Minutes +4/3 -1.0 VGA 640x460 +1.0 -4/3 QVGA 320x240 +2/3 -5/3 +1/3... - Page 10 G-SENSOR BUTTON RECORD AUDIO DATE STAMP SENSITIVITY SOUND SHARPNESS WHITE BALANCE COLOR Strong Auto Color Auto Normal Daylight Black & White Soft Cloudy Sepia Tungsten Fluorescent...
- Page 11 DATE EXPOSURE ANTI-SHAKING QUICK REVIEW STAMP + 0.0 +2.0 -1/3 2 Seconds Date +5/3 -2/3 5 Seconds +4/3 -1.0 +1.0 -4/3 +2/3 -5/3 +1/3 -2.0...
-
Page 12: System Settings
SYSTEM SETTINGS AUTO DATE / TIME LANGUAGES POWER OFF Manual Input English 1 Minute 繁體中文 (Traditional Chinese) Español (Spanish) 3 Minutes 简体中文 (Simplified Chinese) Français (French) Italiano (Italian) 日本語 (Japanese) pусский (Russian) Português (Portuguese) 한국어 (Korean) Deutsch (German) DEFAULT VERSION SETTINGS Restore Defaults Firmware Version... - Page 13 LIGHT SCREEN IMAGE ROTATION FORMAT FREQUENCY SAVER 50 Hz Format SD Card 60 Hz 3 Minute 5 Minutes 5 Minutes...
- Page 14 THANK YOU FOR CHOOSING ROVI. ENHANCE YOUR DRIVING EXPERIENCE. FOR IMMEDIATE HELP AND SUPPORT, AS WELL AS HOW-TO VIDEOS, PLEASE VISIT rovicams.com...
