- Page 1 PRIME QUICK START GUIDE CL-6000/6001...
- Page 2 • Do not operate or change settings on any ROVI products while driving or while the vehicle is in motion. Always practice safe, hands-free, and unobstructed driving.
- Page 3 IN THE BOX Compact ROVI Dashcam Magnetic Mount Magnetic Mount (Included with (Included with CL-6000) CL-6001) optional mount USB Charge GPS Module USB Car Charger and Sync Cable Quick Start Guide (Included with CL-6001) Accessories sold separately. Available on RoviCams.com...
- Page 4 USB car charger to the 12V socket. 4. Route cable around windshield so it is not obstructing visibility. 5. Attach the ROVI dash camera to the mount. 6. Adjust the angle of the mount for optimal viewing.

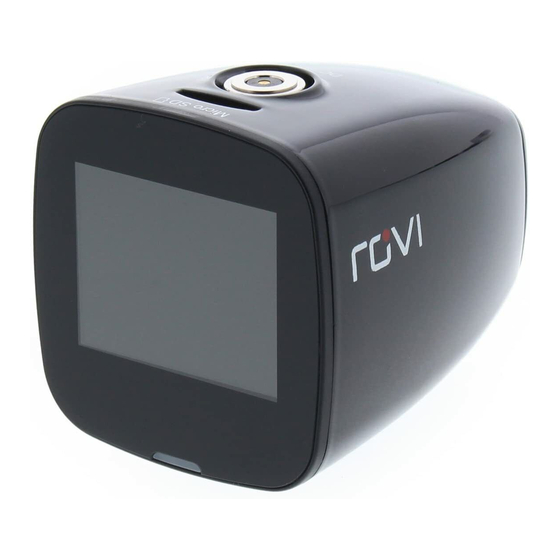

- Page 5 BUTTON LAYOUT Power / OK 1. Reset Button 6. Wide Angle Lens Menu / Mode 2. Microphone 7. Tempered Glass 3. GPS Connector 8. 1.5” Screen Down 4. MicroSD Card Slot 9. Status Light 5. Magnetic Connector...
- Page 6 BUTTON FEATURES MODE FUNCTIONS Start / Stop Recording Zoom In PRESS Flip Screen HOLD NOT RECORDING Setup Menu PRESS Mode Switch Between Zoom Out HOLD PRESS Dashcam / Photo / Playback Wi-Fi Mode HOLD Start / Stop Recording Zoom In RECORDING Protect Current Recording Zoom Out...
-
Page 7: Specifications
SPECIFICATIONS Chipsets NT96658 Sensor SONY IMX322 Lens F/2.0 150° Diagonal Viewing Angle 6 layer glass + IR Spectacles Optical coating tempered glass 1.5" 480 x 240 resolution Resolution/FPS 1080p / 30fps ,720p / 60fps Battery Built-in polymer Li-ion battery Loudspeaker 8Ω... - Page 8 1. Download ROVI app from the App AP_MODE Store (iOS) or Google Play (Android). SSID: A1WG_XXXXXXXXXXXX 2. On the ROVI dashcam, turn on Wi-Fi Mode by going into the settings menu PWD: 12345678 or holding the down arrow while please use not recording.
- Page 9 OPTIONAL ON CL-6000 GPS MODULE INSTALLATION ANGLE LOCK RELEASE BUTTON 1. Connect the GPS Module magnetic connector to the ROVI dashcam. (fig.3) fig.4 2. Attach GPS Module unit to the right side of the magnetic mount. (fig.4) GPS MODULE HERE 3.
-
Page 10: Photo Settings
MENU LIST VIDEO RECORDING SETTINGS VIDEO WIDE LOOP RECORDING EXPOSURE RESOLUTION DYNAMIC RANGE 1080 FHD 1920x1080 + 0.0 720p 1280x720 3 Minutes +2.0 -1/3 WVGA 848x480 5 Minutes +5/3 -2/3 VGA 640x460 10 Minutes +4/3 -1.0 +1.0 -4/3 +2/3 -5/3 +1/3 -2.0 PHOTO SETTINGS... - Page 11 MOTION LANE DEPARTURE RECORD AUDIO PARKING MONITOR DETECTION WARNING SYSTEM WHITE SHARPNESS COLOR EXPOSURE BALANCE Strong Auto Color Auto + 0.0 Normal Daylight Black & White +2.0 -1/3 Soft Cloudy Sepia +5/3 -2/3 Tungsten +4/3 -1.0 Fluorescent +1.0 -4/3 +2/3 -5/3 +1/3 -2.0...
- Page 12 G-SENSOR DATE STAMP SENSITIVITY High Middle ANTI-SHAKE QUICK PREVIEW DATE STAMP 2 Seconds Date 5 Seconds Date / Time...
-
Page 13: System Settings
SYSTEM SETTINGS WI-FI DATE / TIME BEEP LANGUAGES Manual Input English Français (French) Español (Spanish) Português (Portuguese) Deutsch (German) Italiano (Italian) 简体中文 (Simplified Chinese) 繁體中文 (Traditional Chinese) SCREEN LICENSE FREQUENCY SAVER PLATE pусский (Russian) 50 Hz Manual Input 日本語 (Japanese) 60 Hz 1 Minute ไทย... - Page 14 THANK YOU FOR CHOOSING ROVI. ENHANCE YOUR DRIVING EXPERIENCE. FOR IMMEDIATE HELP AND SUPPORT, AS WELL AS HOW-TO VIDEOS, PLEASE VISIT rovicams.com...
