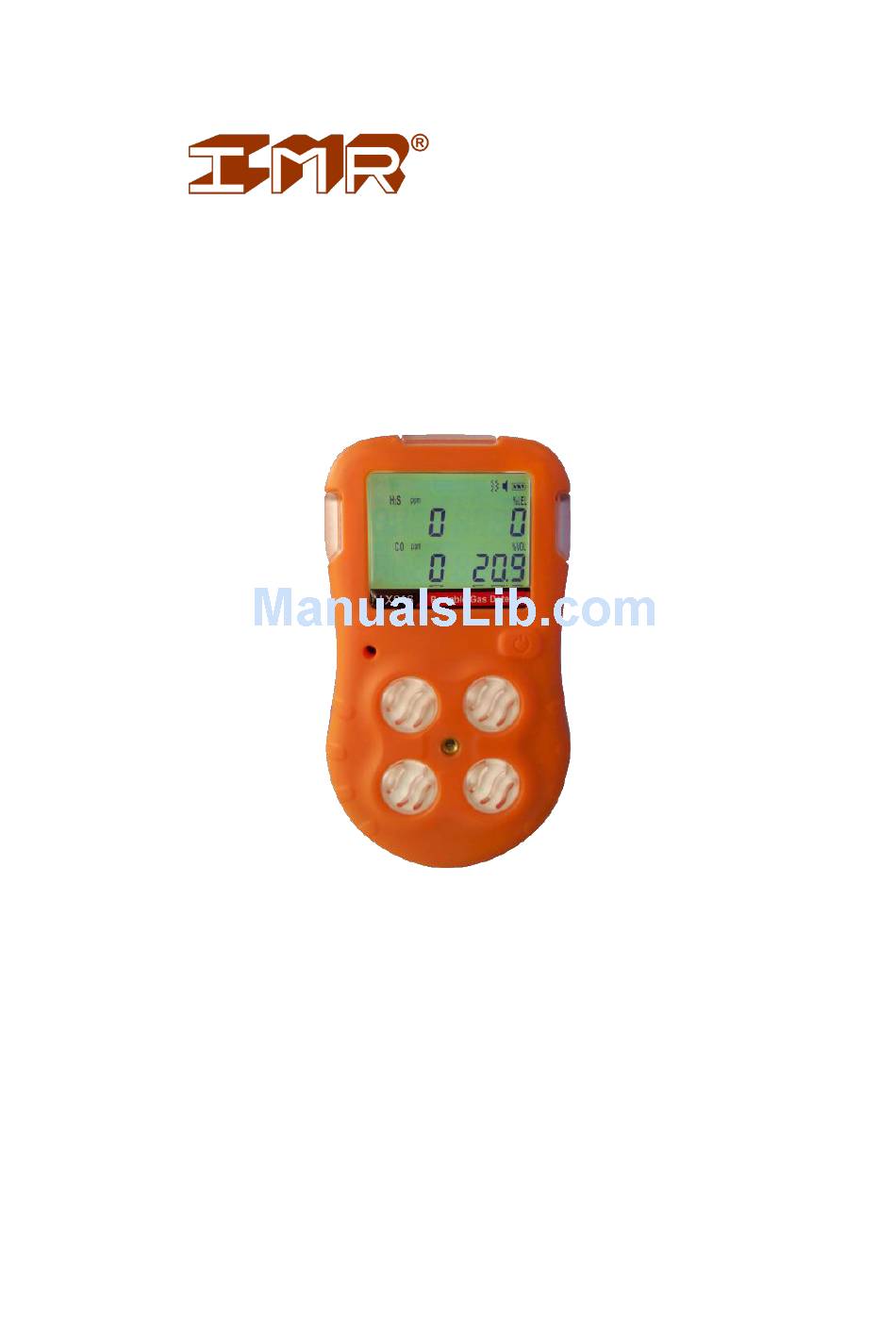

- Page 1 Environmental Equipment, Inc. IMR IX616 Portable Multi-Gas Detector User Manual Read this manual carefully before using this device. (727) 328-2818 / (800) RING-IMR • Fax: (727) 328-2826 www.imrusa.com • info@imrusa.com Ver. 1.0A4...
-
Page 2: Table Of Contents
IX616 Environmental Equipment, Inc. IMR IX616 User Manual ONTENTS Service guidelines ..........................3 Safety Information ..........................3 Brief introduction ........................... 4 Main Features and Specification ....................4 2.1. Main Features .......................... 4 2.2. Technical Specification ......................4 Structure and Function........................4 3.1. -
Page 3: Service Guidelines
2. Do not modify, repair, or replace parts in the device without contacting IMR, we assume no liability for any harm caused due to improperly modified equipment. -
Page 4: Brief Introduction
IMR IX616 User Manual Working condition: 1. B RIEF INTRODUCTION o Temperature: -20℃～50℃ The IX616 is a multi-gas detector with o Humidity: ＜95%RH (non- continuous detection of these combustible condensating) gases O2, CO and H2S gases in the air. It has ... -
Page 5: Display Information
IX616 Environmental Equipment, Inc. IMR IX616 User Manual than 20 seconds. The screen will then turn 3.2. D ISPLAY NFORMATION off and then back on. When the screen shows calibration mode release the button. Note: The initial alarming method is buzzer + flasher + vibrator. -
Page 6: Power Off
IX616 Environmental Equipment, Inc. IMR IX616 User Manual After the start up self-test has completed the device then enters into detection mode. The screen will show the concentration value of the target gases. Note: The device is set to auto zero calibration after power on. -
Page 7: Device Status
IX616 Environmental Equipment, Inc. IMR IX616 User Manual 2. Sensors warming up 4.4. D EVICE TATUS In detection mode press the button once and the screen will show the device status including max value, min. value, STEL value, TWA value, current time, serial number and version number. -
Page 8: Bump Test
1. When charging the device while powered 4.6. B off. It cannot be powered on and used to In order to make sure the IX616 is working detect. correctly it is suggested to do a “bump test” 2. It is hazardous to charge the device on site. -
Page 9: Trouble Shooting Guide
For any usage or trouble shooting not Sensor Sensor fault Contact IMR fault covered in this manual contact IMR. Disassembly, modification and repair of displayed on the the device should be carried out by screen authorized personnel only. -
Page 10: Sensor Table
IX616 Environmental Equipment, Inc. IMR IX616 User Manual ENSOR ABLE Detection Preset Preset STEL Range Low Alarm High Alarm ／ ／ 0-30%vol 19.5%vol 23.5%vol 0-100ppm 10ppml 15ppml 10ppml 15ppml 0-1000ppm 35ppml 200ppml 35ppml 200ppml ／ ／ 0-100%LEL 20%LEL 50%LEL 3632 Central Ave. St. Petersburg, FL 33711 Phone: 727-328-2818 / 800-RING-IMR www.imrusa.com... -
Page 11: Warranty
IMR unit to the customer. 3. The IMR warranty shall refer to absence of faults with respect to the state of the art nature of the sold unit in terms of material and finish. The warranty for all parts fitted during the twelve-month warranty period shall end with the unit warranty. -
Page 12: Contact Information
Internet: www.imrusa.com Email: info@imrusa.com sales@imrusa.com technical_department@imrusa.com IMR® is a registered Trademark of IMR® Environmental Equipment, Inc. 3632 Central Ave. St. Petersburg, FL 33711 Phone: 727-328-2818 / 800-RING-IMR www.imrusa.com Fax: 727-328-2826 info@imrusa.com THE PRIDE OF THE COMPANY – MADE IN THE USA...
