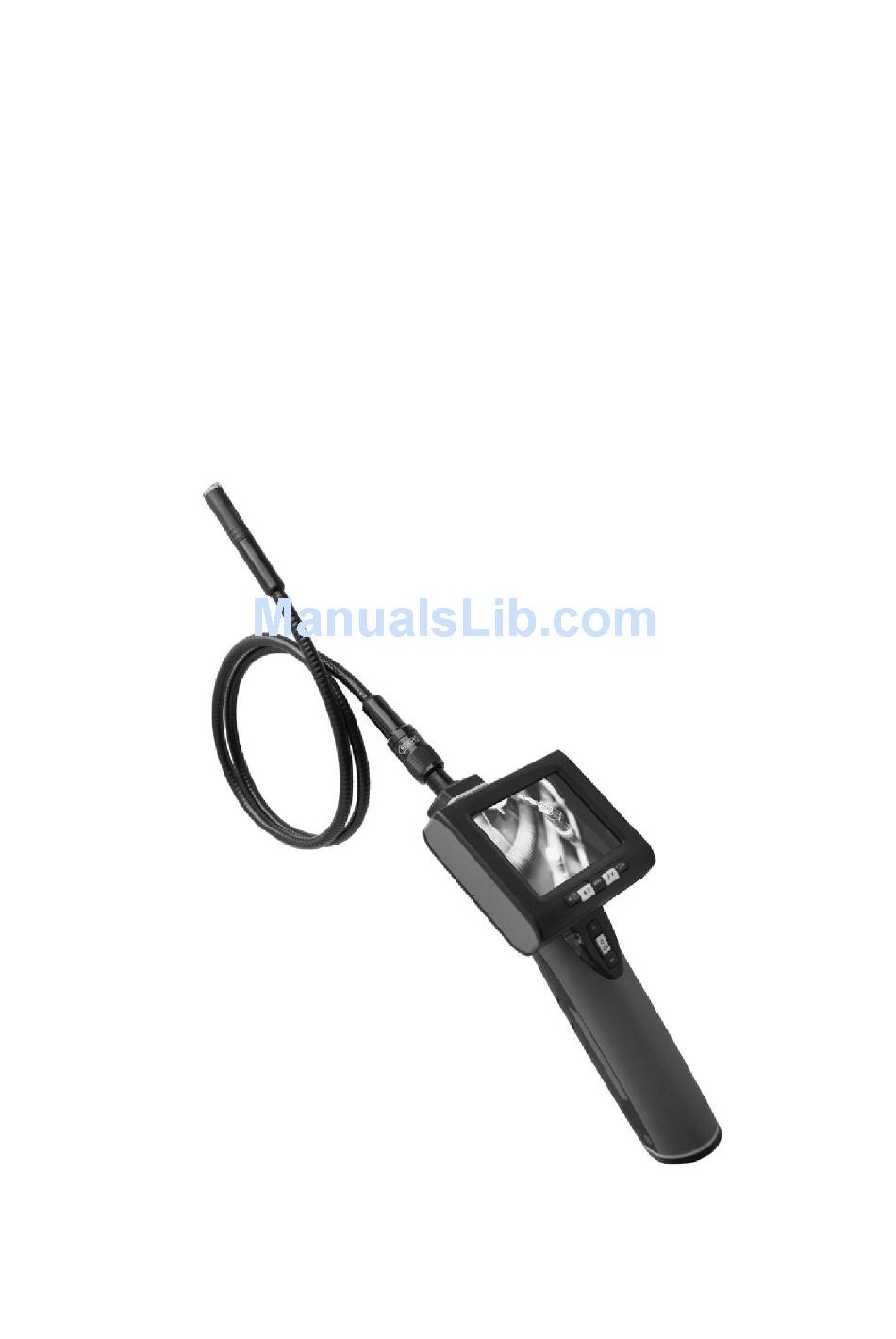

- Page 1 Multifunction Video Inspection Model: KC-368B Operation Manual 130903 V1.1...
-
Page 2: Safety Instructions
90 ° angle. The hook is used to grab onto objects. KC-368B can take a photo wirelessly .It has built-in polymer lithium battery, also could use AC adapter for charging with LED indicator. The screen can detach from grip, the back inside magnet facilitate hands-free operation ,having functions of Micro SD interface、TV output interface、USB interface, supporting camera、... -
Page 3: Battery Precautions
●The unit is not shock-resistant. Do not use it as a hammer or drop it. Battery precautions ● Please use the standard factory power adapter, otherwise will destroy the inside battery. ● Please completely exhaust the power for the first time. And we recommend full charging and full discharging for the first three times. -
Page 4: Product Overview
7．DC adapter 8．One into two cable 9．Micro SD memory card 10．Micro SD to SD transition pocket 11．TV cable 12．USB cable Product overview A．Camera protection B．Camera head C．Probe D．Probe connector E．Channel indication（green）——the flash times corresponding CH1～CH4 F． ——LED brightness decrease key G．... - Page 5 X． Y．Lock buckle Z．Signal connection slot Description for keys Keys View mode Playback mode Menu set Switch into playback Switch into view mode; Hold for 3s Hold for 3s to turn off the mode; Hold for 3s to to turn off the unit. unit.
- Page 6 followed to connect. As showed in Fig 8, hold the camera head .Slip the semicircle end of the accessory over the flats of camera head . Then rotate the accessory 90°to fix ,as shown in Fig9. Accessories installation for Φ9mm and Φ5.5mm camera head B、...
- Page 7 displays ”MSDC” , now the screen can be used as U-disk. Video output ● If you want to view image from television, please connect the VIDIO OUT of screen to VIDEO IN of television by video out cable, now the screen is off. How to work ●...
- Page 8 Tips：When the system is on work ( especially in video status), Hot－Swappable of SD card will damage the stored files or damage SD card, please carefully operate. 3、How to set screen Menu a、In view status, press MENU to set menu. b、Select the menus by pressing the four direction keys.
-
Page 9: Operation Notes
●Operation Precautions: a、Please read the safety instructions carefully, choose desirable work area for fear causing danger. b、The probe is flexible to help you operate in hard-to–reach areas. Please don’t insert or bend by force.. Please do not over bend any part of the probe. Normally, the bending radius should more than 5cm to prevent from causing permanent damage to the probe. -
Page 10: Maintenance Instructions
●Use only accessories that are recommended by the manufacturer for your product. Accessories are suitable for the tool, but may become hazardous when used on another product. ●Dry your hands before turning the tool ON or OFF. ● Protect against excessive heat. The product should be kept away from heat sources, such as radiators、heat registers、stoves or other products (including amplifiers) that produce heat. -
Page 11: Technical Specification
● ● Please charge the inside battery every three month if no use for long time. Technical Specification Name Multifunction video inspection Model KC-368B Recommended use Indoor Viewable angle 60° 50mm and 50cm for your choice 12mm standard Focal length... -
Page 12: Warranty
1m/2m/3m or customized (max length 5m including 9mm camera extension) 5.5mm camera 1m/2m/3m or customized (max length 15m including extension) Extension for choice 1m, 2m, 3m Image display 3.5″TFT/LCD Image storage media Micro SD card (Support up to 16G） Image resolution 640×480 pixels LCD Resolution 320×240 pixels...
