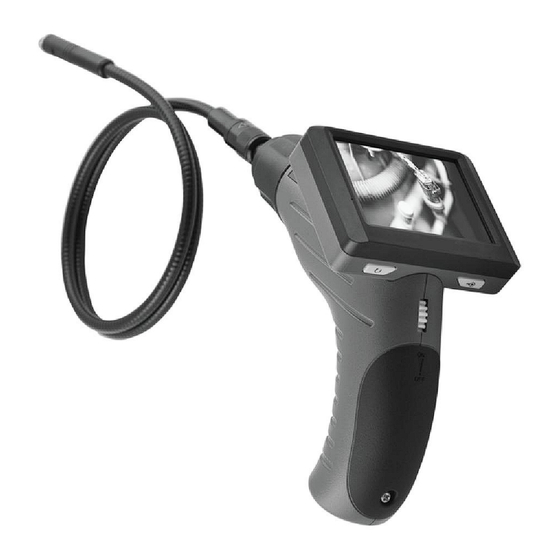

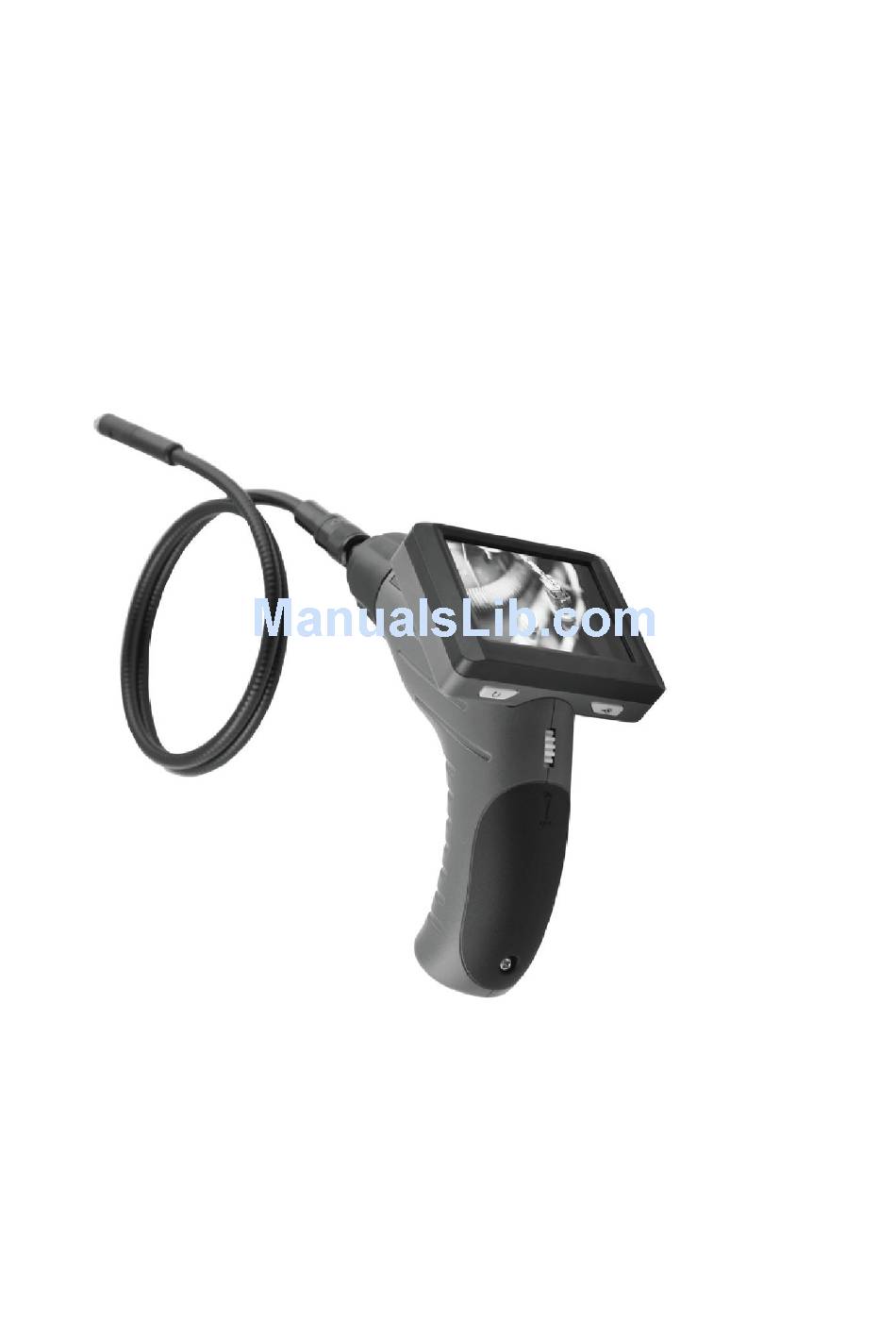

- Page 1 Video Inspection Model: KC-360B-2 Operation Manual...
-
Page 2: Safety Instructions
Video Inspection Overview KC-360B-2 Video inspection has been designed as a user friendly and economical way of solving hidden problems and increasing productivity. (e.g. Inspect vent pipe and system of air conditioner, machine equipment, engine and so on).It’s easy for you to make fast diagnosis of equipment, welding, loose parts etc, which can help you to trouble shootting, save the cost, improve the efficiency of your work. -
Page 3: Battery Precautions
●The unit is not shock-resistant. Do not use it as a hammer or drop it. Battery precautions ● Remove the battery before clean the device. ● Remove the battery before long term storage. ● Insert the battery properly by matching the positive and negative charges ●... - Page 4 B．camera head C．Probe D．probe connector E．LCD screen F． button——image rotation G．on/off switch, LED brightness adjustment H．battery compartment I． button——zoom Operation Instructions ● Battery installation 1、Use a screwdriver to open the battery compartment.(as shown in Fig.4) 2、Insert one 9V alkaline battery(6LR61), close the lid and fasten the screw.(as shown in Fig.5) ●...
- Page 5 B、9mm and 5.5mm probe accessories installation (for selection) Accessories for 9mm probe is shown in Fig.10, while accessories for 5.5mm probe is shown in Fig. 11. Accessories and camera head are connected using threaded connection. Put on the screw thread protector when no accessories installed to avoid damage to the thread in daily use.
- Page 6 b) The probe is flexible, which helps you to get to hard-to-reach areas. Please don’t insert or bend the camera probe by force. Please do not over bend the probe (normally, the bending radius should more than 5cm), so as not to cause permanent damage to the probe. c) Don’t use the probe or camera head to remove barricades, clear pathways or clogged areas.
-
Page 7: Maintenance Instructions
caused by poorly maintained tool. Use only accessories that are recommended by the manufacturer for your tool. Accessories are suitable for the tool, but may become hazardous when used on another tool. Dry your hands before turning the tool ON or OFF and before replacing battery. ... -
Page 8: Technical Specifications
Don’t immerse the product into water, which will result in damage to product. Please take out the battery, if it is not for use for long time. Technical Specifications Name Video inspection Model KC-360B-2 (3.5’’ LCD screen) Recommended usage Indoor Viewable angle 60 degrees 12mm lens 50mm、50cm for your choice... -
Page 9: Warranty
Light source Ultra high brightness LED Power supply One 9V alkaline battery（6LR61） Battery life Over 2hours Working temperature 0℃～45℃ Working moisture 5%～95%RH non-condensing Storage -20℃～+60℃，≤85%（w/o battery） Dimension of device 215mm×156mm×96mm Weight About 256g（w/o battery and probe） Warranty The product is warranted to be free from defects in materials and workmanship for a period of one year from the date of purchase.
