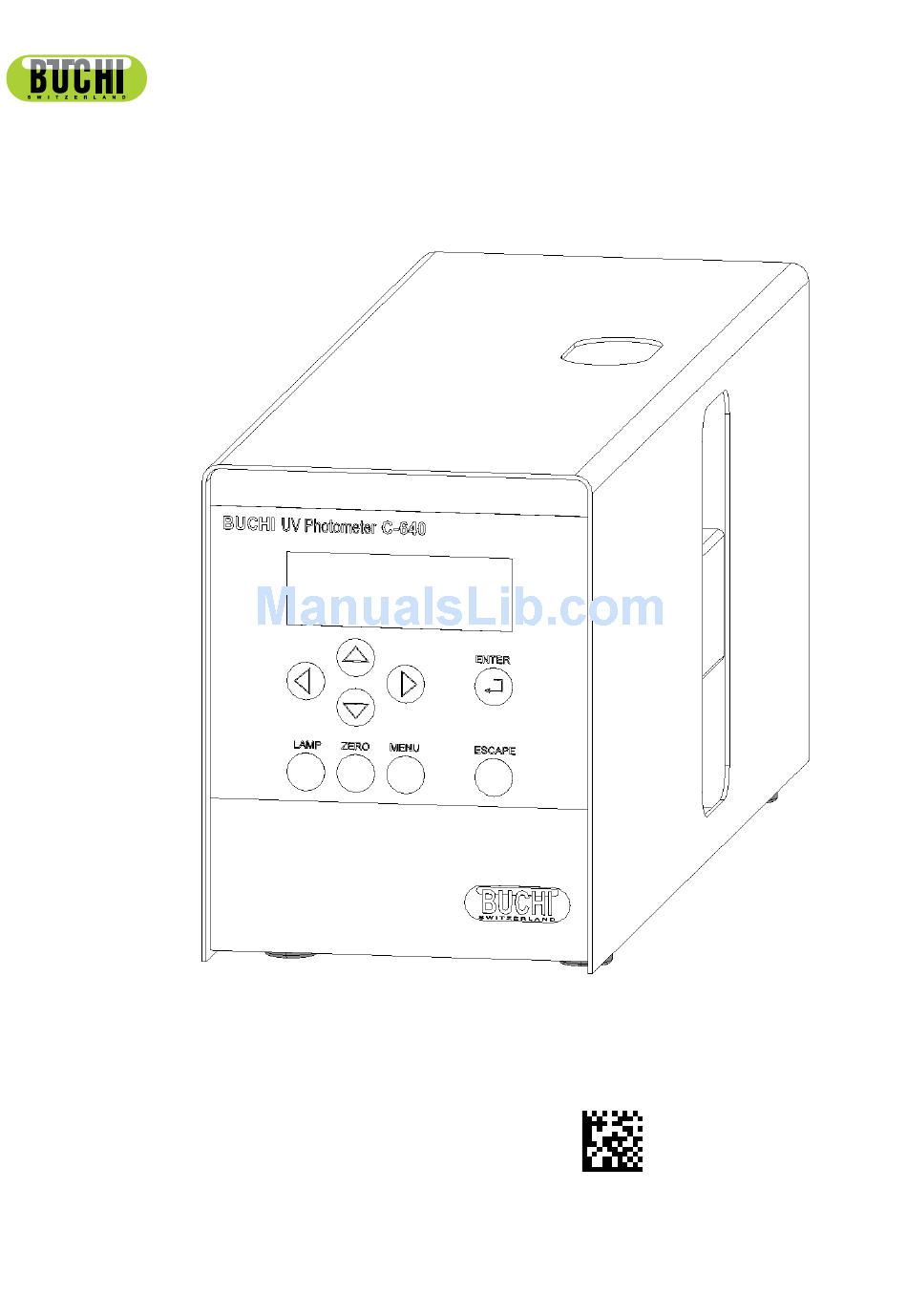

- Page 1 UV-Vis Detector C-640 Operation Manual 11593492C en...
- Page 2 E-Mail: quality@buchi.com BUCHI reserves the right to make changes to the manual as deemed necessary in the light of experience; espe- cially in respect to structure, illustrations and technical detail. This manual is copyright. Information from it may not be reproduced, distributed, or used for competitive purpos- es, nor made available to third parties.
-
Page 3: Table Of Contents
No technical modifications may be made to the instrument without the prior written agreement of BUCHI. Unauthorized modifications may affect the system safety or result in accidents. This manual is copyright. Information from it may not be reproduced, distributed, or used for competi- tive purposes, nor made available to third parties. - Page 4 Installation site........23 Installing the Detector C-640 ......24 5.2.1...
-
Page 5: About This Manual
1 About this manual About this manual This manual describes the UV-VIS Detector C-640. It provides all information required for its safe operation and to maintain it in good working order. It is addressed to laboratory personnel in particular. Abbreviations... -
Page 6: Safety
The communication between the C-620 control unit and the SepacoreControl software is done via a serial RS232 cable (contained in the standard equipment). If the C-640 detector shall be used without the C-620 control unit, it can be connected directly to the C-660 fraction collector using the cinch cable. -
Page 7: Safety Warnings And Safety Signals Used In This Manual
List of measures to avoid the herein described, hazard or hazardous situation. safety • information • symbols Table of supplementary safety information symbols The below reference list incorporates all safety information symbols used in this manual and their meaning. Symbol Meaning General warning Electrical hazard C-640 Operation Manual, Version C... - Page 8 Paragraphs starting with NOTE transport helpful information for working with the device / software or its supplementaries. NOTEs are not related to any kind of hazard or damage (see example below). NOTE Useful tips for the easy operation of the instrument / software. C-640 Operation Manual, Version C...
-
Page 9: Product Safety
Do not spill liquids over the instrument or parts of it. • Wipe off any liquids instantly. • Do not move the instrument when it is in use. • Keep external vibrations away from the instrument. C-640 Operation Manual, Version C... -
Page 10: Safety Measures
Modifications to the instrument are only permitted after prior consultation with and with the written approval of the manufacturer. Modifications and upgrades shall only be carried out by an authorized BUCHI technical engineer. The manufacturer will decline any claim resulting from unauthorized modifi- cations. -
Page 11: Technical Data
3 .1 Scope of application and delivery The UV-VIS Detector C-640 is available as powerful detector for the Sepacore system. It can be used in conjunction with the SepacoreControl software, connected to the C-620 control unit or without the use of the software, connected to the C-660 fraction collector. -
Page 12: Standard Equipment
Each part listed with an order number can be ordered separately as spare part. Table 3-2: Standard equipment Product Order no. UV-VIS detector unit C-640 Preparative flow cell for C-640 11057949 Fitting and ferrule 1/8” (2 pcs. each) 044261 Fitting and ferrule 1/16” (2 pcs. each) -
Page 13: Recommended Spare Parts
FEP tube inner diameter 1/32”, outer 044357 diameter 1/16” Test cell for preparative cell Cinch cable (2 pcs.) 045216 For connecting the C-640 directly to the C-660 fraction collector without using the SepacoreControl software. Power cord RS232 cable 3 .2... -
Page 14: Technical Specifications
80% for temperatures up to 31 °C, linearly decreasing to 50% at 40 °C Table 3-5: Material and Approvals Materials in contact with mobile phase PTFE / fused silica / stainless steel Approvals CE, CSA C-640 Operation Manual, Version C... -
Page 15: Configuration Of The Analog Cinch Output
3 .5 .1 Deuterium lamp The primary light source of the detector C-640 is a deuterium lamp with an average lifespan of about 1000 operating hours. A lamp test can be performed across the whole range of the detectable spectrum (Scan) or on the four selected wavelengths of the detection channels (A–D) only. -
Page 16: Signals And Parameters
3 .6 .2 Range of wavelength The wavelength range of the detector C-640 depends on the assembly of the optical parts, the calibration results and the number of elements of the CCD sensor that are used at the same time for processing (“electronic half width of wavelength”) -
Page 17: Scanning
- instead the last values from the time before the scan started will be passed on till the scan is finished. Note The scanning functionality is only available if the detector is controlled by the SepacoreControl soft- ware. C-640 Operation Manual, Version C... -
Page 18: Description Of Function
4 Description of function Description of function This chapter explains the basic working principle of the UV-VIS Detector C-640. It also shows how the instrument is structured and provides a general functional description of its assembly. 4 .1 Front panel of the instrument The front panel of the instrument consists of nine push buttons , two LED indicators b the ON /... -
Page 19: Icons On The Graphical Display
• a Main power connector with integrated fuse (T 2.5 A) • b RS 232 connector for connection to the C-620 control unit • 4 cinch connectors for analog connection to fraction collector Figure 4-2: Rear panel of the instrument C-640 Operation Manual, Version C... -
Page 20: The Cell Compartment
The cell compartment The cell compartment is located on the right side of the instrument: Figure 4-3: Cell compartment of the C-640 The cell itself is accessible from the right side of the instrument by opening the shutter which at the same time functions as a quick clamping lever for holding the cell in place within the optical path. -
Page 21: Removing The Cell
- Press with one finger against the metal bar at the inside of the shutter to set the cell free. - The cell is released and can be taken away from the cell compartment. Figure 4-4: Removing the cell from the cell compartment C-640 Operation Manual, Version C... -
Page 22: Mounting The Cell
- Enter the cell to the cell compartment, slide it onto the groove on the left side of the compartment and hold it on place with two fingers. - Carefully close the shutter, observing the cell to be clamped properly. Figure 4-5: Mounting the cell C-640 Operation Manual, Version C... -
Page 23: Putting Into Operation
Clean the instrument and all accessories thoroughly to remove possibly dangerous substances. • Do not clean dusty parts with compressed air. • Store the instrument and its accessories at a dry place in its original packaging. C-640 Operation Manual, Version C... -
Page 24: Installing The Detector C-640
5 .2 .2 Connecting the communication cable • Connect the C-640 detector to the C-620 control unit using the RS 232 cable included in the stan- dard delivery of the instrument. NOTE If the detector shall not be controlled by the SepacoreControl software, connect up to two of the four analog outputs (A , B, C , or D) to the C-660 fraction collector using the cinch cable (045216). -
Page 25: Connecting The Tubing
(the tip of the ferrule has to point to the thread of the fitting). The tip of the tube should not overlap the ferrule too much. Figure 5-1: Attaching the bolted fittings to the tubing C-640 Operation Manual, Version C... -
Page 26: Starting The Detector
• In order to remove potential bubbles, we recommend to connect a back pressure regulator (044337) at the outlet of the flow cell. • The instrument is now ready for operation. C-640 Operation Manual, Version C... -
Page 27: Controlling The Detector
All parameters of the detector can be adapted in a corresponding submenu. The menu can be entered by pressing the MENU button from any main screen. Pressing MENU again will switch to the next parameter screen. Using the buttons LEFT and RIGHT it is possible to navigate through all sub C-640 Operation Manual, Version C... -
Page 28: The Start Up Screens
For more information about the parameters refer to the chapter 3.6 “Signals and parameters”. 5 .5 .1 Wavelength Within this menu the wavelength for all available chan- nels can be set. See also chapter 3.6.2 “Range of wavelength”. C-640 Operation Manual, Version C... -
Page 29: Time Constant
(1V) can be set. See also chapter 3.6.5 “Analog range ratio”. 5 .5 .5 Display brightness Within this menu the brightness of the graphical display can be adapted. See also chapter 3.6.6 “Display brightness”. C-640 Operation Manual, Version C... -
Page 30: Getting Information And Scanning
ZERO. Follow the instructions given on the display. Set the Wavelength (WL) and press ENTER. Follow the instructions given on the display. Press DOWN to perform a standard calibration. Follow the instructions given on the display. C-640 Operation Manual, Version C... -
Page 31: Errors
In addition to the speaking error description, error codes in form of hexadecimal numbers ending with the letter “h” are displayed. Two different kinds of error screens can be displayed: Error screen for a hardware failure. Error screen for an internal error. C-640 Operation Manual, Version C... -
Page 32: Maintenance And Repairs
Such training and knowledge can only be provided by BUCHI. Addresses of official BUCHI customer service offices are given on the BUCHI website under: www.buchi.com. -
Page 33: Cleaning The Cell Window
If the system is tight perform a cell test. If this simple cleaning procedure did not solve the problem, contact the BUCHI service support or replace the cell windows. 6 .3 .2... - Page 34 Before installing the reassembled cell to the cell compartment carefully check the cell for any impurities (dust, hairs) using a magnifier. (Any impurity within the cell will increase the signal noise.) After installing the cell into the cell compartment perform a leakage test. C-640 Operation Manual, Version C...
-
Page 35: Replacement Of The Deuterium Lamp
Note Remove the green grounding cable a from its contact on the inner side of the housing before you take the housing completely away from the instrument. C-640 Operation Manual, Version C... - Page 36 After correct assembly of the replacement lamp don’t forget to reattach the grounding cable to the housing and make sure no cable extends to one of the fan housings on the back side of the instrument before fixing the housing. C-640 Operation Manual, Version C...
-
Page 37: Troubleshooting
Non-volatile memory failure! Call service center. Digital-analog converter failure! Call service center. Display failure! Call service center. Detector communication failure! Call service center. Detector communication timeout! Call service center. Interface device failure! Call service center. C-640 Operation Manual, Version C... -
Page 38: Hardware Error Codes
In case an error code is displayed and the problem cannot be solved by switching the instrument off and on again, please note down the 8 digit error code ending with “h” and contact the service center. C-640 Operation Manual, Version C... -
Page 39: Shutdown, Storage, Transport And Disposal
Store the instrument and its accessories at a dry place in its original packaging. 8 .2 Disposal You have to follow valid regional and local laws concerning disposal. For help, please contact your local authorities! C-640 Operation Manual, Version C... -
Page 40: Declarations And Requirements
L’utilisation de cet appareil dans les zones résidentielles peut causer des interférences néfastes, auquel cas l’exploitant sera amené à prendre les dispositions utiles pour palier aux interférences à ses propres frais. C-640 Operation Manual, Version C... - Page 42 T +55 19 3849 1201 F +66 2 862 08 54 F +971 4 313 2861 F +55 19 3849 2907 bacc@buchi.com middleeast@buchi.com latinoamerica@buchi.com www.buchi.com www.buchi.com www.buchi.com We are represented by more than 100 distribution partners worldwide. Find your local representative at: www.buchi.com...
