Brink Pure induct Installation Instructions Manual
Heat recovery appliance
Hide thumbs
Also See for Pure induct:
- Operation manual (8 pages) ,
- Installation regulations (17 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Brink Pure induct
Summary of Contents for Brink Pure induct

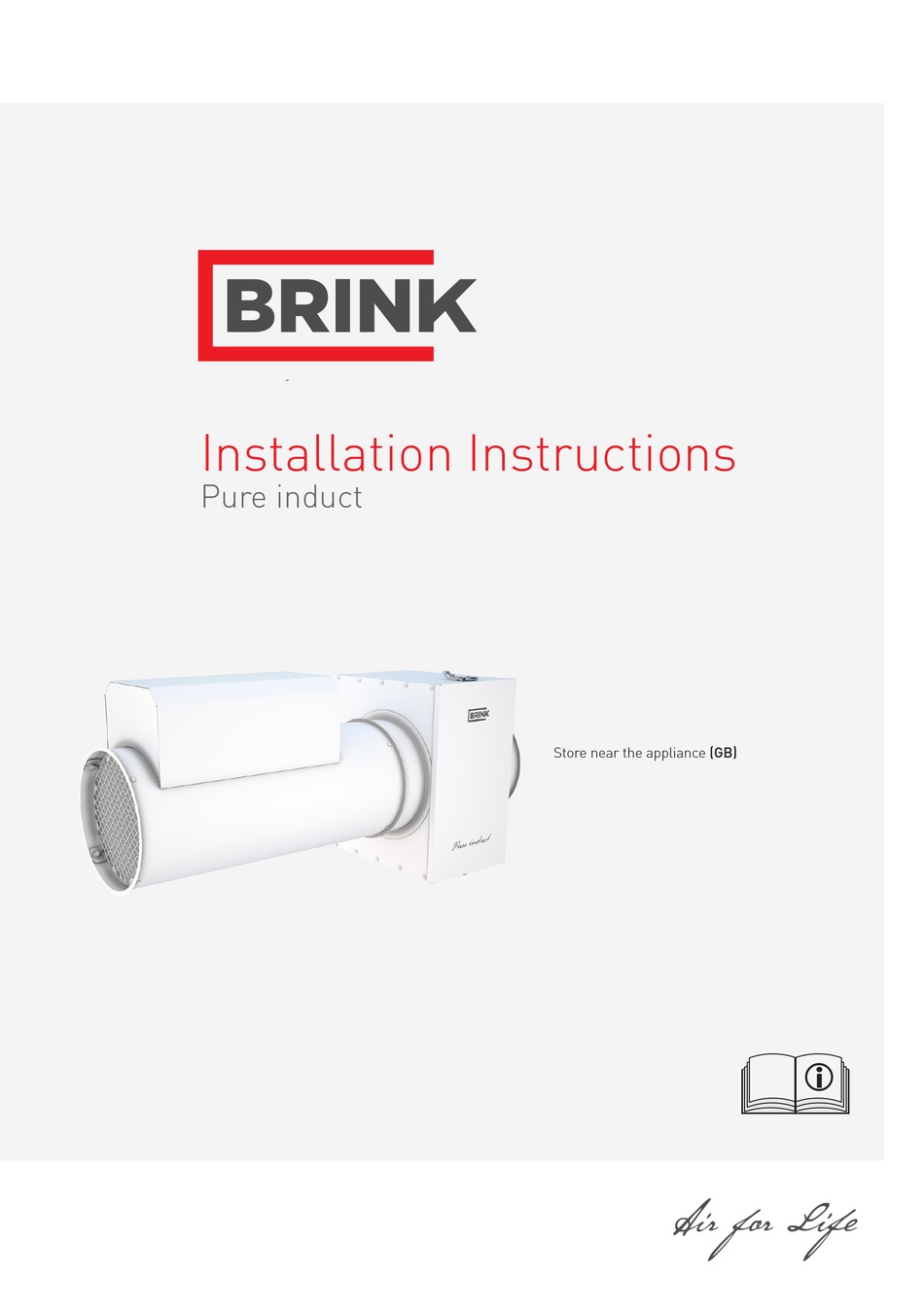

- Page 1 Installation Instructions Pure induct Store near the appliance (GB) ...
- Page 2 Installation instructions Heat recovery appliance Heat recovery appliance Renovent Excellent 300/400 (Plus) Pure induct STORE NEAR THE APPLIANCE STORE NEAR THE APPLIANCE This appliance can be used by children aged from 8 years and above and persons with reduced physical,...
- Page 3 Manual English manual page 4-21 Pure induct Pure induct BRINK / 3 BRINK / 3...
- Page 4 Especially ultrafine dust can penetrate the lungs to get into the bloodstream. Brink Pure induct air purification systems do not use fibre filters, as these form a breeding ground for microbes. Instead, Brink uses collectors which prevent microbial growth.
-
Page 5: Table Of Contents
4.2 Installing the Pure induct 5. Use 5.1 Before first use/Changing the collectors 5.2 Checking the collectors for saturation 5.3 Setting the Pure induct to ‘ON’ mode from ‘OFF’ mode 5.4 Maintenance 6. Troubleshooting 7. Declaration of conformity Pure induct... -
Page 6: Important Instructions
Receiving your order • After receiving your order, check for visible damage (such as transport). • Contact Brink directly after detecting defects or damage. Do not use the product if it is damaged. Installation • To ensure the safe functioning of the appliance, the appliance must be installed and connected by qualified personnel. -
Page 7: Symbol Glossary
2014/35/EG and 2014/30/EG. 1.3 Warranty We cover the Pure induct air cleaning system with a one (1) year limited warranty. If, within one year from the original purchase date by the end-user from the authorized dealer, this air cleaner or any part thereof (with the exception of collectors) is proven to be defective by reason only of faulty workmanship or materials, Brink will, at their consideration, repair or replace the faulty air cleaner or part free of charge for labour and materials. -
Page 8: Technical Specifications
Operation conditions conditions of 0 to 50 °C with a relative humidity of 0 to 90%. Control Manual (on/off) 3 Flange clamps, 1 Pure induct collector box, Pure Including induct collector, 2 connection pieces Excluding 2 Mounting brackets, 2x mounting material,... -
Page 9: Functional Overview
The Pure induct fits into any HVAC system, before or after the air handling unit. Once the appliance is installed and turned on, it will purify the air in your ducts. The low pressure drop of the Pure induct system makes it possible for your HVAC system to operate at a low speed, reducing energy costs. -
Page 10: Parts
3. Functional overview 3.2 Parts Pure induct [0] indicator light [1] main switch typerating- [2] power plate cord control box [3] electrostatic section [4] [5] protection grid Pure induct collector box collecting unit lid collecting unit locks Pure induct... - Page 11 5. Use. Pure induct ACF Placing a Pure induct ACF in addition to the standard collector will allow the collector unit to also remove gasses and smells released by traffic, tobacco smoke and ozone (from the outside air).
-
Page 12: Installation
These can be ordered at Brink. • The direction of the air flow in the ventilation system to the Pure induct should occur as displayed above by the air flow direction indicator. •... -
Page 13: Installing The Pure Induct
• Make sure the Pure induct is installed in the correct direction. The air should flow in the same direction as the air flow direction indicator on the air purifier. •... - Page 14 4. Installation Installation examples In the image below you can find examples how to connect the Pure induct to different ventilation ducts. The use of flange clamps to attach the Pure induct to the ventilation system allows for easier removal in case of cleaning or maintenance of the Pure induct.
- Page 15 • Follow the steps mentioned in “5.1 Before first use/Changing the collectors”. Connect the Pure induct to a grounded power outlet and turn on the appliance using the control box. During the first three days of use, the appliance may produce a slight hissing sound.
-
Page 16: Use
Used collectors, including ACF’s, can be disposed in your residential waste bin. Brink suggests placing used filters in the package of the new filters before disposing. Flip the main switch back to position 1 to turn ON the Pure induct. Allow the unit to start running. -
Page 17: Setting The Pure Induct To 'On' Mode From 'Off' Mode
To ensure the optimal operating of your appliance, we advise to schedule a professional maintenance appointment, depending on your pollution degree, at least every two years. Contact your dealer or Brink to schedule a maintenance appointment. Pure induct BRINK / 17... -
Page 18: Troubleshooting
6. Troubleshooting If the Pure induct is not functioning up to standards, the list of possible problems below can help diagnose and solve the problem. What does the indication light [0.] indicate? • The indication light will show the operation of the appliance. -
Page 19: Declaration Of Conformity
7. Declaration of conformity Manufacturer: Brink Climate Systems B.V. Address: Postbus 11 NL-7950 AA Staphorst, The Nederlands Product: Pure induct The product described above complies with the following directives: - 2014/35/EU (low volage directive) - 2014/30/EU (EMC directive) - RoHS 2011/65/EU (substance directive) - Page 20 BRINK CLIMATE SYSTEMS B.V. E info @ brinkclimatesystems.com P.O. BOX 11 NL-7950 AA STAPHORST www.BRINKclimatesystems.com T + 31 (0) 522 46 99 44 www.BRINKairforlife.com...
