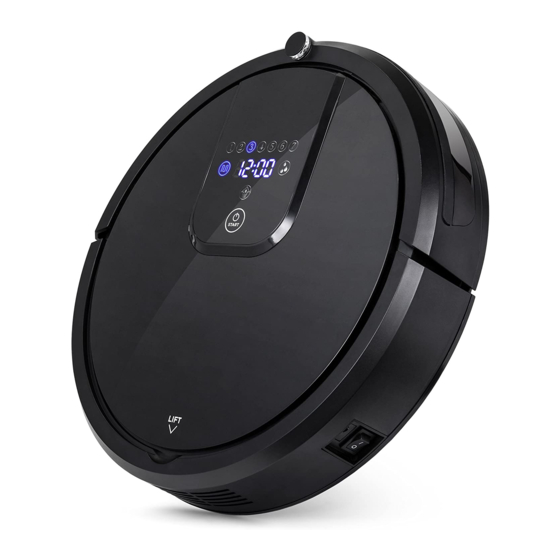

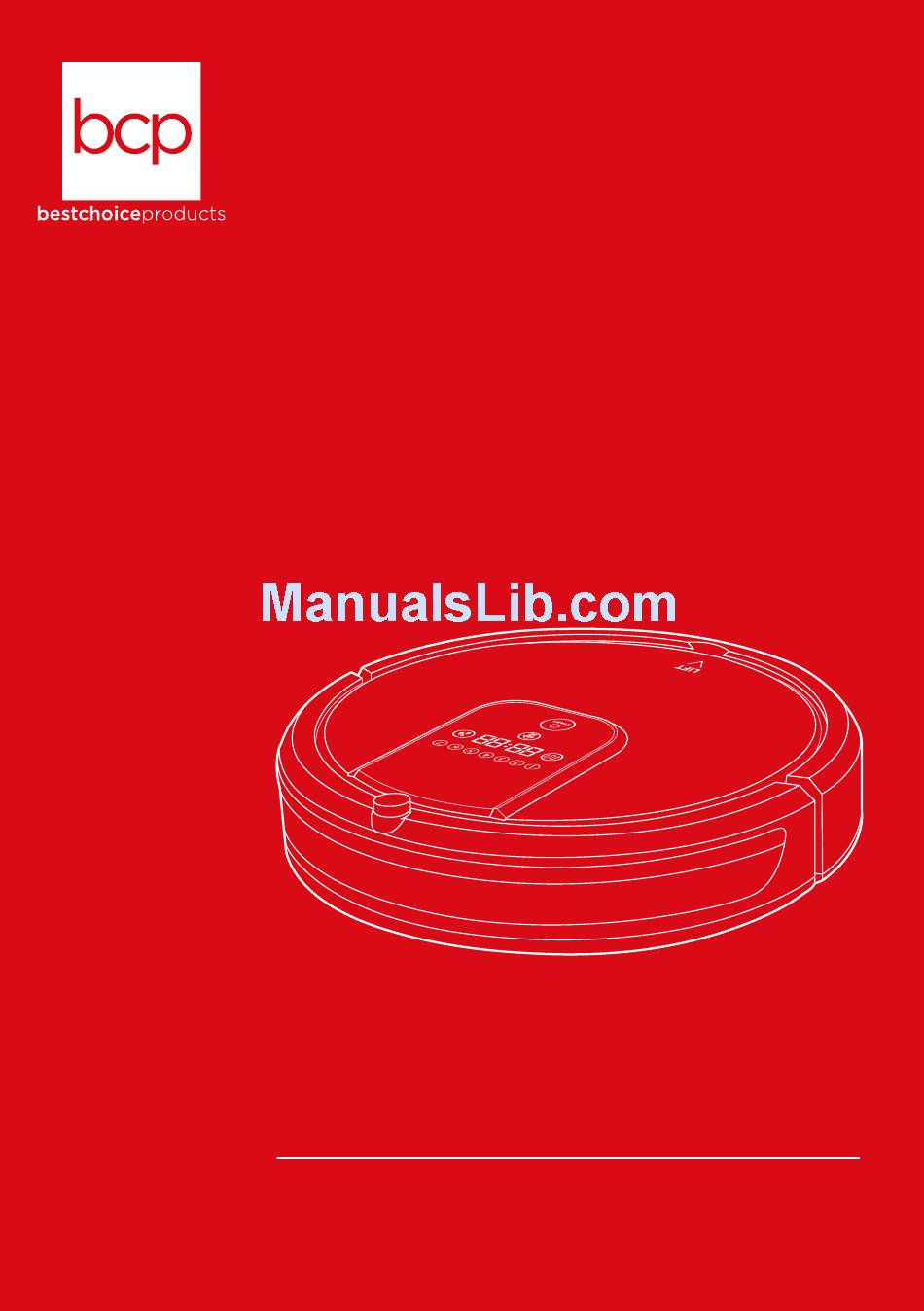

- Page 1 INSTRUCTION MANUAL Self-Charging Robot Vacuum SKY4719 Ver. 1...
- Page 2 Thank you for choosing us! Since 2002, Best Choice Products has been bringing customers high-quality products at the absolute lowest price. With everything ranging from instruments and toys to furniture and outdoor, we’ve got your everyday living essentials covered. We’re centered around a customer-first philosophy –...
-
Page 3: Technical Specifications
NOTICE Please retain these instructions for future reference. • This machine is intended for indoor use only. • This machine is intended for household use only. • Use with caution in the presence of children as it may startle or hurt them. •... -
Page 4: Required Items
WARNING • Do not sit or stand on this machine. • Do not use the machine in an extremely small, confined space such as a small table. • Do not expose the machine to water or other liquids. Do not allow the vacuum to intake liquids. - Page 5 PARTS DUSTBIN BRACKET REMOTE CONTROL 1 PC 1 PC 1 PC FILTER FRAME BRUSH HEPA FILTER EXTRA 1 PC 1 PC 1 PC TRAILING BAR SMALL DUSTBIN EXTRA 1 PC 1 PC 1 PC CHARGER WATER TANK CHARGING DOCK 1 PC 1 PC 1 PC Pg.
-
Page 6: Product Assembly
PRODUCT ASSEMBLY Attach the part B side brushes to the bottom of the part A unit. Push firmly during installation to ensure that they are properly attached. Slide the part C rolling brush onto the axle. Insert the part D bracket to secure the rolling brush. - Page 7 DIAGRAM SIGNAL RECEIVER BUMPER DISPLAY SCREEN START/STOP CLEANING DUST COVER CHARGING PORT POWER SWITCH BOTTOM CLIFF SENSORS FRONT WHEEL DOCK CHARGING SIDE BRUSHES PORTS ROLLING BRUSH BRACKET CLIFF SENSORS WHEELS RECHARGEABLE BATTERY Pg. 7...
- Page 8 PANEL/DISPLAY SCREEN DAY OF WEEK INDICATOR: The numbers 1 to 7 indicate days of the week, Monday to Sunday. SEEPING SPEED INDICATOR: Solid light indicates normal water seeping speed and blinking light DIGITAL INDICATOR: indicates fast water seeping speed. Displays the current time or The light will turn o and digital error codes.
-
Page 9: Remote Control
REMOTE CONTROL HOME POWER 16ft DIRECTIONAL START STOP BUTTONS START/STOP TURBO WALL TURBO WALL FULL GO TIMER SPOT FULL GO TIMER SPOT • Insert two AAA batteries into the remote control. • Remote control has a range of approximately 16 feet. HOME: Unit automatically returns to the charging dock to charge. -
Page 10: Cleaning The Rolling Brush
SETTING CLEANING SCHEDULE While in standby, press the TIMER button and then press the SPOT button. Press the LEFT/RIGHT buttons to toggle through the days of the week (1 represents Monday and 7 represents Sunday). Hold the UP button to select a day. Hold the DOWN button to cancel a selected day. Press START/STOP to save and continue to setting the time. -
Page 11: Cleaning The Dustbin
CLEANING THE DUSTBIN Lift the dust cover. Remove the part F dustbin. Open the dustbin and pour out the collected dust/dirt into a waste basket. Use the part G brush tool to clean the dustbin, filter frame, and HEPA filter. If necessary, rinse the parts with water. - Page 12 MOPPING FUNCTION Attach the trailing bar/mop to the bottom of the unit by inserting it into the designated holes. Open the plug, fill the water tank with clean water, Slide the part L small dustbin onto the part M and replace the plug. water tank.
- Page 13 SETTING UP CHARGING DOCK POWER INDICATOR POWER ADAPTER JACK SIGNAL EMISSION WINDOW POSITIVE RECHARGING POLE NEGATIVE RECHARGING POLE • Make sure that there are no obstacles or uneven surfaces 6.5 feet in front or 3.2 feet from the sides of the dock. •...
-
Page 14: Troubleshooting
TROUBLESHOOTING Error Code Problem Solution E001 Cannot detect ground Clean the cli sensors or place unit on flat ground E002 Suction inlet blocked Clean the sensor head or clear the inlet E003 Left/right wheels not working Clean foreign objects from the wheels E004 Side brushes not working Clean foreign objects from side brushes... - Page 15 Check out more great products: bestchoiceproducts.com...
-
Page 16: Product Warranty Information
ENJOY YOUR PRODUCT! PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included. All returned items will receive a full refund back to the original payment method.
