Eeyelog E790 User Manual

U S E R M A N U A L

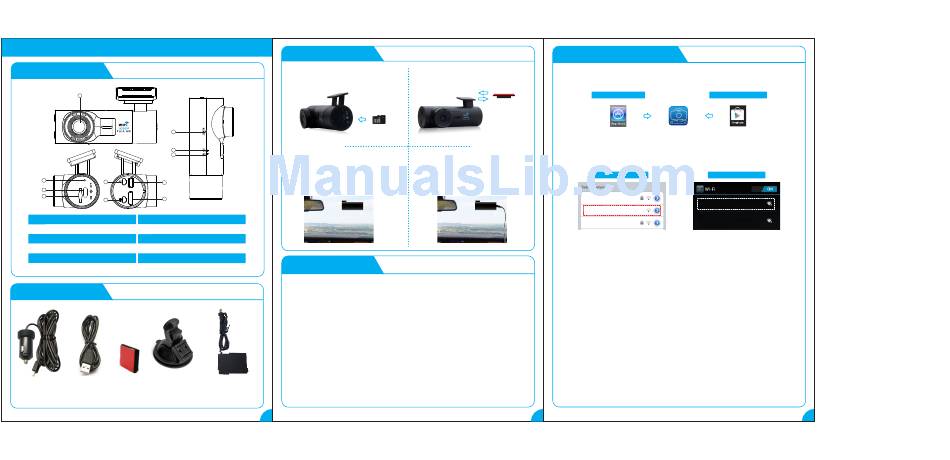

PRODUCT PHOTO CAR DVR E790
1
9
10
11
2
5
7
3
4
8
6
1. Lens 2. WiFi Indicator
4. TF Card Slot
3. WiFi On/Off
6. Recording
5. Power
8. HDMI
7. USB
10. Recording Indicator
9. Reset
11. Charging Indicator
BOX CONTENTS CAR DVR E790
Car Charger USB Cable Holder Suction Cup
(Optional)
INSTALLATION
1. Insert one TF card to the DVR.
As shown in figure below
3. Absorb the screwed bracket to the
appropriate place (eg., the windshield
of the car). Adjust the visual angle of
the DVR.
As shown in figure below
OPERATION
1. Power: Long press this button to power off.
2. Recording: After power on, the DVR will record automatically. Press this button to
stop or start recording.
3. WiFi On/Off: Press this button to turn WiFi on or off.
4. Reset: Please press reset button when abnormal circumstances happen, such as
crash, freeze, etc.
5. Charging Indicator: Whether in "ON" or "OFF" status to insert the USB interface
charger, the built-in super capacitor will be charged; meantime, the red charging
indication light keeps ON.
6. Recording Indicator: When it's in recording status or not, the blue recording
indicator will flash.
7. WiFi Indicator: When connect WiFi successfully, the green WiFi indicator will not
flash
8. USB: Connect USB port to turn dvr on or charge.
9. HDMI: When plug in HDMI, the DVR will stop recording.
GPS (Optional)
10. TF card slot: Please insert one TF card before use ((the card must be high speed
one, Class 6 and above).
1
CAR DVR E790
OPERATION FOR SMART CLIENT
2. Screw the bracket to the DVR.
1. Download and install APP software in your cellphone: Search "LinkinEyes"
As shown in figure below
software, download and install it.
2. Connect WiFi: Before connecting WiFi, forget password of all other WiFi hot
spot names in your cellphone. Find SSID (WiFi hot spot name). SSID name
4. Insert the car charger to the USB
begins AMBA_BOSS_. Password is 1234567890.
port.
As shown in figure below
Eeyelogvip
AMBA-XXXXXX
Street Storm
3. View real-time recording or take a photo: Open cellphone APP and you will see
the video.
CAR DVR E790
To make the time correct, you need do the following. At first time, you enter
video mode in APP. You stop the recording, exit and enter again.
But please note: when you stop the recording in APP, exit and enter APP
again, you will not see the DVR recording. Becasue you have stopped it and you
need start it again in APP or press recording button of the DVR.
After stop the recording and switch to Photo mode, you can take photos.
4. View the video or photo files: After stop the recording, you can enter the
list to check the files. Playback online, download or delete the videos or photos.
There are three files, normal videos, photos and emergency videos. Before you
share the videos or photos, you must download then first.
Video List/Photo List/Event List
5. Set the menus: After stop the recording, you can enter the menu to do
different settings. Eg., Video Stamp Date is default On. If you'd like to set it off, you
can enter the menu to do it. In the top right corner, you will see video resolution,
You can change the resolution as you like.
2
CAR DVR E790
IOS System Client Android System Client
IOS System Client Android System Client
AMBA-XXXXXX
Eeyelogvip
3
