Eeyelog E730 User Manual

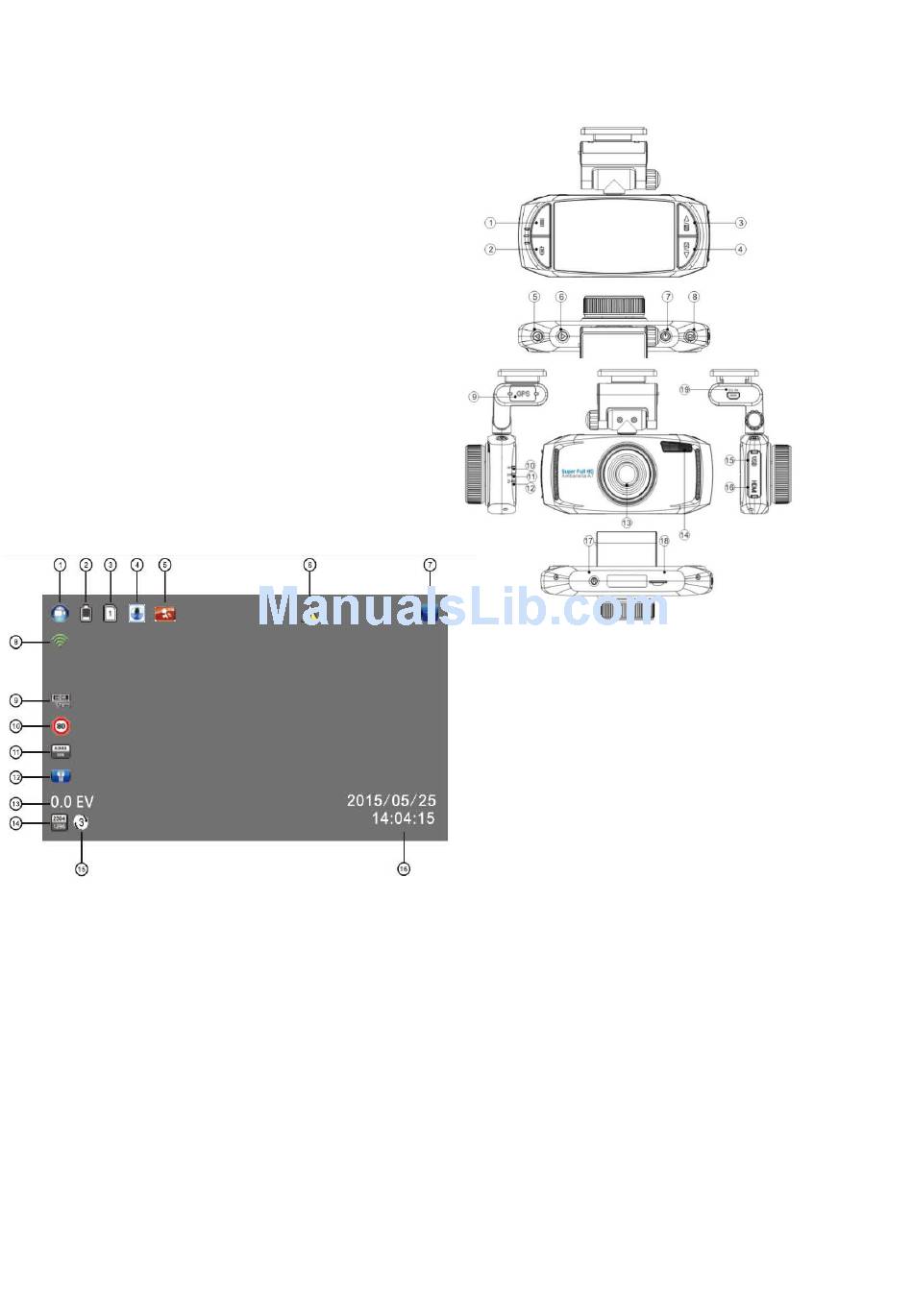

Dashboard Camera Illustration

1) Menu
2) Mode
3) UP/MIC
4) Down/EV
5) Left / LED Button
6) Right
7) Power Button
A. To power it on, press the button once, press it again to
turn off the display (this will NOT power it off)
B. To power off the dash camera, hold the press for 3s
8) Record / Snapshot / Confirm
9) GPS
10) Red Indicator (Charging)
11) Blue Indicator (Recording)
12) Green Indicator (GPS) – Extra GPS Module Required
13) Lens
14) LED Light (Night Vision)
15) USB Port
16) HDMI Output
17) Reset
18) Micro SD Card Slot
19) DC IN (Where you connect your car charger)
Sensor)
7) Microphone: It only shows up in Recording Mode, press the "Left/MIC" button to turn it On/Off
8) GPS: External GPS Module required for GPS option
9) HDR: When resolution is set to 1920x1080@30P HDR, it appears.
10) Speed Limit: Preset speed limit (GPS Module required)
11) ADAS: Only appears when it is enabled
12) LED: On/Off
13) EV: Exposure Value, "+" means brighter, "-" means dimmer
14) Video Resolution
15) Loop Recording: 3 Minutes (for the current setting)

Installation:

1) Shut vehicle engine off.
2) With Power Off, insert the Micro SD Card (not provided) into the card slot.
3) Affix the DVR mounting frame (the suction cup) to the windshield (clean the windshield before placing mounting frame). Check
the FAQ to see where you should affix the mounting. Adjust camera position to ensure it is not blocking driver's view.
4) Connect the car charger to "DC IN", start the engine, check if DVR Dash Camera has been installed correctly. (If DVR Dash Camera
has been installed correctly, device will enter video recording mode automatically when engine starts.)
USER MANUAL
Illustration
1) Movie Camera Icon: Indicating camera is in Recording
Mode
2) Battery: Indicating the remaining power for the device,
charge your camera when the power is low
3) Micro SD Card: When the card is properly inserted, it
shows up. Otherwise it will be a "X"
4) G-Sensor: The higher the blue color stands, the more
sensitive
5) Motion Detection: This icon shows up only when it is
enabled
6) Lock: This Icon shows up when collision/vibration occurs
and followed by device mandatory file protection (see G-
Interface
