AZ Patio Heaters ZHQ1821SH-MI Instruction Manual

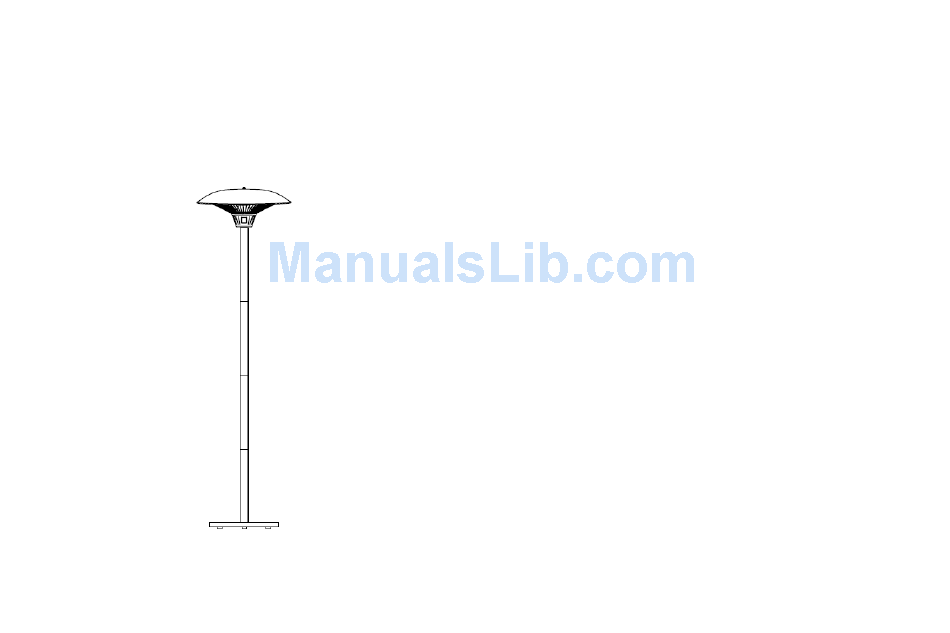

Electric patio heater

Enlarged version

Instruction Manual

Electric Patio Heater

ZHQ1821SH-MI

Please read these instructions carefully before using

your new halogen heater

npack the halogen heater making sure that all the items are

present and that there are no components left in the box and

that the heater head is free from any packing material.

sing the detailed drawing follow the steps to assemble your

halogen heater.

o not connect the halogen heater to the electrical supply

until all the assembly is complete.

o not connect the halogen heater to the electrical supply if

any of the components or the power cord is damaged in any

way.

f in doubt contact your supplier.

Table of Contents

Need help?

Do you have a question about the ZHQ1821SH-MI and is the answer not in the manual?

Page 1 Electric Patio Heater sing the detailed drawing follow the steps to assemble your ZHQ1821SH-MI halogen heater. o not connect the halogen heater to the electrical supply until all the assembly is complete.
Page 2 Step 4: Connect the top tube with middle tube by screwing them together. Assembling Process Step 1: Connect the bottom tube with base by screwing them together. Step 5: Place the power cord plug through base, bottom pole, middle pole and top pole.
Page 3 the heater head. o not position immediately above or below an electrical socket. o not move when connected to an electrical supply and always wait for the patio heater to cool down before storing away. o not touch the heater head when in use. o not leave turned on and unattended especially when children and or animals are in the vicinity.
Page 4 bathroom or shower area. for a period after shut down. otential danger would occur he unit is for household use only. It is not safe to use on a when touching it during this period. building site, greenhouse, barn or stable where there’s on’t place the unit closed to curtain and/or other flammable flammable dust.
Page 5 once the Heater is in the right position, the wheels should be Technical specification removed for safety purpose. • Power supply 220-240V 50Hz • Wattage max 2100W • Net weight 10.1kg WARNING: This heater is not equipped with a device to control the •...
