Solar Bollard Lighting SBL SERIES General Installation Manual

Congratulations on purchasing your
SBL Series Solar Bollard Light
IMPORTANT BEFORE YOU INSTALL
The standard SBL Series Solar Bollard is
designed to be installed in direct undisrupted
sunlight from dawn until dusk based on winter
month's sun trajectory/angle.
If shading from trees or other structures are
found at the installation site not discussed prior
to delivery of your order, please immediately
contact your supplier prior to commencing the
installation as a different power model may
possibly be required just for those shaded areas.
SBL SERIES INSTALLATION GUIDE
Your SBL Series bollard light will arrive with the
-WHEN PRODUCT ARRIVES--
STEP 1

If the light has arrived pre-assembled remove
the 4 x M6 security bolts using the Security
Driver bit taped to the pole. Put the light head
somewhere safe for later re-attachment.

If light and poles have arrived separately
packed which is common for large volume
projects, leave light/s in carton until required.
-STEP 2 - INSTALL THE MOUNTING
-per pole type installation instructions on next
-AFTER MOUNTING POLE

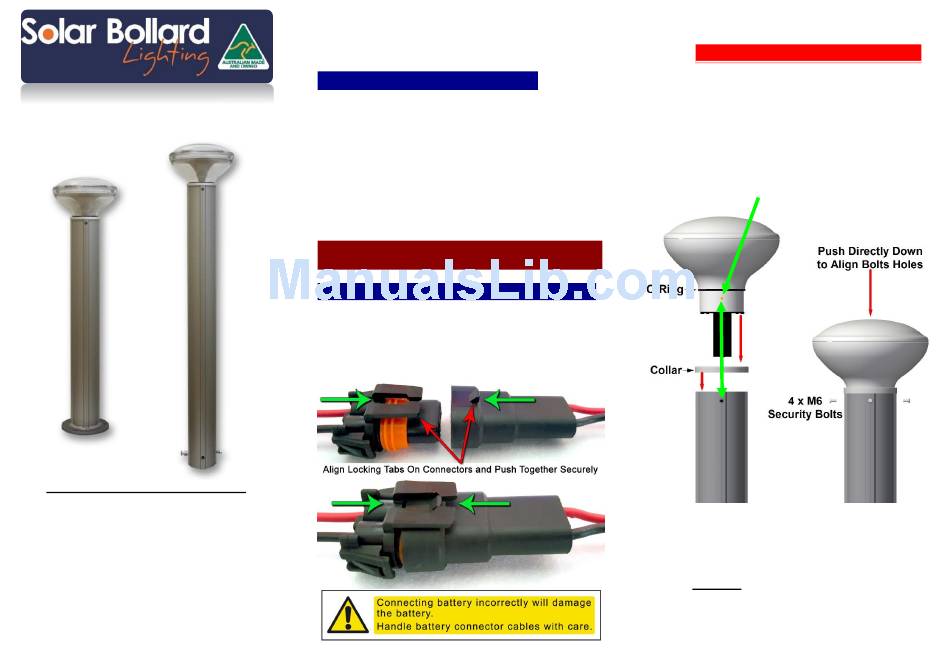

STEP 3 - RE-ATTACH SBL LIGHT HEAD
1. Connect the weatherproof battery connectors
together exactly as shown below with locking
lugs on same side to activate power to the unit.
2. Slide light mounting shaft into pole aligning
securing points of light and pole until Spun
Collar is sitting flush with top of the pole edge.
3. Then pushing down on light head top dome with
enough pressure and turning light head if need
be until
POLE------ -
page-
INSTALLED-
4. Finally install 4 x M6 security bolts supplied with
lights by hand initially to ensure no cross
threading is occurring, then tighten with
cordless ratchet driver using driver tool until
firm. DO NOT over tighten and strip threads.
5. Your SBL Series Solar Bollard Light is now
installed and ready for operation.
© 2003 - 2016 Key Wholesalers Pty Ltd t/a Solar Bollard Lighting- All rights reserved
"BATTERY DISCONNECTED"
securing points line up.
