Related Manuals for Hanasis ITX-D255R
Summary of Contents for Hanasis ITX-D255R

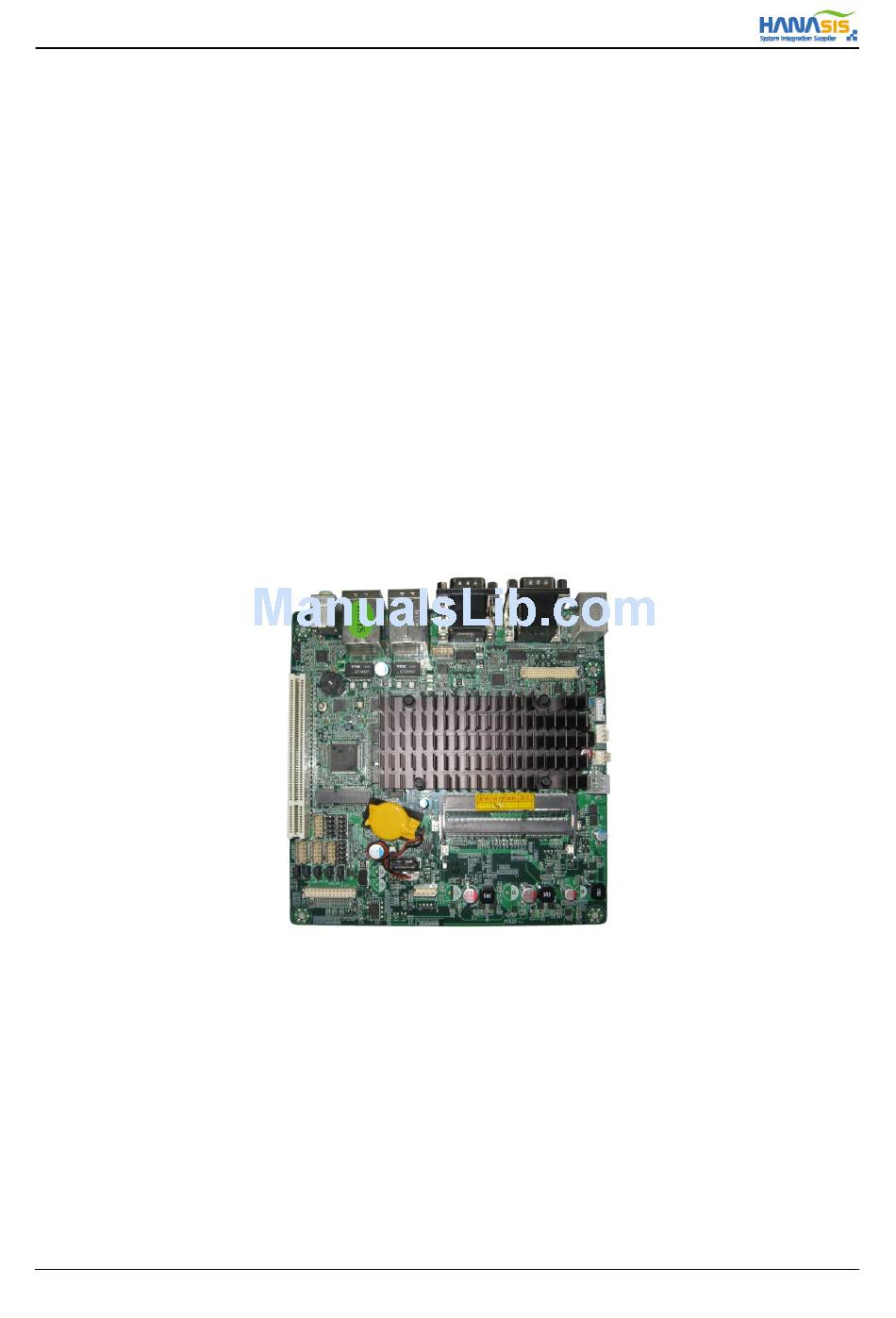

- Page 1 ITX-D255R Mini-ITX Mother Board Manual Mini-ITX Mother Board (ITX-D255R) User Manual Version 1.0 Published Feb 2014 Copyright©2014 Hanasis & Ruide All rights reserved 1 / 31...
- Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if Hanasis&Ruide has been advised of the possibility of such damages arising from any defect or error in the manual or product.
-
Page 3: Table Of Contents
ITX-D255R Mini-ITX Mother Board Manual Contents Chapter1 Introduction ---------------------------------------------------------------------------------------------- 3 1.1 Specification ------------------------------------------------------------------------------------------------------- 5 1.2 System Block Diagram ------------------------------------------------------------------------------------------- 6 1.3 Mother Board Layout --------------------------------------------------------------------------------------------- 7 1.4 I/O Panel Connectors --------------------------------------------------------------------------------------------- 8 Chapter2 Installation ----------------------------------------------------------------------------------------------- 9 2.1 Screw Holes -------------------------------------------------------------------------------------------------------- 9 2.2 Pre-Installation Precautions ------------------------------------------------------------------------------------- 9... - Page 4 Chapter1. Introduction Thank you for purchasing ITX-D255R motherboard, a reliable motherboard produced under Hanasis&Ruide’s consistently stringent quality control. It delivers excellent performance with robust design conforming to Hanasis&Ruide’s commitment to quality and endurance. In this manual, chapter 1 and 2 contain introduction of the motherboard and step- by-step guide to the hardware installation.
-
Page 5: Specification
ITX-D255R Mini-ITX Mother Board Manual 1.1 Specification Item Specification Mini-ITX (170mm x 170mm) 6-Layer Form Factor Dimemsions Intel ® Dual-Core Atom CedarView Processor D2550 Supports Hyper-Threading Technology Supports Untied Overclocking Technology Core Number 2 EA Processor System Max Speed 1.86 GHz... -
Page 6: System Block Diagram
ITX-D255R Mini-ITX Mother Board Manual 1.2 System Block Diagram 6 / 31... -
Page 7: Mother Board Layout
ITX-D255R Mini-ITX Mother Board Manual 1.3 Mother Board Layout 20) AMP(Speaker) (1) VGA Header (2) LVDS (3) Panel Power Jumper (4) Inverter & B/L 19) miniPCIe(mSATA) (5) FAN (CPU) (6) FAN (SYS) 18) USB5&6, USB7/8 (7) ATX 12V Power 17) DIO&... -
Page 8: I/O Panel Connectors
ITX-D255R Mini-ITX Mother Board Manual 1.4 I/O Panel Connector (1) PS/2 MOUSE (2) COM#2 (3) COM#3 (4) LAN#2 (5) LAN#1 (6) LINE-OUT (12) PS/2 KBD (11) COM#1 (10) VGA (9) USB1&2 (8) USB3&4 (7) MIC-IN Connector Name Connector Name PS/2 MOUSE Port (DIN-6P Green) -
Page 9: Chapter2 Installation
2.3 Installation of Memory Modules (SO-DIMM) ITX-D255R motherboard provides two 204-pin DDR3 (Double Data Rate 3) SO-DIMM slots. 1. It is not allowed to install a DDR or DDR2 memory module into a DDR3 slot; otherwise, this motherboard and SO-DIMM may be damaged. -
Page 10: Expansion Slot (Pci Slot)
ITX-D255R Mini-ITX Mother Board Manual 2.4 Expansion Slot (PCI Slot) There is 1 PCI slot on this motherboard. PCI Slot : The PCI slot is used to install an expansion card that has 32-bit PCI interface. 2.4.1 Installing a Expansion Card Step#1] Before installing the expansion card, please make sure that the power supply is switched off or the power cord is unplugged. -
Page 11: Onboard Header And Connectors
ITX-D255R Mini-ITX Mother Board Manual 2.6 Onboard Header and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard! 2.6.1 LVDS Connector... - Page 12 ITX-D255R Mini-ITX Mother Board Manual 2.6.3 CPU FAN Connector (CPU FAN) Connector SPEC Shape Signal Description Remark 1 : GND 2 : +12V 4-Pin 2.5 Pitch 3 : FAN Speed (Sense) 4 : FAN Speed Control NOTE] Please connect the CPU fan cable to the connector and match the black wire to the ground pin.
- Page 13 ITX-D255R Mini-ITX Mother Board Manual 2.6.8 System Front Panel Connector (F PANEL) Connector SPEC Shape Signal Description Remark 9-Pin 2.54 Pitch Refer to below Signal Description Signal Description HDD LED (+) PWRLED (+) HDD LED (-) PWRLED (-) RSTBTN (+)
- Page 14 ITX-D255R Mini-ITX Mother Board Manual 2.6.9 Parallel Port Connector (JLPT) Connector SPEC Shape Signal Description Remark 26-Pin 2.0 Pitch Refer to below Signal Description Signal Description STB# AFD# SPD0 ERROR# SPD1 PINIT# SPD2 SLIN# SPD3 SPD4 SPD5 SPD6 SPD7 ACK#...
- Page 15 ITX-D255R Mini-ITX Mother Board Manual 2.6.12 GPIO & AMP Connector Connector SPEC Shape Signal Description Remark 10-Pin 2.0 Pitch Refer to below Signal Description Signal Description SMBUS DAT SMBUS CLK LAN Active LED (+) LAN Active LED (-) GPI [0]...
-
Page 16: I/O Connectors
ITX-D255R Mini-ITX Mother Board Manual 2.7 I/O Connectors 2.7.1 COM#1 Port Connector SPEC Shape Signal Description Remark DSUB 9Pin Refer to below Signal Description Signal Description RS-232 RS-422 RS-485 RS-232 RS-422 RS-485 RX (-) TX (-) Data (-) TX (+) - Page 17 ITX-D255R Mini-ITX Mother Board Manual 2.7.4 VGA Port Connector SPEC Shape Signal Description Remark DSUB 15 Pin Refer to below Signal Description Signal Description Signal Description Analog - RED Analog Shield (GND) Analog - GRN Analog Shield (GND) DDC DAT...
-
Page 18: Serialata(Sata) / Serialata2(Sata2) Hard Disks Installation
ITX-D255R Mini-ITX Mother Board Manual 2.8 SerialATA (SATA) / Serial ATA2(SATA2) Hard Disks Installation This motherboard adopts Intel® NM10 Express chipset that supports Serial ATA (SATA) / Serial ATA2 (SATA2) hard disks. You may install SATA / SATA2 hard disks on this motherboard for internal storage devices. This section will guide you to install the SATA / SATA2 hard disks. -
Page 19: Chapter3 Uefi Setup Utility
ITX-D255R Mini-ITX Mother Board Manual Chapter3. UEFI SETUP UTILITY 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <Del> during the Power-On-Self- Test (POST) to enter the UEFI SETUP UTILITY, otherwise, POST will continue with its test routines. -
Page 20: Main Screen
ITX-D255R Mini-ITX Mother Board Manual 3.2 Main Screen When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. 3.3 Advanced Screen In this section, you may set the configurations for the following items : PCI Subsystem Settings, ACPI Settings, CPU Configuration, IDE Configuration, Info Report Configuration, USB Configuration, IT8786 Super IO Configuration, IT8786 HW Monitor, PPM Configuration. - Page 21 ITX-D255R Mini-ITX Mother Board Manual 3.3.1 PCI Subsystem Settings This feature allows the user to set the PCI/PnP configurations for the following items: 3.3.2 ACPI Settings Use this feature to configure Advanced Configuration and Power Interface (ACPI) power management settings for your system.
- Page 22 ITX-D255R Mini-ITX Mother Board Manual 3.3.3 CPU Configuration 3.3.3.1 Hyper-Threading To enable this feature, it requires a computer system with an Intel processor that supports Hyper-Threading technology and an operating system that includes optimization for this technology, such as Microsoft® Windows®7.
- Page 23 ITX-D255R Mini-ITX Mother Board Manual 3.3.4 Storage Configuration 3.3.4.1 SATA Controller(s) Use this item to enable or disable the SATA. 3.3.4.2 Configuration SATA as Use this to select SATA2 mode. Configuration options : [IDE Mode], [AHCI Mode]. The default value is [IDE Mode].
- Page 24 ITX-D255R Mini-ITX Mother Board Manual 3.3.6 USB Configuration 3.3.6.1 Legacy USB Support Use this option to select legacy support for USB devices. There are four configuration options: [Enabled], [Auto] and [Disabled]. The default value is [Enabled]. Please refer to below descriptions for the details of these four options: [Enabled] - Enables support for legacy USB.
- Page 25 ITX-D255R Mini-ITX Mother Board Manual 3.3.7 IT8786 Super IO Configuration 3.3.7.1 Serial Port1 Configuration Use this to set parameters of COM1. Select COM1 port type : [RS232],[RS422] or [RS485]. The default value is [RS232]. 3.3.7.2 Serial Port2 Configuration Use this to set parameters of COM2. COM2 support the serial port voltage to 5V or 12V by BIOS.
- Page 26 ITX-D255R Mini-ITX Mother Board Manual 3.3.8 IT8786 HW Monitor In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed and the critical voltage.
-
Page 27: Feature Screen
ITX-D255R Mini-ITX Mother Board Manual 3.4 Feature Screen 3.4.1 Customer Logo Use this to enable or disable customer logo. The default is [Disable]. 3.4.2 Flash Write Protection This function protects the BIOS from accidental corruption by unauthorized users or computer viruses. -
Page 28: Chipset Screen
ITX-D255R Mini-ITX Mother Board Manual 3.5 Chipset Screen 3.5.1 IGFX – Primary Boot Type Use this to select primary internal graphics boot display. Configuration options : [VBIOS Default], [CRT] and [LFP]. The default value is [VBIOS Default]. 3.5.2 LVDS Control Use this to enable/disable or detect the LVDS. -
Page 29: Boot Screen
ITX-D255R Mini-ITX Mother Board Manual 3.6 Boot Screen In this section, it will display the available devices on your system for you to configure the boot settings and the boot priority. 3.6.1 Setup Prompt Timeout This shows the number of seconds to wait for setup activation key. 65535(0XFFFF) means indefinite waiting. -
Page 30: Exit Screen
ITX-D255R Mini-ITX Mother Board Manual 3.8 Exit Screen 3.8.1 Save Changes and Reset When you select this option, it will pop-out the following message, “Save configuration and Reset?” Select [YES] to save the changes and exit the UEFI SETUP UTILITY. -
Page 31: Chapter4 Software Support
ITX-D255R Mini-ITX Mother Board Manual Chapter4. Software Support 4.1 Install Operating System This motherboard supports Microsoft® Windows® operating systems: 7 32-bit. Because motherboard settings and hardware options vary, use the setup procedures in this chapter for general reference only. Refer to your OS documentation for more information.
