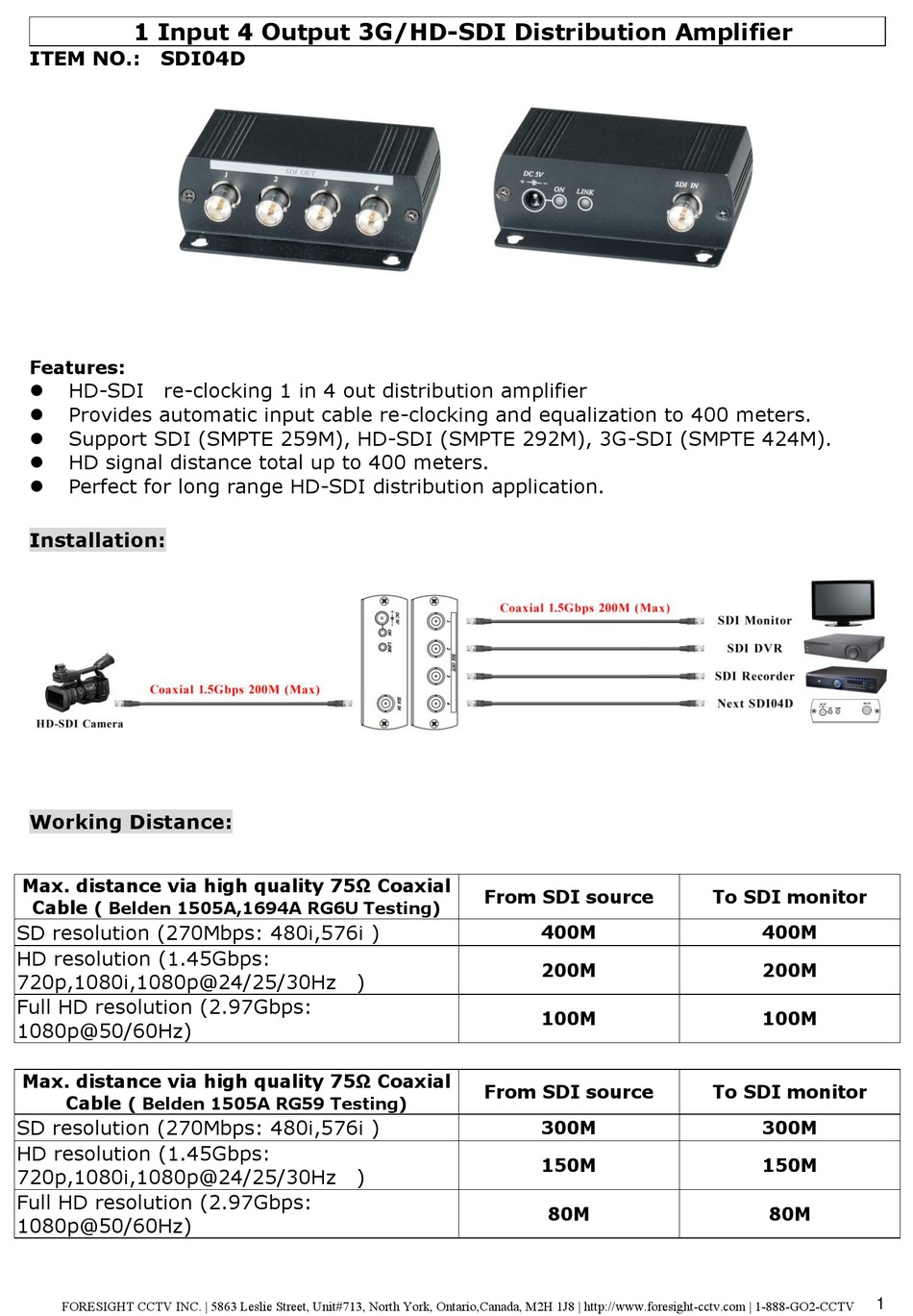

Foresight CCTV SDI04D User Manual

1 Input 4 Output 3G/HD-SDI Distribution Amplifier
ITEM NO.: SDI04D

Features:

HD-SDI re-clocking 1 in 4 out distribution amplifier

Provides automatic input cable re-clocking and equalization to 400 meters.

Support SDI (SMPTE 259M), HD-SDI (SMPTE 292M), 3G-SDI (SMPTE 424M).

HD signal distance total up to 400 meters.

Perfect for long range HD-SDI distribution application.


Installation:

Working Distance:

Max. distance via high quality 75Ω Coaxial
Cable
( Belden 1505A,1694A RG6U Testing)
SD resolution (270Mbps: 480i,576i )
HD resolution (1.45Gbps:
720p,1080i,1080p@24/25/30Hz )
Full HD resolution (2.97Gbps:
1080p@50/60Hz)
Max. distance via high quality 75Ω Coaxial
Cable
( Belden 1505A RG59 Testing)
SD resolution (270Mbps: 480i,576i )
HD resolution (1.45Gbps:
720p,1080i,1080p@24/25/30Hz )
Full HD resolution (2.97Gbps:
1080p@50/60Hz)
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
From SDI source
400M
200M
100M
From SDI source
300M
150M
80M
To SDI monitor
400M
200M
100M
To SDI monitor
300M
150M
80M
