ITEM NO.: HD02, HD04
HD02, H04 is a distribution amplifier for HDMI signals. Both of them built in 2 input selection
for variety application. It reclocks and equalizes the signal and distributes it to two, four
identical outputs.
HD02 2 Input 2 Output HDMI Distribution Amplifier
 Connects up to 2 HDMI displays at the same time from a digital video source.
 2 input selectable by front buttons (A/B).
 A, B Input could be setup by auto jump or manual setting.
 Support high resolution: 480i、480p、720p、1080i、1080p @24/50/60Hz
 Bandwidth: 25-225Mhz, support up to 12-Bit deep color.
 Support DTS-HD、Dolby True HD、LPCM 7.1
 Support HDCP 1.3a, HDCP compliant.
HD04 1 Input 4 Output HDMI Distribution Amplifier
Identical to HD02, but 4 HDMI displays at the same time from a digital video

source.

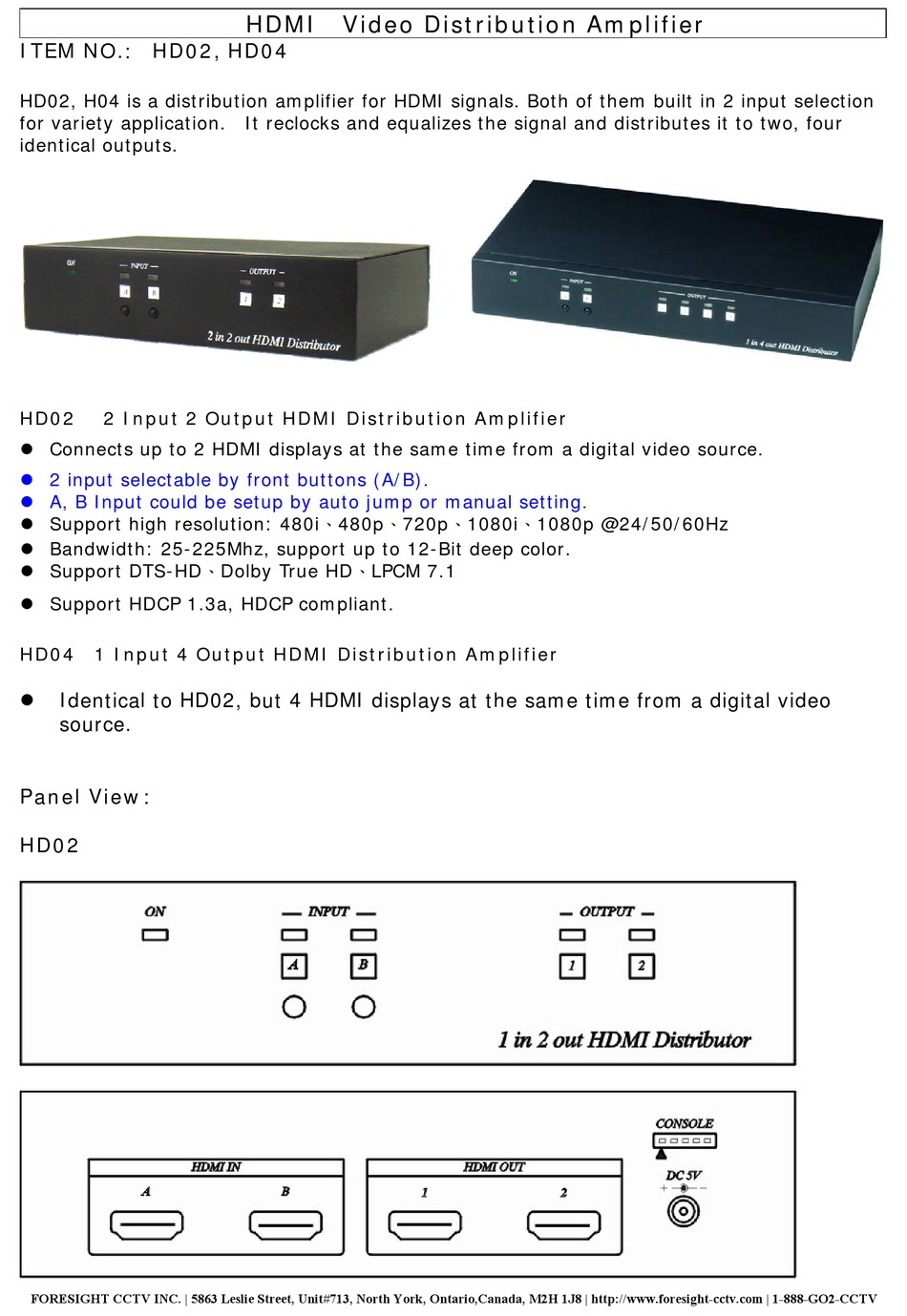

Panel View:

HD02
