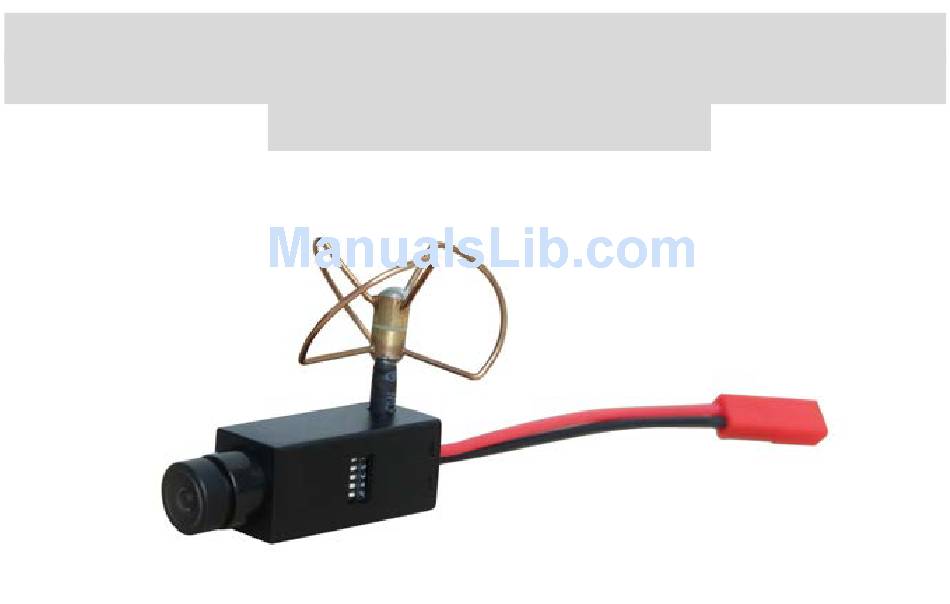

- Page 1 5.8G 32CHs Wireless MINI CAMERA TE93 INSTRUCTION...

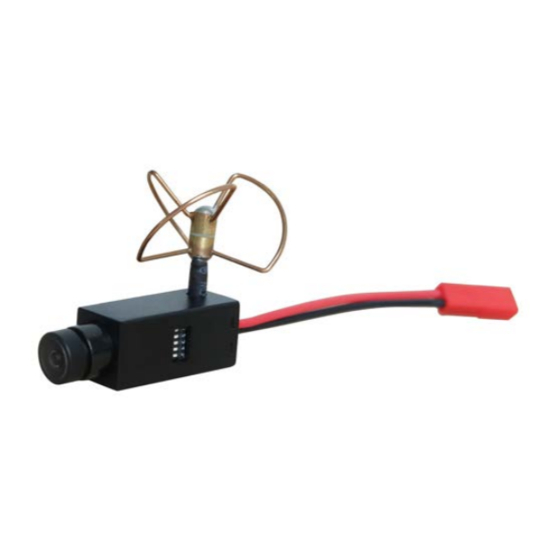

- Page 2 Thank you for choosing our products. Before using, please read the instruction carefully to assure good performance. All-in-one 32CHs mini wireless camera TE93: 1) Built-in with 25mW 32CHs 5.8Ghz transmitter. 2) It covers over 100 meters with excellent video and audio.
- Page 3 II． Specification Specifications Test Item Unit Min. Typ. Max. Condition RF Output Characteristic Tx Power A/V 比(Video Audio subcarrier Level 6470 6500 6530 Camera Characteristics PICK UP ELEMENT Single chip 1/4CMOS NUMBER OF PIXEL NTSC：720（H）×480（V）PAL：720（H）×576（V） HORIZONTAL Approximately 520TV Lines SENSITIVITY 0.008Lux/F1.2 LENS &...
- Page 4 II．Specification Specifications Test Item Unit Min. Typ. Max. Condition Audio Characteristics Freq Responsez 120-3400Hz 78db DC Characteristics Supply Voltage Current Dimension Size(LWH） 41mmX 13mmX 13.5mm Weight TE93A/B :10g TE93C:7g Temperature -10℃ ~ +60℃ Connection PIN1 Red DC5V PIN2 Black GND...
- Page 5 III．A Frequency Setting A（FREQUENCY GROUP1）:SW4=OFF SW5=OFF CHANNEL A1：5.740GHz A2：5.760GHz A3：5.780GHz A4：5.800GHz A5：5.820GHz A6：5.840GHz A7：5.860GHz A8：5.860GHz...
- Page 6 IV．B Frequency Setting B（FREQUENCY GROUP1）:SW4=ON SW5=ON CHANNEL B8：5.725GHz B7：5.745GHz B6：5.765GHz B5：5.785GHz B4：5.805GHz B3：5.825GHz B2：5.845GHz B1：5.865GHz...
- Page 7 V．C Frequency Setting C（FREQUENCY GROUP1）:SW4=OFF SW5=ON CHANNEL C1：5.733GHz C2：5.752GHz C3：5.771GHz C4：5.790GHz C5：5.809GHz C6：5.828GHz C7：5.847GHz C8：5.866GHz...
- Page 8 VI．D Frequency Setting D（FREQUENCY GROUP3）:SW4=ON SW5=OFF CHANNEL D1：5.705GHz D2：5.685GHz D3：5.665GHz D4：5.645GHz D5：5.885GHz D6：5.905GHz D7：5.925GHz D8：5.945GHz...
