optitrack Insight VCS:Pro Quick Start Manual

Virtual camera system

Advertisement

Quick Links

* Marker Configurations

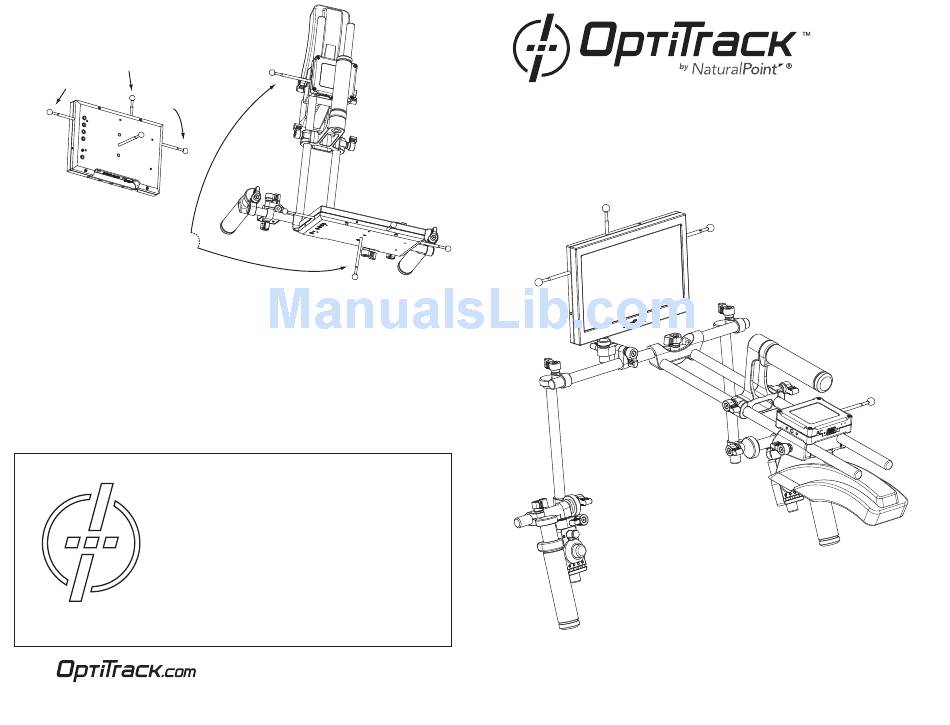

The VCS:Pro rig needs four markers total.
Place one marker on top of the HD monitor and
one on either side.
40mm
post
60mm
post
80mm
post
60mm
post
The fourth
marker
(80mm)
may be placed in either
of these two locations.
4. Software Compatibility & Usage
Windows 7 is preferred. Windows Vista and XP operating systems are supported.
The Insight VCS system is intended for use with NaturalPoint's MotionBuilder and Maya VCS
plugins. Buttons and joysticks can be mapped for extensive camera control. See the
MotionBuilder and Maya plugin manuals at OptiTrack.com for additional information.
Friendly Customer Service
If you have any difficulties after reviewing the
documentation, visit our website or call
1.541.753.6645 between 9AM-5PM PT.
Visit www.OptiTrack.com for the latest software
support, sample code and product news.
P-OT-107.1011
(1) on VCS
Demux
(2) on back of
VCS
Monitor
© 2010 NaturalPoint, Inc. All rights reserved.
All other company and or product names are the trademarks of their respective owners.
Insight VCS:Pro

quick start guide
