4-noks ELIOS4YOU Pro Quick Manual

INSTALLATION
ATTENTION
1. After device installation and after having it powered on, download the free App Elios4you on your own device (smartphone or tablet) from Playstore
ATTENTION:
before installing Elios4you, remove the
(Android) or App Store (iOS)
label (see picture below) with USER code.
Keep the label in a safe place for future other device
configuration and/or for logging in the website www.4- 2. Open the App and start the wizard, following the steps visible on your smartphone/tablet (read the Elios4you APP Quick Guide for further information)
cloud.org.
3. Set correct parameters for your PV system and your energy provider using the App menu:
ID CODE: 00000
Register on: - Press
www.4-cloud.org
- Select
and associate your device
- Select "Energy Management" and set values
with USER: XXXXXXXX
- Press OK when finished to save new values
4. Check that collected data are correct:
ATTENTION: if you are setting a connection
through a Router/AP, data will be visible on
- Press
the website after approximately 1 hour from
- Check that energy "Generation" value
configuration.
- Check that the energy "Consumption" value
ATTENTION: when Elios4you is configured for internet access through Router/AP, all data are collected even on 4-cloud website.
Go to http://www.4-cloud.org and follow on line instructions for registering. Match your account with the device filling with the USER code on the label of your
Elios4you.
WARNING: remove the cover to the right to access the CONFIG button.
TROUBLE SHOOTING
Installation - Power reading
Problem
1. I can't see my PV system
energy generation in the
App's home Page
2. The energy generation visible
on the App is definitely less
than the value read from the
inverter
3. Consumption graph has the
same shape of production
graph line
4. It seems that consumption
values are shown in the
"grid" icon
5. I can never see purchased
energy in my system
6. During the night the
consumption is zero, while
during the day is always
more than normal value
expected
All models are compliant to directive 2004/108 CE - 2006/95 CE - directive 99/5 CEE
The appliance (or the product) must be disposed of separately in accordance with the local regulations regarding disposal.
"Menu" button
"Parameter Settings"
"Home" button to to go the "Energy performance" page
has similar value as you can read from the inverter
is the same of the real time consumption you have in the home
a. Change current clamps (CT) versus (white label) by inverting the green dot or the inside current clamp arrow position.
b. Check that the current clamps core is not broken or cracked inside.
a. Be sure that the Elios4you is powered from the same line of the 2 current clamps.
b. Check that the current clamps (white label) are perfectly closed: any strong pressure should be need to clamp the cable
properly
c. Make sure that you have kept a correct correspondence between the sequence of voltages to bring power to the main circuit
breaker and the sequence in which the CT are positioned in the various cables .
a. Be sure that the mains CTs (yellow label) clamp all lines coming from the Mains Meter before they undergo branching within the
electrical system.
b. Check that the current clamps core is not broken or cracked inside.
a. Be sure that the mains CTs (yellow label) clamp all lines coming from the Mains Meter before they undergo branching within the
electrical system.
a. Be sure that the mains CTs (yellow label) clamp all lines coming from the Mains Meter before they undergo branching within the
electrical system.
a. Be sure that the mains CTs (yellow label) clamp all lines coming from the Mains Meter before they undergo branching within the
electrical system.
b. Make sure that you have kept a correct correspondence between the sequence of voltages to bring power to the main circuit
breaker and the sequence in which the CT are positioned in the various cables .
4-noks SRL - Via Per Sacile, 158 - Francenigo di Gaiarine (TV) - Italy
Tel. +39 0434 768462 - Fax +39 0438 694617 - info@4-noks.com - www.4-noks.com
a) b)
Solutions
ELIOS4YOU Pro
Quick
Guide
The Elios4you Pro family of products are wireless devices designed to monitor and
manage three-phase photovolatic installations (400Vac with neutral) via the Elios4you
APP. The transmitter measures the energy generated of the PV plant, exchanged with the
grid, the household consumption and the self-consumption.

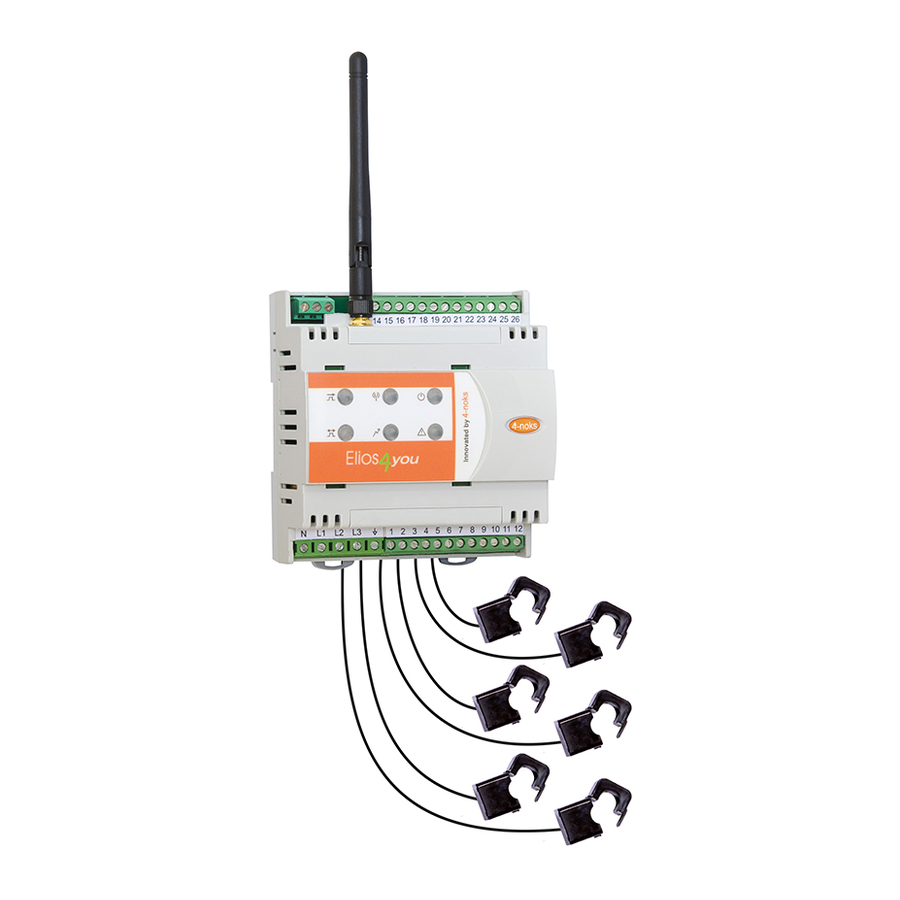

Elios4you Pro-xx
Removable Cover
ID Code Label
READ THESE INSTRUCTIONS BEFORE INSTALLING
:
Product Identification
this document refers to following devices:
Code Product
E4U-PRO Elios4you 3-phase up to 30 kW
E4U-PRO-DE Elios4you 3-phase up to 50 kW
E4U-PRO-EN Elios4you 3-phase up to 50 kW
E4U-PRO-FR Elios4you 3-phase up to 50 kW
E4U-PRO-UK Elios4you 3-phase up to 50 kW
E4U-PRO-LIGHT-DE Elios4you 3-phase up to 15 kW
E4U-PRO-LT-EN Elios4you 3-phase up to 15 kW
EN
Current Transformers
