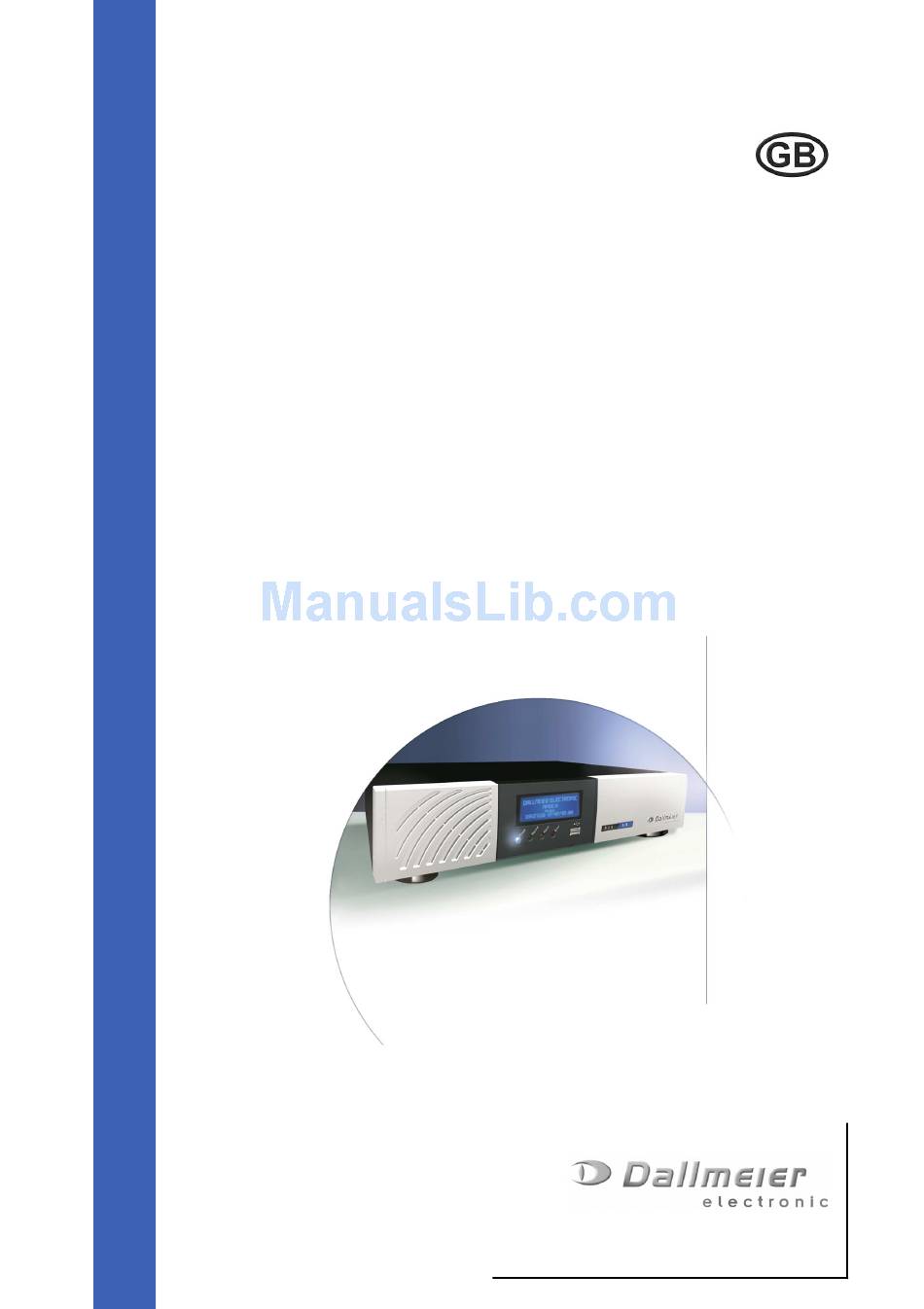

- Page 1 Operating manual Installation and configuration Video Streaming Server DIS-1/S DIS-1/L Dallmeier electronic GmbH & Co.KG DK 190.202 GB / Rev. 3.0.4 / 040420...
- Page 2 It is particularly important, therefore, to pay attention to the safety instructions (see chapter 2). Copyright © Dallmeier electronic GmbH & Co.KG 2004 All rights reserved. No part of this document may be copied, photocopied, reproduced, translated, transferred onto an electronic medium or brought into machine readable form without the prior written consent of Dallmeier electronic GmbH &...
-
Page 3: Table Of Contents
Time zone ..................... 24 6.3.3 Time server ................... 25 Setting the video standard ..............25 Interfaces ..................... 26 6.5.1 COM port ....................26 6.5.2 Interfaces ..................... 28 Event Log ....................29 Changing Password ................30 Dallmeier electronic GmbH & Co.KG... - Page 4 Search functions .................. 70 9.2.1 Fast search with slide controller ............70 9.2.2 Direct picture search ................72 Zoom function ..................74 9.3.1 Moving the zoom window ..............75 9.3.2 Exiting the zoom function ..............75 Dallmeier electronic GmbH & Co.KG...
- Page 5 Exiting the main menu ..............84 Shutting down the system ............85 Appendix ......................87 Contact assignment of Contact IN ............88 Memory requirement ................88 Technical data ..................89 What is MPEG? ..................92 Dallmeier electronic GmbH & Co.KG...
- Page 6 DIS-1/S and DIS-1/L Dallmeier electronic GmbH & Co.KG...
-
Page 7: Introduction
Introduction Thank you for deciding in favor of one of the most innovative recording systems from the company Dallmeier electronic. The MPEG-2 Video Streaming Server is used wherever top-quality pictures are required in real time. The high standard of picture quality is guaranteed by MPEG-2 technology. -
Page 8: Overview Of Features
DIS-1/S and DIS-1/L Overview of features The following table provides an overview of the technical features of the DIS-1/S and the DIS-1/L. Feature DIS-1/S DIS-1/L Video inputs Audio recorder Control display Hard disks (maximum) 2 HDD 4 HDD USB 1.1... -
Page 9: Safety Instructios
If the DIS is brought directly from a cold environment into a warm room, there is a possibility that condensation may form inside the DIS. Therefore always wait for 1-2 hours (for the condensation to evaporate) before putting the appliance into operation. Dallmeier electronic GmbH & Co.KG... - Page 10 What to do if the appliance has been damaged If an appliance has been damaged, you can smell burning or see smoke, switch off the appliance immediately and disconnect from the mains power supply (pull out the plug). Contact your service partner. Dallmeier electronic GmbH & Co.KG...
- Page 11 There is a risk of explosion if the incorrect battery type is used. Infringement and violation of these safety instructions can result in severe equipment failure and either limit or prevent the proper application of the security system DIS. Dallmeier electronic GmbH & Co.KG...
-
Page 12: Installation
The 19’’ installation kit, available as an option, permits the DIS-1S to be installed in a 19’’ cabinet. A height module will be required for installation. The 19’ supports are fastened at the side with two screws. Dallmeier electronic GmbH & Co.KG... -
Page 13: Installation Of The Dis-1L In A 19 Inch Rack
19’’ cabinet. Two height modules will be required for installation. Fit your system to the 19“ support and check that the feet of the device are correctly positioned in the four holes (A). The system does not have to be screwed to the support. Dallmeier electronic GmbH & Co.KG... -
Page 14: Appearance And Terminal Assignment
Indicates operational status. This is always illuminated while the device is switched on. The DIS-1/L can be equipped in addition with a CD-ROM drive (optional), which is then accessible through the front flap on the right. Dallmeier electronic GmbH & Co.KG... -
Page 15: Rear View / Terminal Assignment
USB (1.1) S-Video IN (Y/C) Ethernet S-Video OUT (Y/C) Power connection CVBS IN (Composite Video) Power switch Please connect up all components (cameras, monitor, network, etc.) before you connect the DIS to the power supply. Dallmeier electronic GmbH & Co.KG... -
Page 16: Set-Up Example 1
(10). For contact-controlled recording please use the contacts PIN 2 to 5 of Contact IN (3). The respective contact is always closed to PIN 1 or PIN 6 (GND = Ground). Dallmeier electronic GmbH & Co.KG... -
Page 17: Set-Up Example 2
Set-up example 2 The following example shows the control and evaluation set-up for several DIS systems using PView (PView Station). PView II software on PC or PView-Station Ethernet HUB or Switch Dallmeier electronic GmbH & Co.KG... -
Page 18: Starting Up For The First Time
Diagram. 5-1 In the case of the DIS-1/L the recording status is also indicated in the display on the front of the unit. In the case of the DIS-1/S the green LED for „Record“ flashes to indicate the start of recording. -
Page 19: Main Menu
Whether recording is in progress or not, you can see at the symbol in the upper left corner of the video picture (C). ! Recording is in progress. ! Recording is not in progress. The menu bar can be phased in and out by clicking the right mouse button. Dallmeier electronic GmbH & Co.KG... -
Page 20: Basic Settings
For setting the video standard (PAL or NTSC). SeMSy configuration: Data transfer between more than one DIS. Video Streaming: Configure DIS as a server and/or a client Event log: Error protocols. Password: For changing the password. Dallmeier electronic GmbH & Co.KG... -
Page 21: Selecting The Menu Language
In the Transparency box you can adjust the settings for the transparency of the menu bar. The higher the value set (0 to 5), the greater the transparency. Diagram. 6-4: Transparency: 0 Diagram. 6-5: Transparency: 5 Dallmeier electronic GmbH & Co.KG... -
Page 22: Bit Rate Display
Please note that recording should be switched off during this playback function, as the last picture otherwise will not be reached (due to constant recording), thereby prohibiting an automatic repeat of the playback from the track start. Dallmeier electronic GmbH & Co.KG... -
Page 23: Displaying A Live Picture
Setting Date and Time To set the date and time, select Common settings > Time In the dialog window in question are three tabs to choose from: Date/Time Time server Time zone Diagram. 6-9 Diagram. 6-10 Dallmeier electronic GmbH & Co.KG... -
Page 24: Date/Time
Diagram. 6-11 Diagram. 6-12 6.3.2 Time zone Under the Time zone tab you can set the time zone for your system. ! Mark the desired time zone in the list. ! Click on OK. Diagram. 6-13 Dallmeier electronic GmbH & Co.KG... -
Page 25: Time Server
To set the video standard you have to select Common settings > Video standard ! In this dialog box, select the standard which corresponds to the video signals at the video input. ! Confirm your selection by clicking OK. Diagram. 6-15 Diagram. 6-16 Dallmeier electronic GmbH & Co.KG... -
Page 26: Interfaces
DIS via the DaVid protocol. The DIS then forwards the signal to the camera connected to the serial output. Refer to the manual of the respective camera for the adjustable values of the COM port. Dallmeier electronic GmbH & Co.KG... - Page 27 DIS. Only at this point can the other functions be activated. Playback mode is exited with the stop command. The DIS menus cannot be accessed for the duration of the playback. Dallmeier electronic GmbH & Co.KG...
-
Page 28: Interfaces
! Select the protocol used for controlling the control unit in the Protocol field. Diagram. 6-20 If access by way of the external control is to be protected with a password, tick the checkbox located next to Password query. Dallmeier electronic GmbH & Co.KG... -
Page 29: Event Log
If you access the DIS menu after such an error has occurred, the list automatically appears. Diagram. 6-21 Diagram. 6-22 A corresponding message will remain on the screen as long as the error exists. Diagram. 6-23 Dallmeier electronic GmbH & Co.KG... -
Page 30: Changing Password
! Enter your new password once again at the virtual keypad. ! Confirm your entry by clicking on OK. ! Leave the Change Password dialog by clicking on OK. The new password is now active. Diagram. 6-26 Dallmeier electronic GmbH & Co.KG... -
Page 31: The Dis In The Network
Here you can give your system a name and enter the IP address. Note also the values for the network mask and the gateway address. All entries are made at the virtual keypad. Diagram. 7-2 Dallmeier electronic GmbH & Co.KG... -
Page 32: Alarm Hosts
DIS. The name automatically appears in the Alarm hosts list. ! Click on the IP address field and enter the IP address of the receiving computer (alarm Diagram. 7-5 host). Dallmeier electronic GmbH & Co.KG... - Page 33 If you don’t want to make any additional settings (e.g. Scheduler function or Copy), click on OK to save your settings. For further settings click back to the Settings tab. Diagram. 7-7 Dallmeier electronic GmbH & Co.KG...
- Page 34 ! While you are in the weekly plan, click once with the right mouse button. The area will now appear dark (see Diagram. 7-10). Dark areas are inactive time areas. The smallest time unit you can set is 15 minutes. Dallmeier electronic GmbH & Co.KG...
- Page 35 You also can remark certain sections within the inactive area as active by tracing the particular section with the left mouse button. Active and inactive time areas defined using the above-mentioned method are valid for the entire year. Dallmeier electronic GmbH & Co.KG...
- Page 36 ! Confirm your selection by clicking on OK. Diagram. 7-13 After confirming the security message which appears, the date you have selected will be entered in the list. All 24 hours are initially marked as inactive for this date. Diagram. 7-14 Dallmeier electronic GmbH & Co.KG...
- Page 37 ! Confirm the selection by clicking on OK. The new date now appears in the list with the setting of the previous date. Diagram. 7-16 Delete exceptions ! Mark the respective date in the list. ! Click on Delete. Diagram. 7-17 Dallmeier electronic GmbH & Co.KG...
- Page 38 ! Change the name and the IP address of the copied alarm host. All of the settings that were made for the original alarm host under Messages and Scheduler apply to this new alarm host. Diagram. 7-20 Dallmeier electronic GmbH & Co.KG...
- Page 39 Diagram. 7-21 The settings for the alarm host selected from the Alarm hosts list will only be enabled if you have marked the checkbox adjacent to the word active. Dallmeier electronic GmbH & Co.KG...
-
Page 40: Semsy Configuration
During a recording, the data coming from the encoder are saved on the hard disk and can be read out again via the decoder during playback. The decoder converts the digital signal back into an analog signal for viewing on the monitor. Dallmeier electronic GmbH & Co.KG... - Page 41 DIS No.1 DIS No.2 DIS No.3 Management System LAN / WAN Diagram. 7-25 In the above example, images can be retrieved from DIS no. 1 and 3 and read in at DIS no. 2 and 3. Dallmeier electronic GmbH & Co.KG...
-
Page 42: Video Streaming
Your DIS can transmit as well as receive data (video streams). The settings for this are made in the Video Streaming dialog box. 7.4.2 Multicast settings ! Open the „Video Streaming“ dialog box by clicking the Video Streaming selection. Diagram. 7-26 Dallmeier electronic GmbH & Co.KG... - Page 43 The multicast IP address is not to be confused with the IP address of a point-to-point connection. Transmitted video streams are identified via the multicast IP address and the port, giving the client information as to the sender of the data packets Dallmeier electronic GmbH & Co.KG...
- Page 44 As your DIS can be simultaneously configured as a server and a client, you must ensure that your DIS’s multicast IP address for client operation is not identical to that used for server operation. If the same address is used, your DIS would receive its own Dallmeier electronic GmbH & Co.KG...
- Page 45 This especially should be taken into account in the event of a repair, when the control PC no longer is accessible for the DaVid protocol. Only via the control PC can transmission without removing the list be suppressed. Dallmeier electronic GmbH & Co.KG...
-
Page 46: Configuration
If you would like to record only on one track, the following settings for creating tracks are not necessary. Attention All previously recorded pictures will be automatically erased if a track is reassigned or if several tracks are configured. Dallmeier electronic GmbH & Co.KG... - Page 47 ! Click the Name field and enter the desired track designation using the virtual keyboard. ! Click Apply. Diagram. 8-5 If you need more tracks at your disposal, proceed as described above. Dallmeier electronic GmbH & Co.KG...
-
Page 48: 8.1.2 Setting Options
Input: Here you can select which encoder you would like to use for digitalization. „Encoder 1“ is set by default for DIS-1/S and DIS-1/L. Bit rate: The bit rate is a measure of the degree of compression of video data; it thus has a direct impact on the picture quality of the recording. - Page 49 The variable setting changes the bit rate in accordance with the activity (changes) in the picture. You can limit the fluctuation of the bit rate by making the appropriate setting, which is done as a percent. Dallmeier electronic GmbH & Co.KG...
-
Page 50: Deleting A Track
Track settings dialog. When the Delete button is clicked once, the recorded pictures as well as the track definition are deleted. The recordings will not be deleted until you have answered the security prompt with Yes. Dallmeier electronic GmbH & Co.KG... -
Page 51: Selecting Record Mode
! Select the desired mode of recording in the Mode (C) field Diagram. 8-10 8.2.1 Permanent Select Permanent to record without interruption. No other settings are required for this recording mode. Diagram. 8-11 Dallmeier electronic GmbH & Co.KG... -
Page 52: Contact
If the contact used is an „Opener“ (idle state = contact closed), please mark the checkbox Invert signal (E). Diagram. 8-13 ! In the Duration (sec.) box, set the recording duration in seconds (D). Dallmeier electronic GmbH & Co.KG... -
Page 53: Contact Start / Stop
With the setting IR Start/Stop, recording can be controlled through an external keyboard. The receiver for the IR keyboard is connected to the IR port at the rear of the DIS. This function is not yet supported. Diagram. 8-15 Dallmeier electronic GmbH & Co.KG... -
Page 54: Motion Detection
If the set threshold value is above the current value, recording occurs. Diagram. 8-18 A symbol on the upper left part of the screen indicates whether a recording is being made or Recording recording not. Dallmeier electronic GmbH & Co.KG... - Page 55 Diagram. 8-20 1 ....2 ........3 ..........4 ....Event Within a continuous recording, individual events captured in the event recording (see 8.2.7) are evaluated as a single event and only one marker is set. Dallmeier electronic GmbH & Co.KG...
-
Page 56: Configuring Markers For Events
(see chapter 7.2.1 for more information). Manually setting markers In addition to internally triggered markers (e.g. contact or motion), a marker can be externally set. Markers only can be set using the DaVid protocol and a control PC. Dallmeier electronic GmbH & Co.KG... -
Page 57: Recording „Off
Setting the record mode to Off and confirming the setting (by clicking on OK) stops the recording. A white square appears in the top left corner of the screen to indicate that recording has stopped. Diagram. 8-22 Dallmeier electronic GmbH & Co.KG... -
Page 58: Scheduler
(Recording = not active). The various recording modes are marked with different colors. As supplied, the recording mode set for the entire time period is Permanent. Dallmeier electronic GmbH & Co.KG... -
Page 59: Setting Time Limits For Recording Modes
(in the example here, Motion). You can then cancel the previous setting, either partially or in full, with a single click or by drawing a rectangle. Diagram. 8-27 Dallmeier electronic GmbH & Co.KG... -
Page 60: Deactivating Recording
All settings are implemented by clicking on OK. Important! If you click on Cancel, none of the settings made will be implemented. All settings made before the last time the Scheduler dialog box was opened will, however, be retained. Dallmeier electronic GmbH & Co.KG... -
Page 61: Exceptions In The Weekly Plan
! Confirm your selection by clicking OK. Diagram. 8-30 The desired date will be entered in the list (A). For the time being the recording mode entered for this day of the week will not be active (B). Diagram. 8-31 Dallmeier electronic GmbH & Co.KG... - Page 62 ! Select the next date in the Calendar which opens. ! Confirm your selection by clicking on OK. Diagram. 8-33 The new date will now appear in the list with the setting for the previous date. Diagram. 8-34 Dallmeier electronic GmbH & Co.KG...
- Page 63 ! Mark the date concerned in the list. ! Click on the Delete button. Diagram. 8-35 The settings in the weekly plan will only be implemented if the Scheduler is active in the Mode box in the Recording settings menu. Diagram. 8-36 Dallmeier electronic GmbH & Co.KG...
-
Page 64: Video Settings
For this to happen, click once inside the dialog window with the right mouse button. To restore the normal view of the dialog window, click again on the right mouse button. Diagram. 8-39 Diagram. 8-40 Dallmeier electronic GmbH & Co.KG... -
Page 65: Noise Filter
With this selection, a value is set between 0 and 31 using the slider bar. This set value will be used for the entire recording session (static). The best results are obtained when a value of 14 is set. Diagram. 8-41 Dallmeier electronic GmbH & Co.KG... - Page 66 (dynamic). The static value setting does not affect the dynamic noise filter. Click on the Standard button to automatically select the dynamic noise filter. The value for the static noise filter will be set to 5. Dallmeier electronic GmbH & Co.KG...
-
Page 67: Playback Mode
In this example there is a red point to be seen on the left. This means that the system is recording. To enter playback mode, click on the Play button in the menu bar. Play Diagram. 9-3 Dallmeier electronic GmbH & Co.KG... -
Page 68: Playback Functions
11 Fast forward The speed can be adjusted by clicking repeatedly: 1.5 x, 2 x, 4 x, ... 1024 x 12 End of track Jump to end of the track (last picture on the track) Dallmeier electronic GmbH & Co.KG... -
Page 69: Fading Out The Menu Bar
If the configuration/playback mode was exited by clicking on Exit, the characters appear in white against a black background (Fig. 9-8). Access to the configuration menus only can be granted by entering a password. Dallmeier electronic GmbH & Co.KG... -
Page 70: Search Functions
(from the first to the last picture) in most cases. Even minimal movements of the sliding bar translate into large time gaps when utilizing the entire area. You can adjust the area to be controlled by following the steps described below. Dallmeier electronic GmbH & Co.KG... - Page 71 ! Click on the bar displaying the sector Diagram. 9-13 (Diagram. 9-13, C) and move it to the area in which you are interested. Dallmeier electronic GmbH & Co.KG...
-
Page 72: Direct Picture Search
We recommend therefore that you first select an event in the events list and have it shown on the monitor. From here you can now select earlier or later events as required. Dallmeier electronic GmbH & Co.KG... - Page 73 Starting point for the steps in forward or reverse direction is the picture visible on the monitor prior to triggering the interval search. Here, too, it is possible to move the menu to a different position and/or have it partly shown on a transparent background. Dallmeier electronic GmbH & Co.KG...
-
Page 74: Zoom Function
Click a second time to show the taskbars again. ! To specify a new section of the image, click once within the image with the left mouse button. Then proceed as described above for the new section. Diagram. 9-20 Dallmeier electronic GmbH & Co.KG... -
Page 75: Moving The Zoom Window
! Click with the left mouse button and keep it depressed. You now can move the position of the section within the small window. Diagram. 9-21 9.3.2 Exiting the zoom function Click again on the button Zoom (D) to exit Zoom mode. Diagram. 9-22 Dallmeier electronic GmbH & Co.KG... -
Page 76: 10 Export Function
(from the beginning of the track). If multiple hard disks and partitions are installed, the „oldest pictures“ will be deleted from the bottommost track in the „Track settings/ data storage tab“ dialog box (see chapter 8.1.1, Creating tracks). Dallmeier electronic GmbH & Co.KG... -
Page 77: 10.2 Exporting To Cd
! The exact time at which the export process will begin can be set below the date using the arrow keys. For the end of the picture sequence (stop), follow the same procedures as described for the start. Diagram. 10-5 Dallmeier electronic GmbH & Co.KG... - Page 78 ! Enter a clear name for the picture sequence to be exported – use this name for saving on ! The file name is then accepted by clicking on ! Click on the Next button. Diagram. 10-8 Dallmeier electronic GmbH & Co.KG...
- Page 79 Checking the current files on a multi- session CD It is recommended that you check the existing files on CDs copied on a multisession basis. ! Click on Content to display the contents of a CD (Diagram. 10-11). Diagram. 10-11 Dallmeier electronic GmbH & Co.KG...
-
Page 80: 10.3 Exporting To Dvd
Exiting the export function ! Click on Close to exit the Export dialog box. Diagram. 10-13 10.3 Exporting to DVD The settings and procedure to be followed are identical to those described in section 10.2, Exporting to CD. Dallmeier electronic GmbH & Co.KG... -
Page 81: 11 Import Function
If more than one device is connected, select your CD-ROM drive from the Source box. The files saved on the CD are automatically listed (Diagram. 11-2). ! Mark the file you wish to view. ! Click on Open. Diagram. 11-2 Dallmeier electronic GmbH & Co.KG... - Page 82 In order to see the content of another CD all you have to do is ! change the CD and then ! click on the button Reload. Diagram. 11-4 Exiting the import function Click on Close to exit the import function. Dallmeier electronic GmbH & Co.KG...
-
Page 83: 12 Information Menu
Diagram. 12-2 ! Click on the Extended button for information on the hard disk(s) which have been installed. ! Click on OK to close the individual menus again. Diagram. 12-3 Dallmeier electronic GmbH & Co.KG... -
Page 84: 13 Exiting The Main Menu
If you had previously selected Off in the setting Record > Record settings > Mode, there will be no recording when you exit the operating and setting level. To return to the main menu you must log on again with your password. Dallmeier electronic GmbH & Co.KG... -
Page 85: 14 Shutting Down The System
To switch off your DIS, click first on System shut down. Diagram. 14-1 If you answer the security prompt with Yes, you will be able to disconnect your system from the power supply after approximately 10 seconds. Diagram. 14-2 Dallmeier electronic GmbH & Co.KG... - Page 86 DIS-1/S and DIS-1/L Dallmeier electronic GmbH & Co.KG...
-
Page 87: Appendix
Appendix Dallmeier electronic GmbH & Co.KG... -
Page 88: A 1 Contact Assignment Of Contact In
PIN 6 are used as ground refer- ence point. External contacts (e.g. alarm contacts) are connected to the PINs 2 to 5. External contacts for recording control Memory requirement MPEG-2 compression Memory requirement for different bit rates. Dallmeier electronic GmbH & Co.KG... -
Page 89: A 3 Technical Data
ISO/IEC 11172-2 (MPEG-1) Layer I/II Multiplex standards ISO/IEC 11172-2 (MPEG-1) ISO/IEC 13818-2 (MPEG-2) Software upgrade Flash ROM, teleservicing and update option through LAN, ISDN, PSTN Configuration Trough LAN/WAN: Pview local: OSD and/or infrared remote control Dallmeier electronic GmbH & Co.KG... - Page 90 RJ45 DIS 1-S+DIS-1L; internal IDE interface DIS 1-L; additional access to HD through RAID 0+1 controller HARD DISKS Memory capacity DIS-1/S max. 2HDD** DIS-1/L max. 4HDD** ** current size available on request or from www.dallmeier-electronic.com Dallmeier electronic GmbH & Co.KG...
- Page 91 Power cable / Mouse / Manual Infrared remote control (option) / Jog Shuttle (option) OTHER DATA Power supply 100 VAC – 240 VAC, 50/60 Hz Mean power input DIS-1/S and DIS-1/L approx. 28 W Temperature 0 to +50° C Humidity 5 - 95 % Weight max.
-
Page 92: A 4 What Is Mpeg
(artifacts) becoming clearly visible in the picture. JPEG compression always entails a loss of data, hence it is impossible to restore the picture to its original condition. Dallmeier electronic GmbH & Co.KG... - Page 93 With M-JPEG (Motion-JPEG), each individual picture of the video sequence is compressed in accordance with the JPEG technique. This is particularly good for exact imaging because each single picture is present in full. However, the amount of memory required is still relatively high. Dallmeier electronic GmbH & Co.KG...
- Page 94 A sequence of I, P and B-frames is called a GOP (Group of Pictures). The following diagram shows the relationship between the various frames. P-frames always have preceding I-frames or P-frames as reference, whereas B-frames use both preceding and follow-up I-frames or P-frames. Dallmeier electronic GmbH & Co.KG...
- Page 95 MPEG-2 is regarded as the standard for digital TV studio quality with a variable data rate of typically 1 to 16 Mbps. Lower bit rates (500 kbps) or higher bit rates (e.g. in studio systems) are also permitted however. Dallmeier electronic GmbH & Co.KG...
- Page 96 % Resolution: 1920 x 1152 with up to 80 MBit/s (HDTV) 1440 x 1440 with up to 60 MBit/s (HDTV) 720 x 576 with up to 15 MBit/s (digital TV and DVD) 352 x 288 with up to 4 MBit/s (VHS) Dallmeier electronic GmbH & Co.KG...
- Page 97 P r o d u k t : DIS-1/S, DIS-1/L product: H e r s t e l l e r : Dallmeier electronic GmbH & Co.KG manufacturer: Cranachweg 1 D - 93051 Regensburg Wir erklären als Hersteller eigenverantwortlich, dass oben genannte Produkte folgende EG-Richtlinien erfüllen:...
