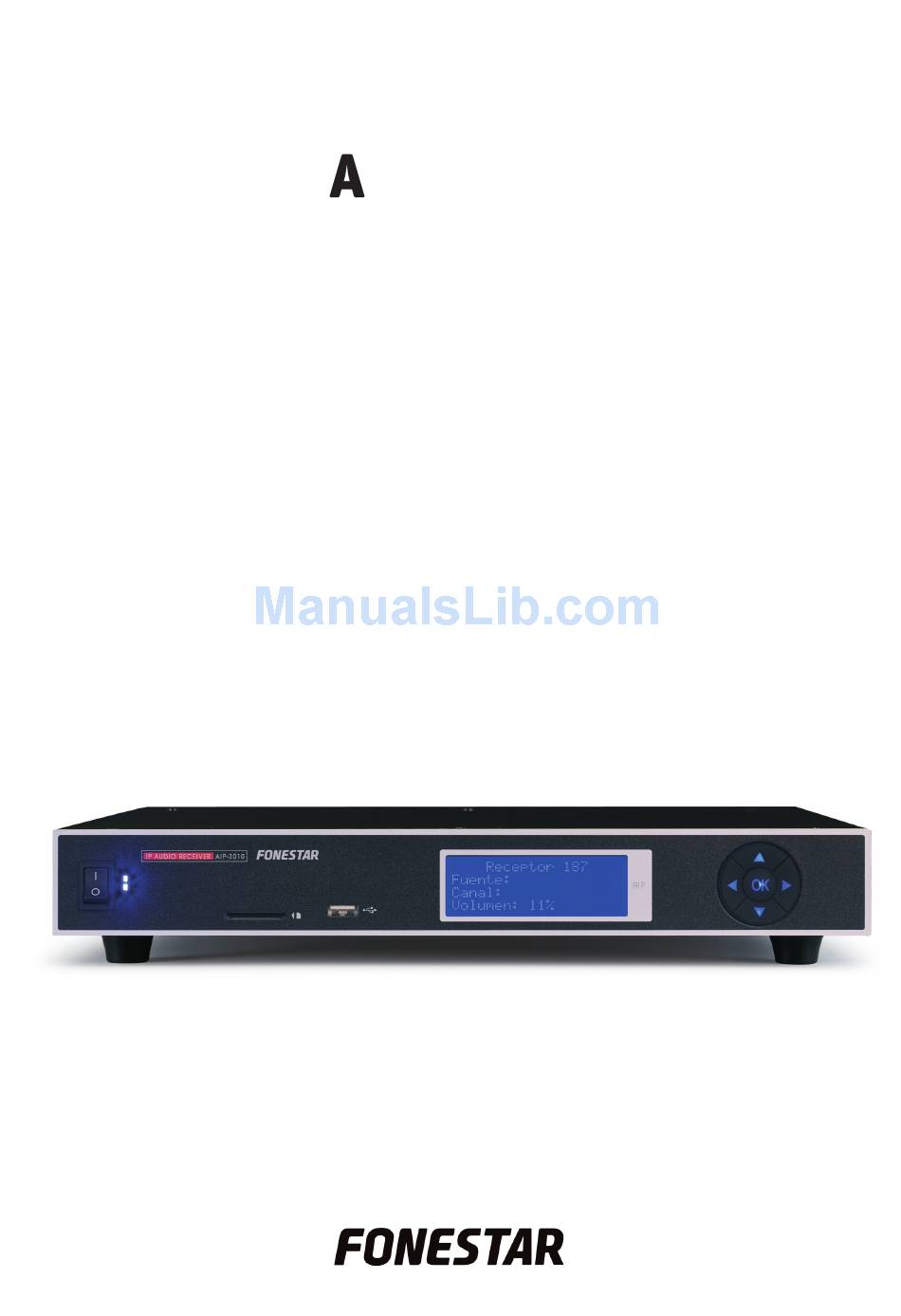

- Page 1 IP-3010 IP AUDIO RECEIVER WITH LINE OUTPUT INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instruc- tions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketabi- lity or fitness for any other use. - Page 4 OK again. AIP-GO - After connecting the AIP-3010 receiver to the local network, install the AIP-Go software in the PC. To do this you must insert the CD supplied into your computer and follow the installation instructions shown on the screen.
- Page 5 Actions/acciones: for activating an event in each one of the 4 output relays/relés on each selected AIP-3010 receiver (see point 7.C, Configurar>E/S, in this section for more information). The relays that will be activated in each one of the devices will be shown using numbers 1-4 in the destiny device/dispositivos de destino window.
- Page 6 d.- Quality/calidad: for selecting the message audio quality. Select low quality/baja (64 kbps) if you have a loaded network or normal quality/normal (128 kbps) or high/alta (320 kbps) if you have a network with enough bandwidth. e.- Specific volume/volumen específico: if you select this option the volume of the instant message transmitted can be adjusted.
- Page 7 C.Closed/cerrado: the event will be activated if the sensor detects circuit closure. C.Open/abierto: the event will be activated if the sensor detects an opening in the circuit. D.- Options/opciones: for remotely upgrading/actualizar or restarting/reiniciar the selected AIP-3010 receiver. 8.- Find in the map: for finding the selected receiver if it is within any area image.
- Page 8 Repeat all/repetir todo: with this option selected, all the tracks will be repeated indefinitely. g.- Start when the channel is created/iniciar al crear canal: with this option selected the tracks will start being played and will be available for the AIP-3010 receivers in our network as soon as the channel is created.
- Page 9 h.- Create everytime the application is started/crear siempre al iniciar la aplicación: if this option is selected, the channel will be created everytime the program is started. Once the channel has been set, press the Create/crear option and a channel playback window will appear. The following are the available options: Playback controls: previous track, playback/pause, following track and stop playback.
- Page 10 Groups Click on the Groups/grupos icon to open the following window: For creating groups to be able to manage several receivers together. Areas Click on the Areas/Área icon to open the following window: This option lets you load an image in order to locate the receivers grafically on an installation map or diagram. A.- Options/opciones: 1.- Manage areas/gestionar áreas: to create or delete areas.
- Page 11 Action Control Click on the Action Control/control acciones icon to open the following window: 1.- Action window: shows the actions taking place or registered. Each action creates a warning (number of actions being executed in red) in the Action Control/control de acciones icon. 2.- Cancel/cancelar: to cancel any action in process.
- Page 12 1.- Message/mensaje Window: shows the programmed messages in process. 2.- New/nuevo: for creating a new programmed message. A.- Configuration/configuración: for establishing the message transmission date and time parameters and selecting the audio track to be played. B.- Devices/dispositivos: for selecting the receivers that the programmed message is to be sent to and activating an event in the output relays of each one independently.
- Page 13 Events To set events that have been activated by a change of state in the input sensors on the receivers. Click on the Events/eventos icon to open the window below: 1.- List of programmed events/lista de eventos programados: shows the events in process. 2.- New/nuevo: for creating a new event.
-
Page 14: Audio Priority
B.- Devices/dispositivos: select the devices to respond to the event being created. The output relays/relés that will be activated in each receiver can be selected. You can also select independently which receivers will play the audio file selected in the event configuration. In this case you can also choose the output volume/volumen específico. -
Page 15: Technical Specifications
TECHNICAL SPECIFICATIONS AIP-3010 CHARACTERISTICS IP audio receiver. For audio reception through streaming using multicast through a local area network (LAN). Selection of the audio channel and setting through the front keypad and remotely through a PC. General use separate inputs and outputs. -
Page 16: Warranty
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
