Transition Networks SDSTX3110-121-LRT-B Quick Start Manual

SDSTX3110-121-LRT-B

Quick Start Guide

Introduction

The SDSTX3110-12x-LRT-B is an innovative Industrial 1 or 4 secure serial port-to-Ethernet device server with one or four RS232/422/485 DB9 ports
and two (2) 10/100Base-TX RJ-45 ports. Standard features include TCP/IP interface and versatile operation modes: Virtual Com, Serial Tunnel, TCP Server, TCP
Client, and UDP. The SDS-Manager Windows utility can configure multiple devices and set up Virtual COM mappings. See the full SDSTX3110-12x-LRT-B User
Guide for important Safety Warnings, as well as product numbers, features, applications, dimensions, hardware installation, management software, specs,
troubleshooting, and service, warranty, and tech support information.

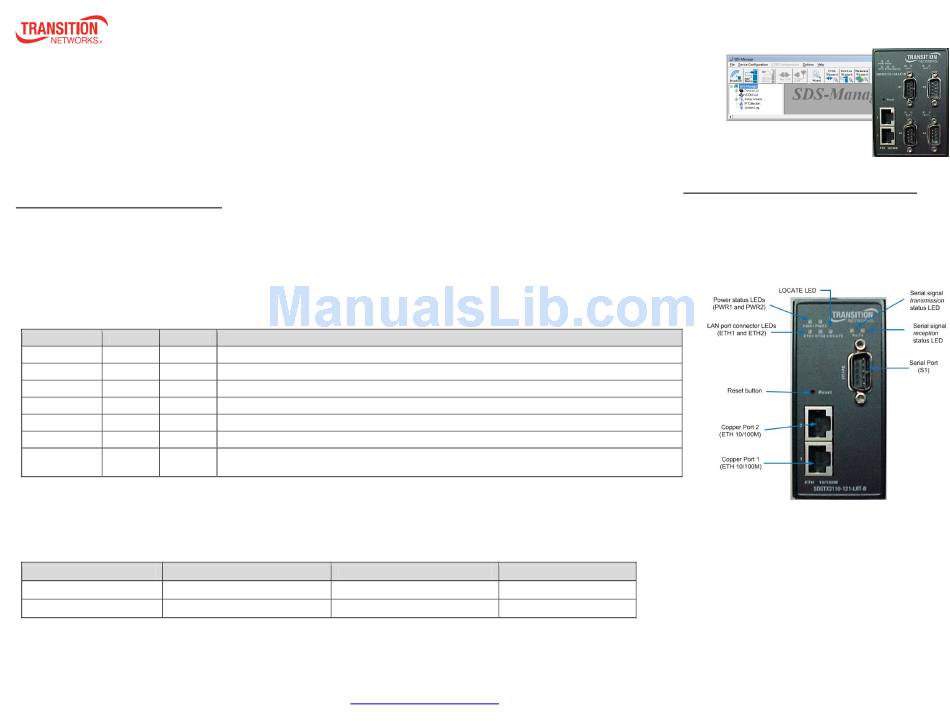

Hardware Overview

Mounting Options: Install the SDS on 1. DIN rail, 2. Panel or wall, or 3. Rack mount. See the full SDSTX3110-12x-LRT-B User Guide for details.
LEDs: Power status LEDs, LAN port LEDs, Reset button, Ethernet port, Serial signal transmission & receipt
status LEDs, Serial port, and LOCATE LED.
LED Color Status
PWR1/PWR2 Green On
PWR2/PWR2 Green Off
ETH1/ETH2 Green On
ETH1/ETH2 Green Off
Rx Red On
Tx Green On
LOCATE
Green On

Connection

10/100BASE-T(X) Pin Assignments: The device has a standard Ethernet port. Based on link type, it uses CAT 3, 4, 5, or 5e UTP cables to connect to
other network devices (PCs, servers, switches, routers, or hubs). On 10/100BASE-T(X) cables, pins 1 and 2 transmit data, and pins 3 and 6 receive data.
Cable
10BASE-T CAT 3, 4, 5 100-ohm
100BASE-TX CAT 5 100-ohm UTP
:
DB9 Console Port Wiring The serial port can be connected using a DB9 cable. The DB9 connector supports RS232 / RS422 / RS485 operation modes.
33687 Rev. A
SDSTX3110-124-LRT-B Industrial Serial Device Servers
and
Power is ON and function is normal.
Power is OFF.
Port is connected and running at 10 or 100Mbps.
Port is not connected.
Receiving serial data on the port below this LED.
Transmitting serial data on the port below this LED.
To locate a specific SDS among many devices, use SDS-Manager to light the SDS front panel
LOCATE LED.
Type Max. Length
UTP 100 m (328 ft)
UTP 100 m (328 ft)
https://www.transition.com
Description
Connector
RJ-45
RJ-45
SDSTX3110-12x-LRT-B Quick Start Guide
Page 1 of 2
