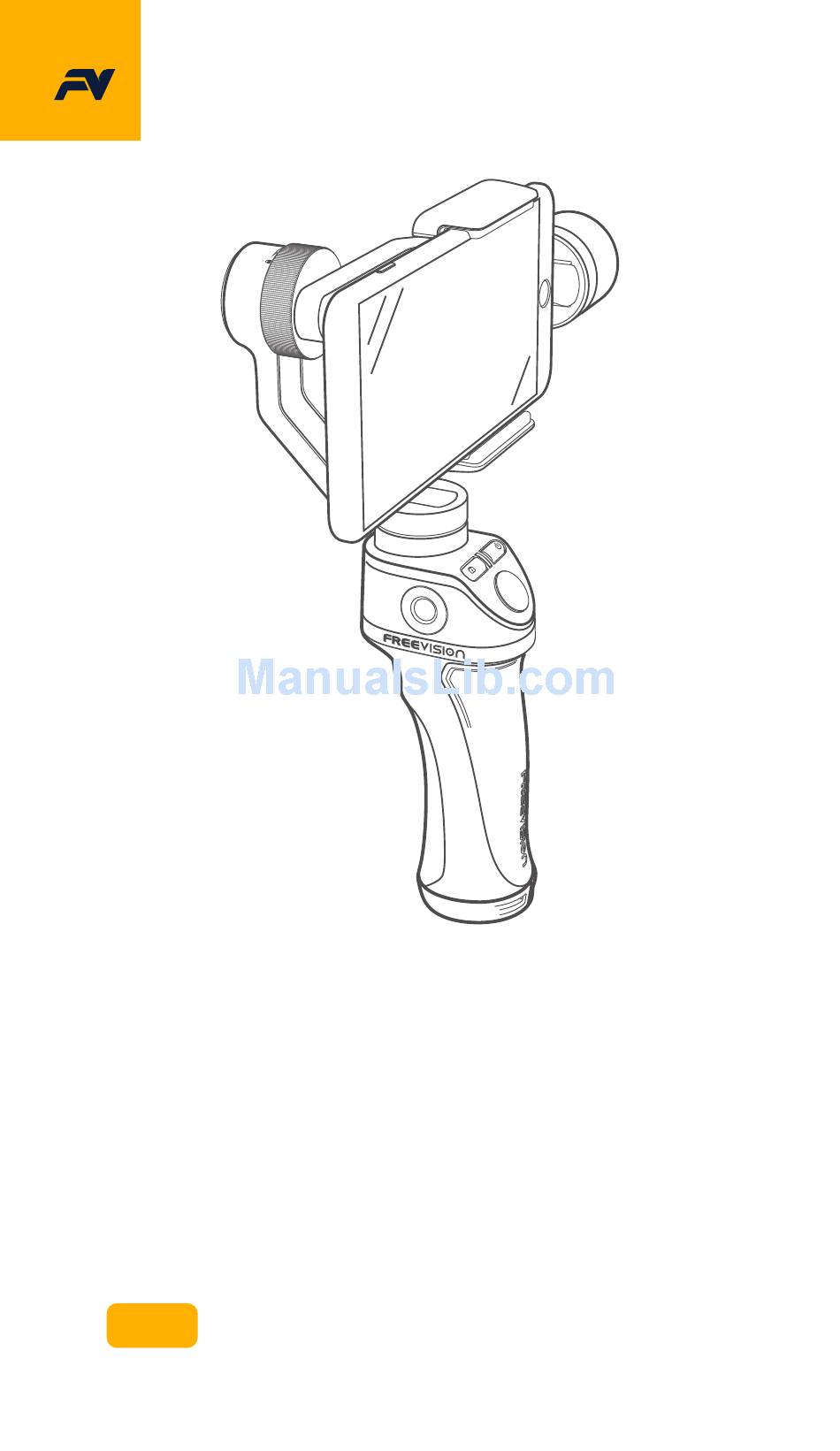

- Page 1 VILTA User Manual V1.0 2017.12...
-
Page 2: Table Of Contents
VILTA Contents Overview Packing List Product Overview Quick Start App Installation Smartphone Installation and Balance App Connection Start Up Control Panel Introduction App Menu Introduction App Operation Specifications Specifications Parameter Technical Parameter Other Specification Warranty Information... -
Page 3: Packing List
VILTA Packing List VILTA Portable Bag Charging Cable Lanyard User Manual... -

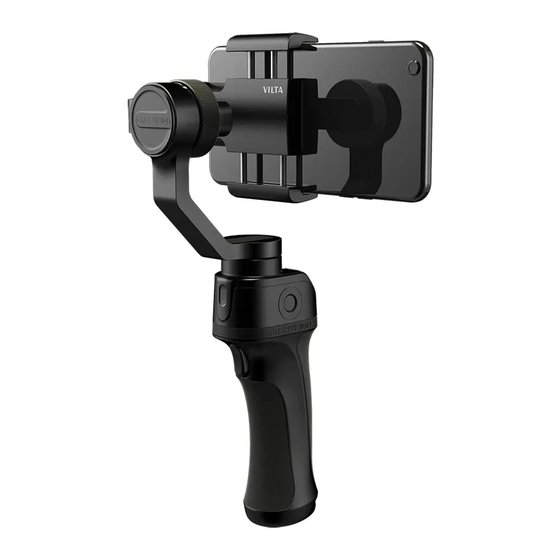

Page 4: Product Overview
VILTA Product Overview Adjustment Arm Smartphone Mounting Clip Tilt Axis Roll Axis Smartphone Detection Balance Sensor Adjustment Knob Pan Axis Shutter Button Power Button Joystick Mode Button Handle Grip Lanyard Hole Status Indicator Micro-USB 1/4 Inch Charging Port ScrewPort... -
Page 5: App Installation
VILTA App Installation Download App on Freevision’ s official website www.freevisiontech.com. For iOS user, search“FV Share”in App Store. Available on the App Store For Android user, search “FV Share”in Google Play or scan below QR Code Get it on Android 4.3 above or iOS 9.0 above required. -
Page 6: Smartphone Installation And Balance
VILTA Smartphone Installation & Balance VILTA won t work unless mounting the phone. ’ Smartphone detection can be closed in App. Always keep your phone well balanced in level prior to power on, or it will greatly affect working performance. - Page 7 VILTA Smartphone Balance Balance Adjustment Knob Unscrew the balance adjustment knob. Slightly move the adjustment arm. When your phone can stay level and balanced, screw up the balance adjustment knob. Write scale of adjustment arm for easy reuse.
- Page 8 VILTA Power On/Off Power Button Long press power button for 3 seconds to power on/off. If system halted, long press power button for 7.5 seconds to mandatory shutdown.
-
Page 9: App Connection
VILTA App Connection Turn on bluetooth and unlock the phone screen rotation. Ensure phone can be displayed horizontally. Open App, tap Connect to enter the device list. Choose your gimbal to connect. The light of shutter button will go out after successfully... -
Page 10: Control Panel Introduction
VILTA Control Panel Instruction Shutter Button Shutter Button Single Tap Photo Mode Take Photo Double Tap Selfie Mode Front & Back Camera Switch Long Press for 2s Video Mode Recording On/Off Status Indicator Status Indicator... - Page 11 VILTA Red light glints Warning (Abnormal Condition) Green light glints Busy/Auto Calibration Abnormal conditions of VILT Ainclude absence of phone, motor damage, internal fault, etc. Mode Button Mode Button Semi-follow Mode (default) Single tap Mode Button Status Indicator is yellow Tilt and Roll Axes are locked.
- Page 12 VILTA Follow Mode Double tap Mode Button Status Indicator is red Roll Axis is locked. Pan and Tilt Axes smoothly move with handle. Lock Mode Quadruple tap Mode Button Status Indicator is green Tilt, Roll and Pan Axes are locked.Smartphone always keeps the current shooting direction.
- Page 13 VILTA Joystick Basic Function When toggling joystick to left or right, VILTA will rotate corresponding level direction. When toggling joystick upward or downward, VILTA will rotate corresponding vertical direction. Direction of control can be modified in advanced setting of App.
- Page 14 When fully charged, the status indicator is green. Please apply charging cable with standard configuration to charge VILTA . When the power button glints,please charge VILTA . When the charging current is 2A, it takes 2.0 hours to be fully charged, which allows 17 working hours.
-
Page 15: App Menu Introduction
VILTA App Menu Introduction General Settings Camera Video Resolution, Panorama Quality Gimbal Rotation Speed Settings, Dead Zone Settings, Mode Button+Toggle Joystick, Phone Detection, Gimbal Calibration, Reset All Joystick Sensitivity, Speed, Dead Zone, Direction Information Gimbal Battery Information, Gimbal Information, App... - Page 16 Preview and storage location of photos and videos. IntelliTrace to turn on IntelliTrace. Tap to turn off IntelliTrace. Frame the subject and VILTA will track in real time. Answering a phone when recording or in IntelliTrace, the shooting will be automatically stopped.
-
Page 17: App Operation
Display the current flashlight status to switch working state App Operation Photo Mode Panorama to enter panorama. Choose 180° , 330° , 3*3， 3*5, VILTA will automatically shoot and compund panorama. Photo will be automatically saved to documents. Video Mode IntelliTrace 1. - Page 18 A on App. Likewise, the rest shooting points can be done in the same approach. According to the shooting points, VILTA will automatically generate shooting path. Adjust smoothness of the shooting path.
- Page 19 VILTA Slow Motion Video 1. Tap and open Slow Motion. 2. Tap to start recording. Tap to exit recording. Videos will be automatically saved to documents. Photo/Video Editing 1. Photo Editing Enter App home page and tap on the bottom...
-
Page 20: Specifications Parameter
VILTA 2. Video Editing Enter App home page and tap on the bottom. Choose Videos to choose the video and editing (Add Video, Video Editing, Add Music, Filter, Adjust) to confirm editing Specifications Parameter Name VILTA VT10 Item No. Dimensions... -
Page 21: Other Specification
VILTA Maximum Control Speed Adaptive Rotation Speed（±500°/s) 04 Accuracy Static Accuracy Dynamic Accuracy Tilt: 0.003° Tilt: 0.02° Roll: 0.003° Roll: 0.02° Pan: 0.005° Pan: 0.03° 05 Battery Battery Type Intelligent Lithium Battery Voltage 7.4V Working Current Static: 100mA Dynamic: 5A... - Page 22 From the purchase date, you enjoy free repair within 12 months with this card if it occurs any quality problems. If your VILTA meets the following requirements, you can enjoy the warranty policy： If within 7 days of purchase and it occurs manufacturing defect, the customer can choose to have a full refund(based on the invoice price) or exchange the product for a new one;...
-
Page 23: Warranty Information
VILTA Non Warranty Rules If your VILTA falls under one of the following situations, we will charge appropriate maintenance cost： A man-made problem affecting the quality or product; Damage caused by refitting, disassemble, or opening of the shell; An uncontrollable incident (earthquake, fire, flood, war) resulting damage;... - Page 24 VILTA Customer Information Name: TEL: Zip Code: Email: Address: Dealer Information Name: TEL: Zip Code: Email: Address: Product Information Item No.: Product Code: Purchase Date:...
- Page 25 VILTA Warranty Card...
- Page 26 VILTA IC WARNING ISEDC RSS warning This device complies with Industry Canada licence-exempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,including interference that may cause undesired operation of the device.
- Page 27 VILTA ISEDC Radiation Exposure Statement: This equipment complies with ISEDC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Cet appareil est conforme aux limitesd'exposition de rayonnement RF ISEDC établiespour un environnement non contrôlé.
- Page 28 VILTA FCC WARNING Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:...
- Page 29 VILTA Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 30 VILTA Feel free to share your photos and videos with us and we might put them on our website. Facebook.com/FreevisionVILTA Twitter.com/FreeVisionVILTA instagram.com/freevision_vilta...
