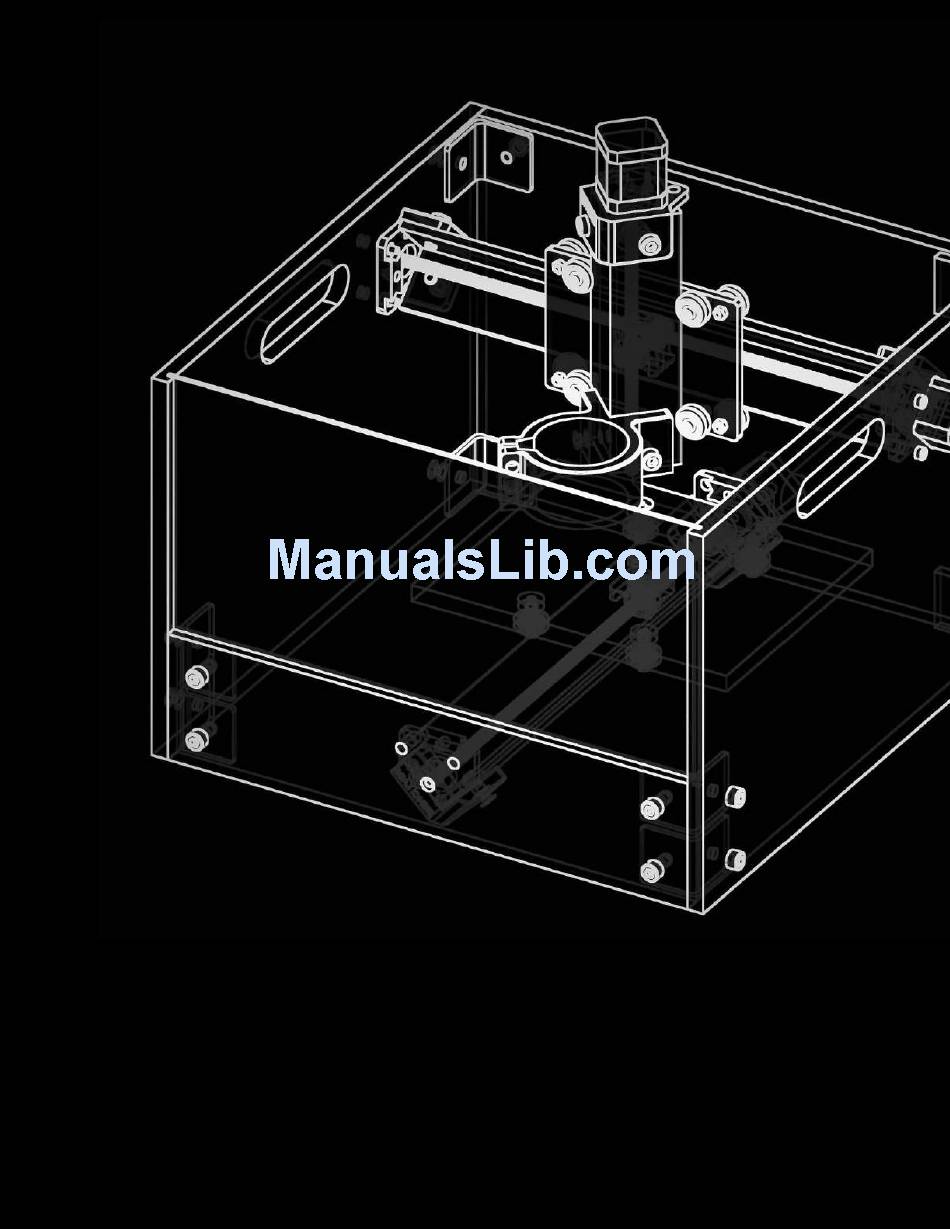

- Page 1 Mill One V2 Assembly Manual...
- Page 2 Throughout this policy the words "we", "us" and "our", or “Sienci Labs” will be used to refer to Sienci Labs Inc. herein and “Mill One” or “machine” will refer to Sienci Labs’ Sienci Mill One product. Additionally, the words "you", "your", “user”, and “operator”...
- Page 3 LIST OF PARTS M3-8 M5-N M5-NE M5-W M5-25 24 x 1 0 x 12 x M8-N M8-15 M8-25 P-NH 2 8x 1 0x 1 2x P-AM P-RM P-RB P-EH P-EC E-ARD E-CNC E-HJ E-SDH E-SDC AR-400 AR-200 LS-400 LS-200 M-FB F-AC Tools: Phillips...
- Page 4 STEP 1 Lead Screw Nut Holding Assembly P-NH M3-8 Allen **If you have purchased the anti-backlash nut kit for your Sienci Mill One, then the lead screw assembly above will be replaced by the anti-backlash nut assembly. Follow the instructions provided on the bag of the kit instead.
- Page 5 STEP 2 XZ Gantry Assembly G-XZ M5-25 M5-N Allen...
- Page 6 STEP 3 Y Gantry Assembly M5-25 M5-N Allen...
- Page 7 STEP 4 XZ Gantry Assembly M5-25 M5-W M5-N M5-NE Allen Wrench Match the eccentric nuts (M5-NE) to the larger holes, and the regular nuts (M5-N) to the smaller holes...
- Page 8 STEP 5 XZ Gantry Assembly M5-25 M5-W M5-N M5-NE Allen Wrench Match the eccentric nuts (M5-NE) to the larger holes, and the regular nuts (M5-N) to the smaller holes...
- Page 9 STEP 6 Y Gantry Assembly M5-25 M5-W M5-N M5-NE Allen Wrench Match the eccentric nuts (M5-NE) to the larger holes, and the regular nuts (M5-N) to the smaller holes...
- Page 10 STEP 7 Mounting the Motors to the Rails P-AM M3-8 Allen 1 2x Make sure that the motor connector is facing downwards...
- Page 11 STEP 8 Mounting the Motors to the Rails AR-400 AR-200 M8-15 Allen...
- Page 12 STEP 9 Attaching Z-Lead Screw to XZ Gantry LS-200 Allen Make sure to push coupler all the way onto lead screw before tightening...
- Page 13 STEP 10 Attaching the Z-Rail to the XZ Gantry Allen Wrench Rotate the eccentric nuts (M5-NE) until gantry slides onto the rail easily Make sure to push coupler all the way onto motor shaft before tightening...
- Page 14 STEP 11 Attaching the X-Lead screw to the XZ Gantry LS-400 and Calibration Allen Wrench Rotate the eccentric nuts (M5-NE) to tighten the grip of the wheels on the rail. Tighten until you can no longer rotate the V Groove bearings (VB) with your fingers.
- Page 15 STEP 12 Attaching the X-Rail to the XZ Gantry Allen Wrench Rotate the eccentric nuts (M5-NE) until gantry slides onto the rail easily Make sure to push coupler all the way onto motor shaft before tightening...
- Page 16 STEP 13 Attaching the Z-Rail to the XZ Gantry and P-AM M8-15 Calibration Allen Wrench Rotate the eccentric nuts (M5-NE) to tighten the grip of the wheels on the rail. Tighten until you can no longer rotate the V Groove bearings (VB) with your fingers.
- Page 17 STEP 15 Attaching Lead Screw to Y Gantry LS-400 Allen Make sure to push coupler all the way onto lead screw before tightening...
- Page 18 STEP 15 Attaching the Y-Rail to the Y Gantry Allen Wrench Rotate the eccentric nuts (M5-NE) until gantry slides onto the rail easily Make sure to push coupler all the way onto motor shaft before tightening...
- Page 19 STEP 16 Attaching the Y-Rail to the Y Gantry P-AM M8-15 Allen Wrench Rotate the eccentric nuts (M5-NE) to tighten the grip of the wheels on the rail. Tighten until you can no longer rotate the V Groove bearings (VB) with your fingers.
- Page 20 STEP 17 Attaching Y Gantry to Frame M8-25 M8-N Allen...
- Page 21 STEP 18 Attaching XZ Gantry to Frame M8-25 M8-N Allen...
- Page 22 STEP 19 Attaching the Assemblies...
- Page 23 STEP 20 Attaching Frame Brackets M-FB M8-15 Allen 1 6 x Twist on bolts on all corners loosely, then tighten on a flat surface...
- Page 24 STEP 21 Attaching Router Mount P-RM M8-15 Allen...
- Page 25 STEP 22 Attaching Router P-RB M8-25 M8-N Allen P-RM router mount fits the Makita RT0701 router without P-RB bushing, bushing only required to mount Ridgid R24012 router...
- Page 26 STEP 23 Attaching Acrylic Shield F-AC...
- Page 27 STEP 24 Combining the Arduino and CNC Shield E-ARD E-CNC...
- Page 28 STEP 25 Attaching the Header Jumpers E-HJ...
- Page 29 STEP 26 Attaching Motor Cables Make sure the black wire is oriented as depicted...
- Page 30 STEP 27 Attaching Stepper Driver Chips E-SDH E-SDC...
- Page 31 STEP 28 Tuning the Stepper Motor Drivers Phillips The stepper drivers should be tuned using the potentiometer on the front so that the flat 90° edge on the dial faces to the left; this gives the stepper motors on the Mill One the right amount of power to run effectively.
- Page 32 STEP 29 Placing Boards into Electronics Holder P-EH...
- Page 33 STEP 30 Attaching DC Jack...
- Page 34 STEP 31 Attaching DC Jack Phillips Ensure polarity is correct to avoid damage to electronics...
- Page 35 STEP 32 Covering the Enclosure P-EC...
- Page 36 STEP 33 Attaching Electronics to Motors...
- Page 37 STEP 34 Assembled Mill One Your Mill One is now fully assembled. Don’t plug in your power brick yet, simply connect the USB cable to your computer and continue onto the next steps.
