TM

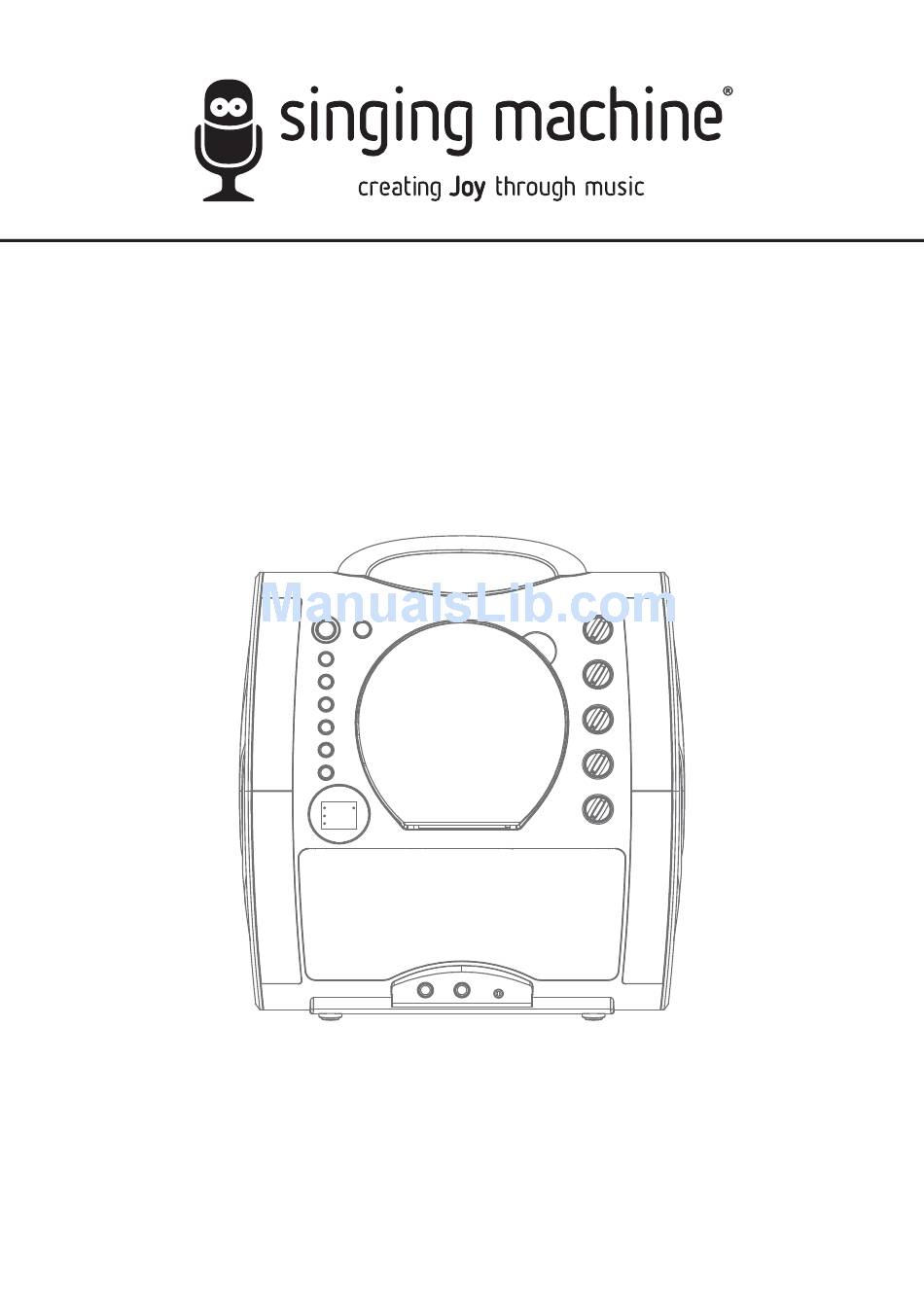

SML363BTBK / SML363BTP
INSTRUCTION MANUAL / MANUAL DE INSTRUCCIONES
/ MODE D'EMPLOI
www.singingmachine.com
The Singing Machine® is a registered trademark of The Singing Machine Co., Inc.
The Singing Machine® es marca registrada de The Singing Machine Co., Inc.
The Singing Machine® est une marque déposée de The Singing Machine Co., Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for The Singing Machine SML363BTBK
Summary of Contents for The Singing Machine SML363BTBK
- Page 1 / MODE D’EMPLOI www.singingmachine.com The Singing Machine® is a registered trademark of The Singing Machine Co., Inc. The Singing Machine® es marca registrada de The Singing Machine Co., Inc. The Singing Machine® est une marque déposée de The Singing Machine Co., Inc.
-
Page 2: Important Safety Information
Warnings WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE CAUTION THIS UNIT TO RAIN OR MOISTURE. RISK OF ELECTRIC SHOCK FCC WARNING: This equipment may generate or use radio frequency DO NOT OPEN energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT instruction manual. - Page 3 Included What’s in the box. Main Unit Wired Microphone AC Adapter Manual Welcome Kit Audio/Video Cables — E2 —...
-
Page 4: Location Of Controls (Front)
Location of Controls (Front) 1. Handle 11. FUNCTION button 22. MIC VOLUME control 2. LIGHTS button 12. Display 23. CDG indicator 3. ON/OFF indicator 13. Speaker 24. PLAY/PAUSE indicator 4. ON/OFF button 14. AUX IN jack 25. PROGRAM indicator 5. Lights 15. -
Page 5: Location Of Controls (Rear)
Location of Controls (Rear) 27. VIDEO OUT jack 28. AUDIO OUT jack (R) 29. AUDIO OUT jack (L) 30. DC IN Jack 31. Battery Door Connection Installation of Batteries DC OPERATION 1. Slide the battery door in the direction of the arrow to reveal the battery compartment. Insert eight (8) “C”... - Page 6 Connection Connecting the Microphone(s) Microphones: Connect a microphone into Mic jack 1 as well as Mic jack 2 (when desired). Note: Do not drop or tap the Mic as damage to the Mic or speakers may occur. Do not twirl the microphone cord as it will cause damage to the encased wiring.
- Page 7 Connection Connecting to AC Power REAR VIEW OF TV VIDEO AUDIO INPUT INPUT Insert the AC power cord into an AC outlet having 120V AC, 60Hz. Note: Make all connections before RCA cables connecting to AC power. Connecting to AUX In Jack Connect an external device by using an appropriate cable (3.5mm audio cable not included) as shown.
-
Page 8: Operation
Operation Playing a CDG Connect the unit as described previously; if using a CD+G, it is recommended to connect to a TV. Press the power ON/OFF button to turn the unit on. Lift open the CD door and insert a CD or a CD+G by gently pressing it on the center spindle. - Page 9 Operation Playing a CDG (Continued) Adjust the volume to a comfortable level using the MASTER VOLUME control. Connect microphone(s) and slide the ON/OFF switch on the microphone to the ON position. Adjust the MIC VOLUME control as desired. Increasing this control will increase the volume of both microphones.
- Page 10 Operation Playing a CDG (Continued) SKIP: Advance or go back one track by pressing the Skip 9 /Skip : buttons. REPEAT: During playback, press the PROGRAM/REPEAT button once to repeatedly play the selected song; the REPEAT indicator will blink. Press the PROGRAM/ REPEAT button a second time to repeatedly play the whole CD;...
- Page 11 Operation Playing a CDG (Continued) PAUSE: During playback, if you wish to pause the disc momentarily, press the PLAY/PAUSE/PAIR button; the PLAY/PAUSE indicator will blink. Press again to resume normal playback. Press the STOP button to stop playback. Press the power ON/OFF button to turn the unit off.
- Page 12 Operation Using a Bluetooth Device Connect the unit as described previously. Press the power ON/OFF button to turn the unit on. Please connect your Music Device Please connect your Music Device Repeatedly press the FUNCTION button to select the Bluetooth mode; Your Music Device is connected Your Music Device is connected “bt”...
- Page 13 Operation Using a Bluetooth Device (Continued) To control your Bluetooth device from this unit, press the PLAY/PAUSE/ PAIR button to start playback. Press the PLAY/PAUSE/PAIR button during playback to pause the song. Adjust the volume to a comfortable level using the MASTER VOLUME control on this unit as well as the volume on your Bluetooth device.
- Page 14 Operation Using the AUX IN Jack Connect the unit as described previously. Press the power ON/OFF button to turn the unit on. Repeatedly press the FUNCTION button to select the AUX IN mode; “AU” will appear on the display. Connect the external unit to the AUX IN Jack on the front of this unit.
- Page 15 Operation Using the AUX IN Jack (Continued) Adjust the MIC VOLUME control as desired. Increasing this control will increase the volume of both microphones. Rotate the ECHO control to add an echo effect to your voice. Rotate towards MAX to increase the echo effect.
-
Page 16: Troubleshooting Guide
• Make sure the MIC VOLUME setting is not set too low. • MASTER VOLUME is set to minimum; raise volume. • Adjust the ECHO control past the mid point on the Singing Machine. The Bluetooth device cannot be paired or connected with the unit •... -
Page 17: Specifications
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks and logos by The Singing Machine Company, Inc. is under license. Other trademarks and trade names are those of their respective owners. - Page 18 Visit Our Website: www.singingmachine.com Visite Nuestra Pagina de Internet: www.singingmachine.com Visitez notre site Web : www.singingmachine.com The Singing Machine Company, Inc. 4060 E Jurupa Street, Unit B Ontario, CA 91761-1413 USA PRINTED IN CHINA Copyright © 2018 All Rights Reserved.
