Hanna Instruments HI 93734 Instruction Manual

Instruction Manual
HI 93734
Free & Total Chlorine HR
ISM
This Instrument is in
www.hannacan.com
Compliance with the
CE Directives
WARRANTY WARRANTY WARRANTY
WARRANTY WARRANTY
HI 93734 is warranted for two years against defects
in workmanship and materials when used for its intended
purpose and maintained according to instructions.
This warranty is limited to repair or replacement free
of charge.
Damages due to accident, misuse, tampering or lack
of prescribed maintenance are not covered.
If service is required, contact the dealer from whom
you purchased the instrument. If under warranty,
report the model number, date of purchase, serial
number and the nature of the failure. If the repair is
not covered by the warranty, you will be notified of
the charges incurred. If the instrument is to be returned
to Hanna Instruments, first obtain a Returned Goods
Authorization Number from the Customer Service de-
partment and then send it with shipment costs prepaid.
When shipping any instrument, make sure it is prop-
erly packaged for complete protection.
To validate your warranty, fill out and return the
enclosed warranty card within 14 days from the date
of purchase.
All rights are reserved. Reproduction in whole or in
part is prohibited without the written consent of the
copyright owner, Hanna Instruments Inc.
Hanna Instruments reserves the right to modify the
design, construction and appearance of its products
without advance notice.
Dear Customer,
Thank you for choosing a Hanna product.
This manual will provide you with the nec-
essary information for the correct operation
of the meter. Please read it carefully before
using the meter. If you need additional
technical information, do not hesitate to
e-mail us at techserv@hannacan.com.
This instrument is in compliance with
directives EN 50081-1 and EN 50082-1.

PRELIMINARY EXAMINATION

PRELIMINARY EXAMINATION PRELIMINARY EXAMINATION PRELIMINARY EXAMINATION PRELIMINARY EXAMINATION
Remove the instrument from the packing
material and examine it carefully to make
sure that no damage has occurred during
shipment. If there is any damage, notify
your Dealer.
Each Ion Specific Meter is supplied
complete with
• 9V Battery
• Two Sample Cuvets and Caps
• One Transport Cap
Note: Conserve all packing material until
the instrument has been observed to
function correctly. Any defective item
must be returned in its original
packing.

GENERAL DESCRIPTION

GENERAL DESCRIPTION GENERAL DESCRIPTION GENERAL DESCRIPTION GENERAL DESCRIPTION
The HI 93734 meter measures the Free
and Total Chlorine (Cl ) content in water
2
and wastewater.
The meter uses an exclusive positive-
locking system to ensure that the cuvet is
in the same place every time it is placed
into the measurement cell.
The reagents are in liquid form and are
supplied in bottles. The amount of re-
agent is precisely dosed to ensure
maximum repeatability.
Display codes aid the user in routine
operations.
The meters have an auto-shut off feature
that will turn the instrument off after 10
minutes of non-use.

SPECIFICATIONS

SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS
SPECIFICATIONS
Range Free Cl 0.00 to 9.99 mg/L
2
Total Cl 0.00 to 9.99 mg/L
2
Resolution 0.01 mg/L
Accuracy ±0.03 mg/L ±3% of reading
Typical EMC ±0.01 mg/L
Deviation
Light Source Light Emitting Diode @ 555 nm
Method Adaptation of the EPA recommended
DPD method 330.5. The reaction be-
tween the chlorine and the DPD reagent
causes a pink tint in the sample
Light Detector Silicon Photocell
Environment 0 to 50°C (32 to 122°F);
max 95% RH non-condensing
Battery Type/Life1 x 9 volt/40 hours
Auto-Shut off After 10' of non-use
Dimensions 180 x 83 x 46 mm (7.1 x 3.3 x 1.8")
Weight 290 g (10 oz.).

REQUIRED REAGENTS

Code Description Quantity
HI 93734A-0 Free & Total Chlorine DPD 3 drops
Reagent
HI 93734B-0 Free & Total Chlorine 5 mL
Reagent
HI 93734C-0 Total Chlorine only 1 drop

REAGENT SETS

HI 93734-01 Reagents for 100 Free & Total Chlorine
tests
HI 93734-03 Reagents for 300 Free & Total Chlorine
tests

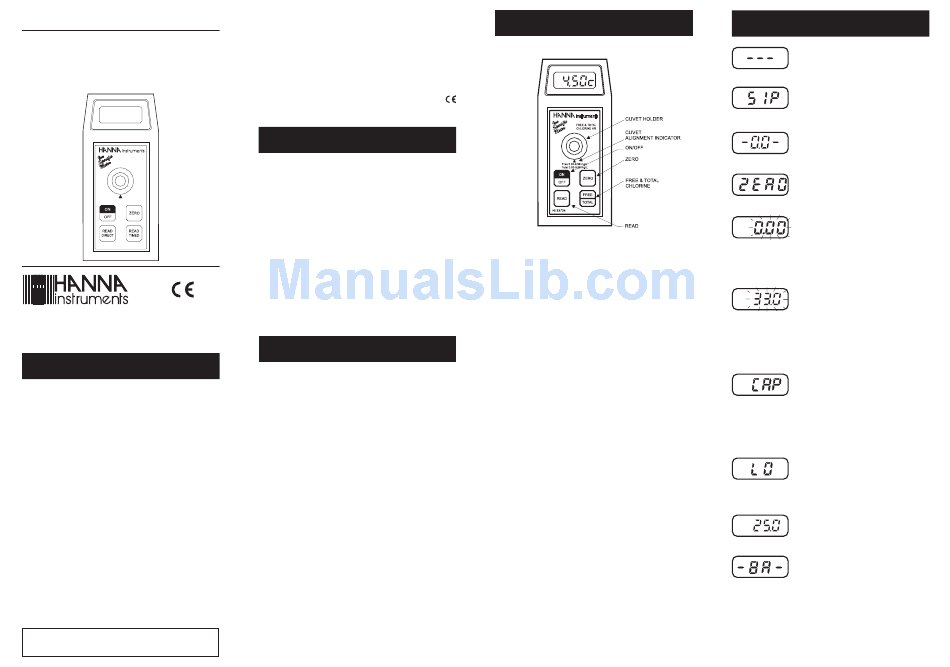

DISPLAY CODE GUIDE

DISPLAY CODE GUIDE
DISPLAY CODE GUIDE DISPLAY CODE GUIDE DISPLAY CODE GUIDE
This indicates that the meter
is in a ready state and
zeroing can be performed.
Sampling in Progress. This
prompt appears each time
the meter is performing a
measurement.
This indicates that the meter
is in a zeroed state and mea-
surement can be performed.
A zero reading was not taken.
Insert a sample before
adding reagent and press
ZERO.
Under range. A blinking
"0.00" indicates that the
sample absorbs less light
than the zero reference.
Check the procedure and
make sure you use the same
cuvet for reference (zero) and
measurement.
Over range. A flashing value
higher than the maximum
concentration readable (see
specifications) indicates that
the sample absorbs too
much light, meaning that the
concentration is too high.
Dilute the sample.
Light over range. The cuvet
is not inserted correctly and
an excess ambient light is
reaching the detector. If the
cover is properly installed,
then contact your dealer or
the nearest Hanna Customer
Service Center.
Light under range. The zero
sample is too dark for proper
zeroing. If this is not the
case, contact your dealer or
the nearest Hanna Customer
Service Center.
The "V" indicates that the
V
battery voltage is getting low
and the battery needs to be
replaced.
This indicates that the battery
is dead and must be re-
placed.
Note: once this indication is
displayed, the meter will
lockup. Change the battery
to restart.
