P/N 127055-01 Rev. H 02/2018
Ce manuel est disponible en francais, simplement
en faire la demande. Numéro de la pièce 127055-02.
P127055-01
This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also
contains information that will enable you to obtain replacement parts or accessory items when needed. Keep
it with your other important papers.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This wood burning fireplace complies with UL127
CAN/ULC-S610-M87 standard as a FACTORY
BUILT FIREPLACE.
This fireplace is approved for use as a wood burning fireplace or for use with a vented gas log approved to
ANSI Z21.60 or Z21.84 standards or for use with a vent-free gas log heater approved to ANSI Z21.11.2 standard .
An IHP hood must be installed when using a vent-free log heater (see Accessories, page 20).
FOR CANADA: The authority having jurisdiction
(such as the municipal building department, fire
department, etc.) should be contacted before
installation to determine the need to obtain a permit.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or
mobile home, where not prohibited by local codes.
This installation manual will enable you to obtain a safe, efficient and dependable installation of your fireplace
system. Please read and understand these instructions before beginning your installation.
Do not alter or modify the fireplace or its components under any circumstances. Any modification or alteration of
the fireplace system, including but not limited to the fireplace, chimney components and accessories, may void the
warranty, listings and approvals of this system and could result in an unsafe and potentially dangerous installation.
IMPORTANT! TO ASSURE PROPER ALIGNMENT OF GLASS DOORS: INSTALL THIS FIREPLACE IN A SQUARE
AND PLUMB CONDITION, USING SHIMS AS NECESSARY AT SIDES AND/OR BOTTOM.
PFS
C
Report No. F10-078
SAVE THIS BOOK
NOTE: DIAGRAMS AND ILLUSTRATIONS THROUGHOUT THE MANUAL ARE NOT TO SCALE.

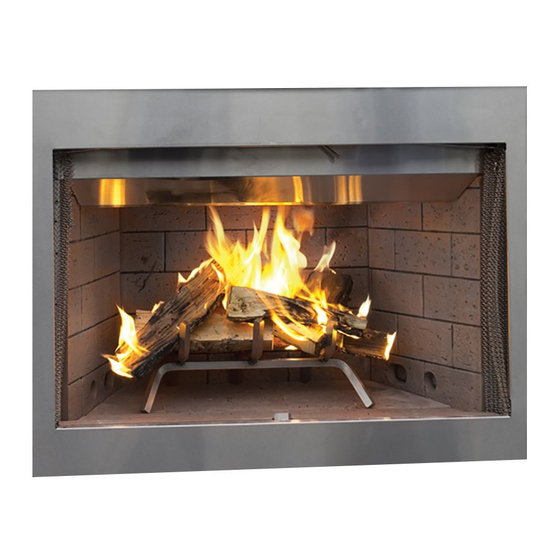

Installation and Operation Instructions
Superior® Residential and Outdoor Wood-
Burning Fireplace
Models
®
US
Installateur : Laissez cette notice avec l'appareil.
Consommateur : Conservez cette notice pour consultation ultérieure.
Ce foyer au bois est conforme aux UL 127 CAN/ULC-
S610-M87 norme comme une USINE CONSTRUITE
CHEMINÉE.
POUR LE CANADA: L'autorité compétente (comme le
service municipal du bâtiment, les pompiers, etc.) doit
être contacté avant l'installation afin de déterminer la
nécessité d'obtenir un permis.
WRE3042WS
WRE3042WH
Advertisement
Table of Contents
Related Manuals for Superior Fireplaces WRE3042WH
Summary of Contents for Superior Fireplaces WRE3042WH
- Page 1 Ce manuel est disponible en francais, simplement en faire la demande. Numéro de la pièce 127055-02. ® WRE3042WS WRE3042WH Report No. F10-078 P127055-01 SAVE THIS BOOK This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also contains information that will enable you to obtain replacement parts or accessory items when needed.
-
Page 2: Table Of Contents
Thank you for your purchase. We appreciate your TABLE OF CONTENTS business! Safety ..................... 2 Please carefully read and follow all instructions in this manual. Pay Specifications ................. 4 special attention to all warnings and safety information. Fireplace Installation ..............5 Following these safety, care, and operation instructions will help Venting Installation ................ - Page 3 SAFETY Continued WARNING: CONTINUED OVERFIRING CAN PER- WARNING: BURNING IMPROPER FUEL (I.E. CHAR- MANENTLY DAMAGE YOUR FIREPLACE SYSTEM. COAL) CAN RESULT IN CARBON MONOXIDE POISON- SOME EXAMPLES OF CONDITIONS THAT COULD ING, WHICH MAY LEAD TO DEATH! CAUSE OVERFIRING ARE: Carbon Monoxide Poisoning –...
-
Page 4: Specifications
SPECIFICATIONS PIPE 1" (26 mm) AIRSPACE TO COMBUSTIBLE MATERIAL GAS LINE KNOCK OUTS ELECTRICAL RIGHT SIDE NO COMBUSTIBLE STARTER OUTLET MATERIALS BELOW SECTION " TOP SPACERS (64 mm) NO COMBUSTIBLE 0" (0 mm) TO TOP MATERIAL ON FACE SPACERS " (172 mm) "... -
Page 5: Fireplace Installation
FIREPLACE INSTALLATION SELECTING LOCATION 2 x 4 Header WARNING: DO NOT INSTALL IN SLEEPING ROOM Turned on the Vertical OF MOBILE HOMES. Edge To determine the safest and most efficient location for the fireplace, you must take into consideration the following guidelines: 1. - Page 6 FIREPLACE INSTALLATION Continued HEARTH EXTENSION Top View of Fireplace A hearth extension projecting a minimum of 16" in front of and a minimum of 8" beyond each side of the fireplace opening is required to protect combustible floor construction in front of the fireplace. FIREBOX 8"...
-
Page 7: Venting Installation
VENTING INSTALLATION Continued FIREPLACE INSTALLATION Continued installing double wall snap-lock chimney together, it is important to Secure to Collars with Metal Tape, Screws or Straps assure the joint between the chimney sections is locked. Check by (Min. of 1/4" x 20" in size) pulling chimney upward after locking. - Page 8 VENTING INSTALLATION Continued USING ELBOW OFFSETS 30E-12DMO-8DMR 2. Chimney weight above offset rests on return elbow. Straps must be securely nailed to rafters or joists (see Figure 8, details A and To clear overhead obstructions, you may offset your chimney system using 30E-12DMO-8DMR 30°...
- Page 9 VENTING INSTALLATION Continued FIRESTOP SPACERS (3600FS-8DM-1) Firestop spacers are required at each point where the chimney penetrates a floor space. Their purpose is to establish and maintain the required clearance between the chimney and the combustible materials. When the pipe passes through a framed opening into a living space above, the Screws firestop must be placed onto the ceiling from below as shown in Figure 10.
- Page 10 VENTING INSTALLATION Continued PENETRATING ROOF Storm Collar Overlap Shingles To maintain a 1" clearance to the pipe on a roof with a pitch, a rect- Top and Sides Only Flashing Cone angular opening must be cut. 1. Determine center point through which pipe will penetrate roof. 2.
- Page 11 VENTING INSTALLATION Continued CHASE INSTALLATIONS Instructions for chase installations are included with the chase style termination chosen. In a multiple chase installation, be sure to provide adequate distance between terminations to prevent smoke spillage from one termination to another. We suggest that terminations be separated at least 24", center to center and stacked at a vertical height difference of 18"...
-
Page 12: Optional Gas Line Installation
OPTIONAL GAS LINE INSTALLATION A gas line or gas log lighter may be installed for the purpose of Side Firebrick Outside of installing a vented or vent-free decorative gas appliance incorporat- Finished Side Fireplace ing an automatic shutoff device and complying with the Standard for Decorative Gas Appliances for Installation in Vented Fireplaces, ANSI Z21.60 or American Gas Association draft requirements for Gas Line... -
Page 13: Operation And Maintenance Guidelines
OPERATION AND MAINTENANCE GUIDELINES GLASS DOORS Cleaning Glass Glass doors are optional with the fireplace. When the fireplace is in Clean the glass with any commercial glass cleaner or soap and operation, doors must be fully opened or fully closed position only water. -
Page 14: Replacement Parts
REPLACEMENT PARTS OPERATION AND MAINTENANCE GUIDELINES Continued See Pages 16 to 18 for a complete replacement parts list. Use only parts supplied from the manufacturer. LOCATING ACCESS COVER PLATE Normally, all parts should be ordered through your IHP distributor Sheet metal cover plates located underneath front hearth refractory may or dealer. -
Page 15: Important Notices - Canada
IMPORTANT NOTICES - CANADA IMPORTANT NOTICE NOTICE: The firebox canopy (hood) Canadian code CAN/ULC-S610-M87 and other pertinent A manufactured shroud which codes require stainless steel chimney for the installation must not be modified or replaced with of this fireplace. A Cold Air Climate Kit is also required has been approved by a na- a canopy that may be provided with in Canada and is recommended for cooler regions in the... -
Page 16: Parts
PARTS MODEL CATALOG NO. WRE3042WS F0453 WRE3042WH F0454 33/34 SuperiorFireplaces.us.com 127055-01_H... - Page 17 MODEL CATALOG NO. WRE3042WS F0453 WRE3042WH F0454 WARNING: Contact an IHP dealer to obtain any of these parts. Never use substitute materials not approved by IHP. Use of non-approved parts can result in poor performance and safety hazards. CATALOG NO. DESCRIPTION QTY.
-
Page 18: Accessories
PARTS MODEL CATALOG NO. WRE3042WS F0453 WRE3042WH F0454 Stacked Refractory Shown CATALOG WRE3042WS WRE3042WH DESCRIPTION F0453 F0454 QTY. F3284 30 series White Stacked Refractory Set, 42" • Refractory, Lt, Std, White S42 • Refractory, Rt, Std, White S42 • Refractory, Rear, Std, White S42 •... - Page 19 ACCESSORIES Continued CAT NO. MODEL DESCRIPTION BI-FOLD GLASS DOORS F0990 BDO42 42" Outdoor Bi-Fold Glass Door - Black finish F0991 BDO42B 42" Outdoor Bi-Fold Glass Door - Brushed Brass finish F0992 BDO42P 42" Outdoor Bi-Fold Glass Door - Platinum finish DOUBLE WALL PIPE F0895 12-8DM...
- Page 20 ACCESSORIES Continued ANTI-DRAFT SHIELD (Round Top Termination Only) F0927 ADS-8DM Anti-Draft Shield for Round Top Only MESH ROUND TOP TERMINATIONS F0916 RT-8DM Round Top with Mesh Screen F0888 RT-8HT Hi-Temp Round Top with Mesh Screen MESH ROUND TOP TERMINATIONS WITH SLIP SECTION F0917 RTT-8DM Round Top with Slip Section &...
-
Page 21: Draft Smoke Guidelines
APPENDIX A Draft Requirements take into account all variables within the installation and install the appliance in such a manner that satisfies the draft requirements of Your wood-burning appliance is dependent upon a properly func- the appliance. See Chimney Guidelines to assist you in selecting the tioning chimney for optimum performance. - Page 22 APPENDIX A Continued Smoking – Causes And Troubleshooting Location Recommended To reduce the likelihood of smoking when opening the door, open Marginal Location the combustion air control or damper before opening the door. Wind Direction Your appliance has been designed and tested to provide smoke free Tree operation.
-
Page 23: Warranty
Innovative Hearth Products Superior Brand Wood-Burning Fireplace ® 20 Year Limited Warranty THE WARRANTY Innovative Hearth Products ("IHP") 20 Year Limited Warranty warrants your Superior ® Brand wood burning fireplace ("Product") to be free from defects in materials and workmanship at the time of manufacture. The Product body, firebox and ceramic glass carry the 20 Year Limited Warranty. Ceramic glass carries the 20 Year Limited Warranty against thermal breakage only. - Page 24 SuperiorFireplaces.us.com Record the following important information about your fireplace: Fireplace model number Fireplace serial number Date fireplace was Installed Dealer name P127055-01 Innovative Hearth Products reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products. Consult your local distributor for fireplace code information.
