Watt Stopper DRD8 v2 Installation Instructions

OPERATION

Tap once Fade the load to its last-used level, switch ON
Tap twice Full bright, switch ON
— — Press and hold Increase the present level, switch ON
Tap once Fade to 0%, switch OFF
— — Press and hold Decrease the present level, switch OFF
When you When you
see in the see
instructions, instructions,
touch the top touch the
of the switch bottom of
as directed. the switch as
directed.

Power Fail Memory

After a power failure, all Miro devices automatically return to the state that they
were in immediately prior to loss of power.

CLEANING

Clean using a cloth dampened only with water and a little mild detergent.
Use of solvents or hydrocarbon-based cleaners may cause permanent damage.
ii_DRD8v2 07480r2.indd 1-4 ii_DRD8v2 07480r2.indd 1-4

TROUBLESHOOTING

During house ID binding, the LED is not flashing on some
wireless devices.
• If LED is solid green before initiating house ID binding:
The device already has another house ID. Reset it to the factory default so
that it can be bound to the desired house ID. Resetting to factory defaults is
described in the "I need to start over" issue.
• If LED is solid yellow after initiating house ID binding:
The device may be out of range of the initiating device. Add a MRR2G
Wireless Repeater to boost signal range.
During Group binding, all LEDs stop flashing before I get back to the
in the
device to press .
The 5 minute group binding process timer may have expired. Restart
the binding process timer by repeating steps 1 and 2 of the procedure
you were using. Notice that the devices you previously included are
flashing yellow; simply finish the process from where you left off.
The device LED flashes red when I press .
If house or room scene controllers are used in the house, the house or room
configuration may be locked. Consult the installation instructions for the DRD5
or MRH5G wireless house scene controller if one is present. See the DRD6
or MRH6G wireless room scene controller instructions if one is present.
I made a configuration mistake. I need to start over.
To reset any Miro wireless device to factory default settings, press and
hold — — until the LED changes to solid yellow (approximately 10 seconds).
During the process, the LED flashes yellow. When complete,
it becomes solid yellow. The device can then be
reconfigured, exactly like any new device.

FCC NOTICE

This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
Installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment in an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.

WARRANTY INFORMATION

Manufacturer warranties its products to be free of defects in materials and
workmanship for a period of fi ve (5) years. There are no obligations or liabilities
on the part of manufacturer for consequential damages arising out of, or
in connection with, the use or performance of this product or other indirect
damages with respect to loss of property, revenue or profi t, or cost of removal,
installation or reinstallation.
Watt Stopper Customers contact: Vantage Customers contact:
Please
Recycle
2800 De La Cruz Blvd. 1061 South 800 East
Orem, UT 84057
Santa Clara, CA 95050
Phone: 800.879.8585 Phone: 800.555.9891
www.wattstopper.com www.vantagecontrols.com
07480r2 9/2007

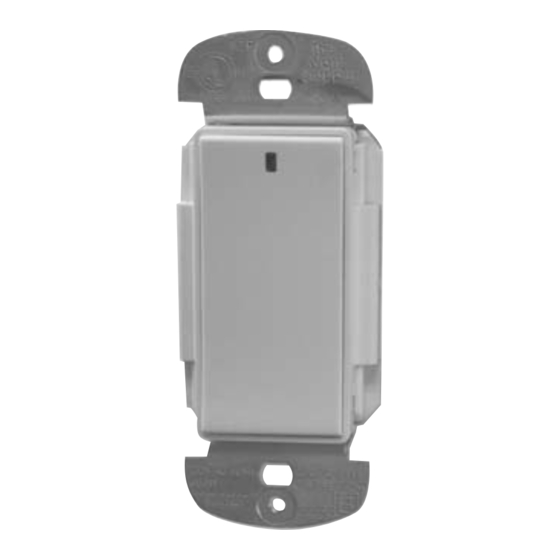

DRD8 v2
Wireless Multilocation Controller

Specifications

Voltage ....................................................... 120/277VAC, 60Hz
Operating Temperature ................ 32°F to 104°F (0°C to 40°C)
Patents pending
