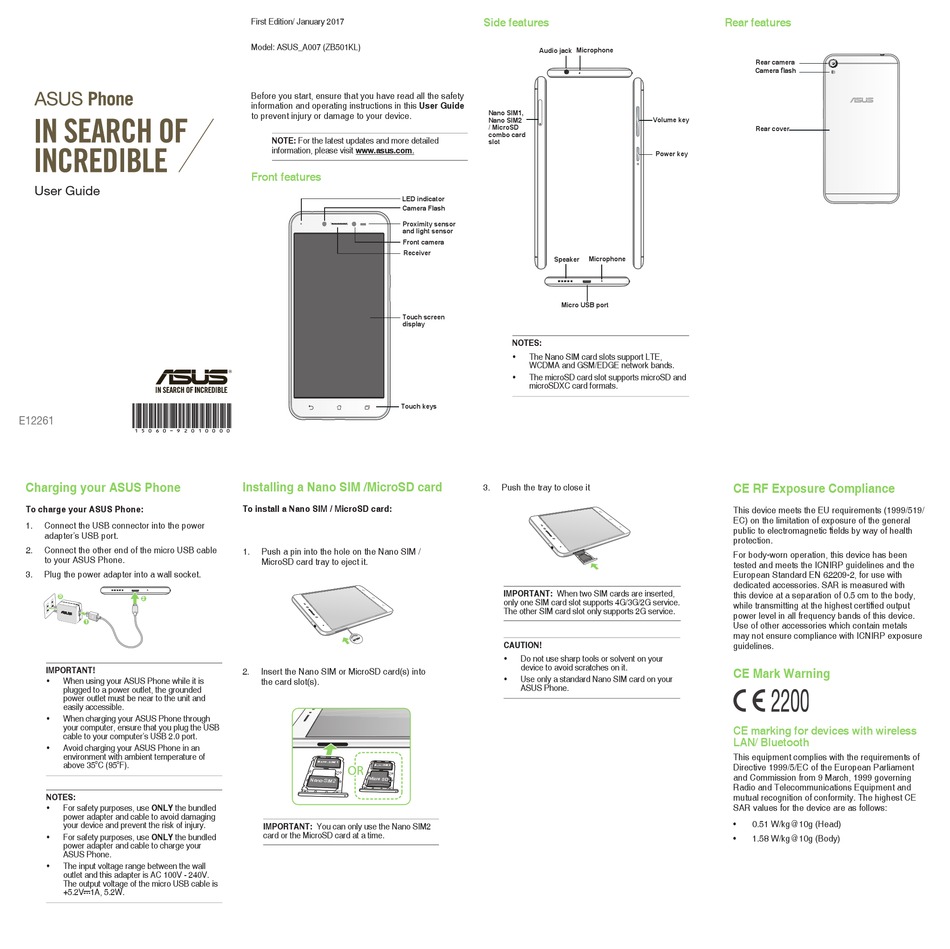

User Guide

15060-92010000
E12261
Charging your ASUS Phone
To charge your ASUS Phone:
1.
Connect the USB connector into the power
adapter's USB port.
2.
Connect the other end of the micro USB cable
to your ASUS Phone.
3.
Plug the power adapter into a wall socket.
3
2
1
IMPORTANT!
When using your ASUS Phone while it is
plugged to a power outlet, the grounded
power outlet must be near to the unit and
easily accessible.
When charging your ASUS Phone through
your computer, ensure that you plug the USB
cable to your computer's USB 2.0 port.
Avoid charging your ASUS Phone in an
environment with ambient temperature of
o
o
above 35
C (95
F).
NOTES:
For safety purposes, use ONLY the bundled
power adapter and cable to avoid damaging
your device and prevent the risk of injury.
For safety purposes, use ONLY the bundled
power adapter and cable to charge your
ASUS Phone.
The input voltage range between the wall
outlet and this adapter is AC 100V - 240V.
The output voltage of the micro USB cable is
+5.2V 1A, 5.2W.
First Edition/ January 2017
Model: ASUS_A007 (ZB501KL)
Before you start, ensure that you have read all the safety
information and operating instructions in this User Guide
to prevent injury or damage to your device.
NOTE: For the latest updates and more detailed
information, please visit www.asus.com.
Front features
LED indicator
Camera Flash
Proximity sensor
and light sensor
Front camera
Receiver
Touch screen
display
Touch keys
Installing a Nano SIM /MicroSD card
To install a Nano SIM / MicroSD card:
1. Push a pin into the hole on the Nano SIM /
MicroSD card tray to eject it.
2. Insert the Nano SIM or MicroSD card(s) into
the card slot(s).
IMPORTANT: You can only use the Nano SIM2
card or the MicroSD card at a time.
Side features
Microphone
Audio jack
Nano SIM1,
Nano SIM2
Volume key
/ MicroSD
combo card
slot
Power key
Speaker
Microphone
Micro USB port
NOTES:
The Nano SIM card slots support LTE,
WCDMA and GSM/EDGE network bands.
The microSD card slot supports microSD and
microSDXC card formats.
3.
Push the tray to close it
IMPORTANT: When two SIM cards are inserted,
only one SIM card slot supports 4G/3G/2G service.
The other SIM card slot only supports 2G service.
CAUTION!
Do not use sharp tools or solvent on your
device to avoid scratches on it.
Use only a standard Nano SIM card on your
ASUS Phone.
Rear features
Rear camera
Camera flash
Rear cover

CE RF Exposure Compliance

This device meets the EU requirements (1999/519/
EC) on the limitation of exposure of the general
public to electromagnetic fields by way of health
protection.
For body-worn operation, this device has been
tested and meets the ICNIRP guidelines and the
European Standard EN 62209-2, for use with
dedicated accessories. SAR is measured with
this device at a separation of 0.5 cm to the body,
while transmitting at the highest certified output
power level in all frequency bands of this device.
Use of other accessories which contain metals
may not ensure compliance with ICNIRP exposure
guidelines.
CE Mark Warning
CE marking for devices with wireless
LAN/ Bluetooth
This equipment complies with the requirements of
Directive 1999/5/EC of the European Parliament
and Commission from 9 March, 1999 governing
Radio and Telecommunications Equipment and
mutual recognition of conformity. The highest CE
SAR values for the device are as follows:
0.51 W/kg@10g (Head)
1.58 W/kg@10g (Body)
