User Guide

15060-82600000
E11709
E11709_ZB500KG_UM_Booklet_EU.indd 1
2016-09-12 09:58:56

Advertisement

loading

  Also See for Asus X00BD

  Summary of Contents for Asus X00BD

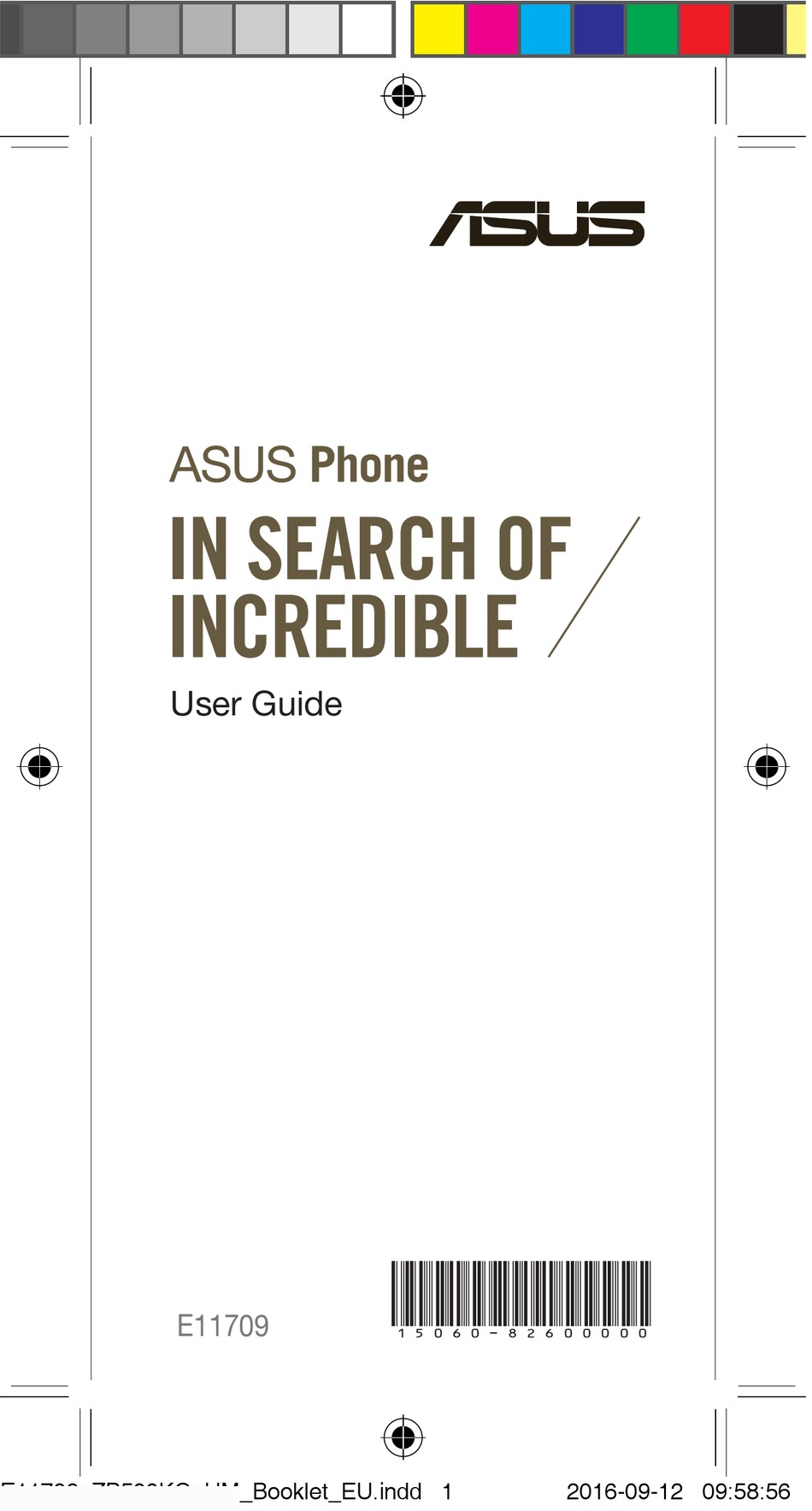

  • Page 1: User Guide

    User Guide 15060-82600000 E11709 E11709_ZB500KG_UM_Booklet_EU.indd 1 2016-09-12 09:58:56...
  • Page 2: Front Features

    Before you start, ensure that you have read all the safety information and operating instructions in this User Guide to prevent injury or damage to your device. NOTE: For the latest updates and more detailed information, please visit www.asus.com. Front features Receiver Front camera LED Indicator...
  • Page 3: Side Features

    Side features Power key Audio jack Groove Micro USB port NOTE: Pry open the rear cover from the groove. E11709_ZB500KG_UM_Booklet_EU.indd 3 2016-09-12 09:58:57...
  • Page 4: Rear Features

    Rear features Camera flash Rear camera Volume key Rear cover • • Speaker • • NOTES: • Remove the rear cover to display the dual micro SIM and microSD card slots. • The micro SIM card slots support WCDMA and GSM/EDGE network bands. • • The microSD card slot supports microSD and microSDHC card formats. • • E11709_ZB500KG_UM_Booklet_EU.indd 4 2016-09-12 09:58:57...
  • Page 5: Charging Your Asus Phone

    • Use only the power adapter that came with your device. Using a different power adapter may damage your device. • Using the bundled power adapter and ASUS Phone signal cable to connect your ASUS Phone to a power outlet is the best way to charge your ASUS Phone. • The input voltage range between the wall outlet and this adapter is AC 100V - 240V. The output voltage of the micro USB cable is DC 5.2V, 1A. E11709_ZB500KG_UM_Booklet_EU.indd 5...
  • Page 6: Installing A Micro Sim Card

    Installing a micro SIM card To install a micro SIM card: Locate the groove on the bottom-right corner of your ASUS Phone. • Pry the cover loose and then pull the rear • cover off. • • 3. Remove the battery. • E11709_ZB500KG_UM_Booklet_EU.indd 6...
  • Page 7 • Use only a standard micro SIM card on your ASUS Phone. A nano to micro SIM adapter or a trimmed SIM card may not properly fit into and may not be detected by your ASUS Phone. • DO NOT install an empty nano to micro SIM adapter into the micro SIM card slot to avoid irreversible damage.
  • Page 8: Installing A Microsd Card

    Installing a microSD card To install a microSD card: Locate the groove on the bottom-right corner of your ASUS Phone. Pry the cover loose and then pull the rear cover off. 3. Remove the battery. 4. Insert the microSD card into the microSD card slot. E11709_ZB500KG_UM_Booklet_EU.indd 8 2016-09-12 09:58:59...
  • Page 9: Fcc Regulations

    FCC Regulations: This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 10: Rf Exposure Information (Sar)

    RF Exposure Information (SAR) This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States. During SAR testing, this device was set to transmit at its highest certified power level in all tested frequency bands, and placed in positions that simulate RF exposure in usage against the head with no separation, and near the body with the separation of 10 mm. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.
  • Page 11: Hearing Aid Compatibility (Hac) Regulations For Mobile Phones

    While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirements. SAR compliance for body-worn operation is based on a separation distance of 10 mm between the unit and the human body. Carry this device at least 10 mm away from your body to ensure RF exposure level compliant or lower to the reported level. To support body-worn operation, choose the belt clips or holsters, which do not contain metallic components, to maintain a separation of 10 mm between this device and your body.
  • Page 12 their box or a label located on the box. The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs.
  • Page 13: Ce Rf Exposure Compliance

    CE RF Exposure Compliance This device meets the EU requirements (1999/519/ EC) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. For body-worn operation, this device has been tested and meets the ICNIRP guidelines and the European Standard EN 62209-2, for use with dedicated accessories. SAR is measured with this device at a separation of 0.5 cm to the body, while transmitting at the highest certified output power level in all frequency bands of this device. Use of other accessories which contain metals may not ensure compliance with ICNIRP exposure guidelines. CE Mark Warning CE marking for devices with wireless LAN/ Bluetooth This equipment complies with the requirements of Directive 1999/5/EC of the European Parliament...
  • Page 14: Using Gps (Global Positioning System) On Your Asus Phone

    Using GPS (Global Positioning System) on your ASUS Phone To use the GPS positioning feature on your ASUS Phone: • Ensure that your device is connected to the Internet before using Google Map or any GPS- enabled apps. • For first-time use of a GPS-enabled app on your device, ensure that you are outdoors to get the best positioning data. • When using a GPS-enabled app on your device inside a vehicle, the metallic component of the car window and other electronic devices might affect the GPS performance.
  • Page 15: Safety Information

    Safety information ASUS Phone care • Use your ASUS Phone in an environment with ambient temperatures between 0°C (32 °F) and 35 °C (95 °F). The battery Your ASUS Phone is equipped with a high performance detachable Li-Ion battery. Observe the maintenance guidelines for a longer battery life. • Avoid charging in extremely high or low temperature. The battery performs optimally in an ambient temperature of +5 °C to +35 °C. • Use only ASUS battery. Using a different battery may cause physical harm/injury and may damage your device. • Do not remove and soak the battery in water or any other liquid. •...
  • Page 16: Operator Access With A Tool

    NOTES: • Risk of explosion if battery is replaced by an incorrect type. • Dispose of used battery according to the instructions. The charger • Use only the charger supplied with your ASUS Phone. • Never pull the charger cord to disconnect it from the power socket. Pull the charger itself. Caution Your ASUS Phone is a high quality piece of equipment. Before operating, read all instructions and cautionary markings on the (1) AC Adapter. • Do not use the ASUS Phone in an extreme environment where high temperature or high humidity exists. The ASUS Phone performs optimally in an ambient temperature between 0 °C (32°F) and 35 °C (95 °F).
  • Page 17: Asus Recycling/Takeback Services

    ASUS Recycling/Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http:// csr.asus.com/english/Takeback.htm for detailed...
  • Page 18: Eu Declaration Of Conformity

    We, the undersigned, Manufacturer: ASUSTeK COMPUTER INC. Address: 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN Authorized representative in Europe: ASUS COMPUTER GmbH Address, City: HARKORT STR. 21-23, 40880 RATINGEN Country: GERMANY declare the following apparatus: Product name :...
  • Page 19 Nosotros, los abajo firmantes, Fabricante: ASUSTeK COMPUTER INC. Dirección: 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN Representante autorizado en Europa: ASUS COMPUTER GmbH Dirección, Ciudad: HARKORT STR. 21-23, 40880 RATINGEN País: GERMANY Declaramos el siguiente producto: Nombre del aparato :...
  • Page 20 Nós, os abaixo-assinados, Fabricante: ASUSTeK COMPUTER INC. Endereço: 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN Representante autorizado na Europa: ASUS COMPUTER GmbH Endereço, cidade: HARKORT STR. 21-23, 40880 RATINGEN País: GERMANY declaramos o seguinte aparelho: Nome do produto:...
  • Page 21 Biz, bu imza altındakiler Üretici: ASUSTeK COMPUTER INC. Adres: 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN Avrupa’daki Yetkili: ASUS COMPUTER GmbH Adres, Şehir: HARKORT STR. 21-23, 40880 RATINGEN Ülke: ALMANYA Aşağıdaki ürünleri beyan ediyoruz : Ürün adı : ASUS Phone Model adı...
  • Page 22 ASUS Address: 4F, No.150 Li-Te Rd., Peitou, Taipei, Taiwan Tel: 886228943447 Fax: 886228907698 Declaration We declare that the IMEI codes for this product, ASUS Phone, are unique to each unit and only assigned to this model. The IMEI of each unit is factory set and cannot be altered by the user and that it complies with the relevant IMEI integrity related requirements expressed in the GSM standards. Should you have any questions or comments regarding this matter, please contact us. Sincerely yours, ASUSTeK COMPUTER INC.
