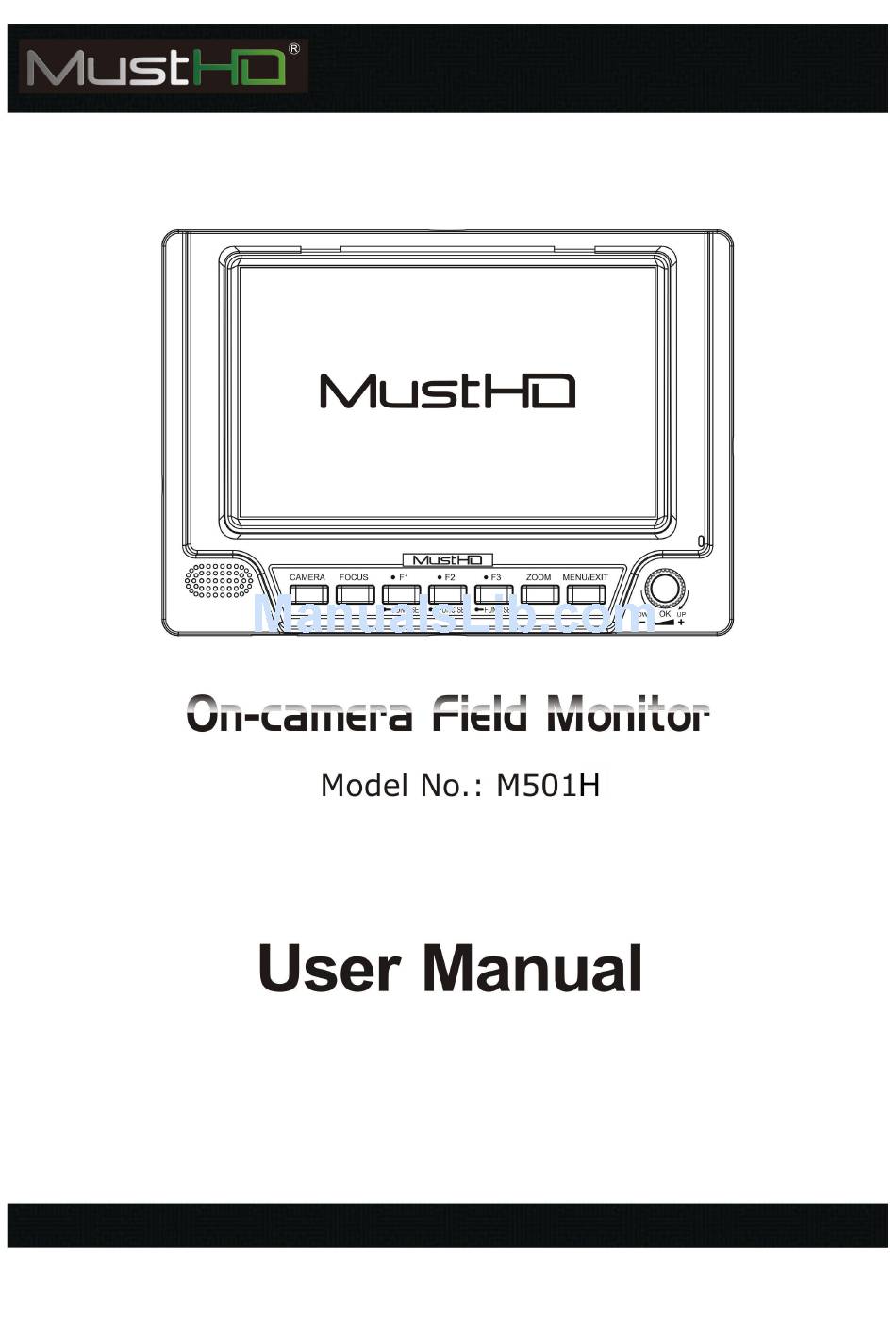

MustHD M501H User Manual

On-camera filed monitor

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M501H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MustHD M501H

  • Page 2: Table Of Contents

    Contents Welcome………………………………………………………………...02 FCC Notice.………………………….……..…………………………….03 Disposal Notice………………………………………………………….03 Precaution…………………………….……..…………………………….03 Package Contents………………………………………………………...06 Main Features……………………………………………………………..07 Parts & Functions………………..………………………………………08 Get Started……………………..………………….……………………10 Install Sun-Hood………………………….……………………10  Open/Close Sun-Hood………………..………………………10  Install Battery Plate………………………………………..11  Connect DC Power Supply…………………………………..13  Fix HDMI Connector……………….…………………………13  Menu Tree & Adjustment……………….………………………………14 Menu Operations………………………………………………………….14 Picture………………………………………..……….….….15 ...
  • Page 3: Welcome

    Welcome Thank you for your choice of our M501H filed monitor. This high-tech while easy to use monitor can better your photography journey. We recommend reading this manual first to get the best out of this unit. FCC Notice (Federal Communications Commission) This equipment has been tested and found to comply with the limits for class A digital device, pursuant to part 15 of the FCC rules.
  • Page 4: Disposal Notice

    Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packing indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
  • Page 5 Request a qualified service person to perform servicing. In case the product needs replacement parts, make sure that the  service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fir, electric shock and/or other danger.
  • Page 6 When relocating the product placed on a cart, it must be moved  with the utmost care. Sudden stops, excessive force and uneven floor surface can  cause the product to fall from the cart. The vents and other openings in the cabinet are designed for ...
  • Page 7: Package Contents

    Package Contents M501H Field Monitor Sun-Hood User Manual DC Power Adapter HDMI Cable Wired Remote Button Battery Plate Battery Plate Battery Plate F970 LP-E6 D28S (optional) (optional) Screws (8pcs) Carry Bag (optional)
  • Page 8: Main Features

    Main Features ·All-in-one type system ·Camera Mode Button A compact and lightweight - No black screen when video field monitor designed for recording started; No entry-level use. distortion; Display size maximized ·HDMI Input/output ·Knob control ·5 inches 800*480 Resolution - Easy to adjust user ·Software Features configuration by using the ·Focus Assistance...
  • Page 9: Parts & Functions 1/2

    Parts & Functions 1/2 FRONT/SIDE/TOP Camera Mode MENU/EXIT Focus Assistance Encode Knob Self-define Function Key#1 Earphone jacket hole Self-define Function Key #2 Sun-Hood Self-define Function Key #3 1/4"-20 Threaded Mounting Zoom Wired Remote F Key...
  • Page 10 Parts & Functions 2/2 BOTTOM/ REAR 1/4"-20 Threaded Mounting Battery Plate Connecting Pin HDMI Input Batter Plate Fixing Groove HDMI Loop-through Battery Plate Fixing Hole HDMI Holder Screw Hole Power On/Off Switch DC Power Input...
  • Page 11: Get Started

    Get Started [1] Install Sun-Hood Cover to the Monitor [2] Open / Close the Sun-Hood Please follow the step sequence to open or close the hood! Open the Sun-Hood Close the Sun-Hood...
  • Page 12: Install Battery Plate

    [3] Install Battery Plate on to the Monitor The following illustration is based on LP-E6 battery. F970/ D28S are basically the same. 1) Put the Plate at the right position on the monitor back cover. 2) Slide it backwardly to the utmost. 3) If needed, use the four screws that come with the package to fix the Plate more tightly.
  • Page 13: Connect Dc Power Supply

    [5] Install Battery on to the Battery Plate The following illustration is based on LP-E6 battery. F970/ D28S are basically the same. 1) Put the battery in right position on the Plate. 2) Push it inwardly to the utmost. [6] Uninstall Battery from the Battery Plate The following illustration is based on LP-E6 battery.
  • Page 14: Fix Hdmi Connector

    [8] Fix HDMI Connector The uniquely-designed HDMI locking mechanism can eliminated accidental disconnection completely.
  • Page 15: Menu Tree & Adjustment

    Menu Tree & Adjustment OSD (On-Screen Display) Menu helps you use various functions. The following picture is the menu structure for M501H. User may control various functions using MENU button and Knob on the front side of the monitor. Menu Control Sequence 1.
  • Page 16: Menu Operations

    Menu Operations [1] Picture ·Brightness: To set the brightness (=Offset) level from 0 to 100 ·Contrast: To set the contrast (gain) level from 0 to 100 ·Chroma: To set the chroma level from 0 to 100 ·Sharpness: To set the sharpness level from 0-100 ·Backlight: To set the backlight level from 0-100 User can also press the knob control to choose the brightness, contrast, chroma, sharpness and backlight and quickly set the values...
  • Page 17: Color

    [2] Color Color Temp -Controls color temperature and allow instant access to preset color temperature settings. -Available color temperature are 3200K, 5800K, 6500K, 9300K and User 1/2/3. -In user 1/2/3 modes, user can define custom RGB GAIN and BIAS (=Offset) values. Gain Red/Green/Blue -Used to set R/G/B Gain (or picture, contrast) level from 0 to 255.
  • Page 18: Guide Box

    [3] Guide Box Helps to activate or inactivate the Marker function. When the Marker is activated, a border line of the Safety Area will be displayed inside the marker. To set the marker type between16:10, 16:9, 15:9, 1.85:1, 2.35:1 and 4:3. User can also self -define the maker type, marker transparency, marker color and marker thickness.
  • Page 19: Function

    [4] Function 1. Picture Mode In user 1/2/3 picture modes, user can define regularly-used values of brightness, contrast, chroma, sharpness and backlight. User can set the values in picture menu. 2. Scale Mode To set the display scale mode between auto, 16:10, 16:9, 15:9, 1.85:1, 2.35:1 and 4:3.
  • Page 20 5. Freeze Freeze or defreeze the current display by scrolling the Knob up and down. 6. Single Color It is an assistant function to adjust camera color settings. Under the single color mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
  • Page 21 11. Focus Color The peaking has three color options Red, Green and Blue. 12. Camera Mode The advantage of switching to Camera mode (by pressing the button) is as follows (For Canon DSLR): 1)Fully using the screen display, while removing the black area that can be seen at auto-mode.
  • Page 22 [5] F KEY (Remote Button) The F KEY function helps to self-define functions of the following keys: F1/F2/F3 key on the front side the monitor F1/F2/F3 trigger on the external self-define button plate. Steps to define the key function: 1. Press a button (F1, F2 or F3) for 5 seconds, and then the menu list will display at the right side of the screen.
  • Page 23: System

    [6] System ·Duration: To set the menu display time from 5s, 10s, 15s and always(off) ·Language: To select the OSD language in the order of English(Default)/Chinese/ ·Transparency: To set transparency between low, middle and high ·System Reset: To change the system configuration back to default setting;...
  • Page 24: Specifications

    Product Specifications Size 5 inches Resolution 800*480 Pixel Pitch 0.045(W)x0.135(H)mm Color Depth 16.7M (8bit) H: 120 degrees Viewing Angle V: 140 degrees Luminance 350 cd/㎡ (Center) of white Contrast Ratio 500:1 Display Area 108 (H) x 64.8 (V)mm Input/Output 1x HDMI input 1x HDMI output Input Signal HDMI 480i/480p/720p/1080i/1080p...
  • Page 25: Customer Support

    It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal. Customer Support For after sales service and tech support, please contact your local distributor or us by the following email: support@musthd.com...
  • Page 26: Warranty Card

    On-camera Field Monitor (M501H) WARRANTY CARD Serial Number: Date of Purchase: Stamp and Signature of the Dealer Defect Description and Cause Name: User’s Info Addres: Tel:...
