TECHVIEW DES-700 Manual

Manual of Door Entry Alarm & Counting System
Item No.: DES-700 / DC-500
Applications
Garage Door
Overhead Door
Entrance
Super Market, Restaurant, Warehouse
DES-700 Including: Sensor / Reflector / Speaker / Adapter / Mounting bracket / screw / Manual and
Mini screwdriver for speaker
Specification
Sensing Type
Sensing Range
Input Voltage
Consumption Current
Standby Current
Light Source
Ambient Temperature
Response time of Speaker
Volume of Speaker
Alarm Time
External Chime Output
Speaker Output
Mounting Bracket and Screw
Connection Diagram 1
Adapter DC12V
To Sensor
Photoelectric
Beam Sensor
Retro-Reflection Type Door Entry Alarm System
0.5~6 meters ( 18 feet)
DC 9~15V
130mA
25 mA max.
IR LED
-20 ~50
Chime: 1 sec.
0~max. (Adjustable)
30 sec max. (Adjustable)
NPN Output
Chime / Off / Alarm (Selected by Slide Switch)
Included

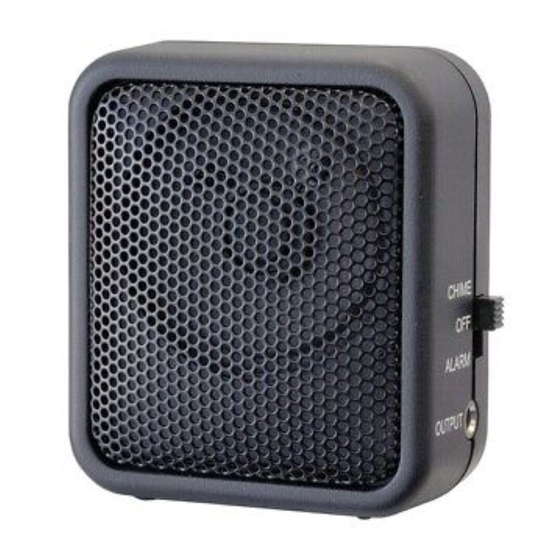

Master Speaker(A)
CHIME
OFF
DC 9~15V
ALARM
INPUT
OUTPUT
Shelter Cable Wire
Speaker
Infrared Beam
Max 6m
Slide Switch: Chime / Off / Alarm
TIMER VOLUME Timer Adjuster: 30 Seconds, Max.
Volume Adjuster: 0 ~Max
Siren Back View
SPK-200
P1
Features
Retro-Reflection Type
Sensing Range: 0.5~6 meters (18 feet)
Volume Of Speaker: adjustable
Sounding Time: 3~30 seconds adjustable
(-4 ~122 )
Alarm: 30 sec.
Front View
Extending Speaker(B)
Optional
DC 9~15V
INPUT
Twin Plugs
Speaker
CHIME
OFF
ALARM
OUTPUT
Reflector
