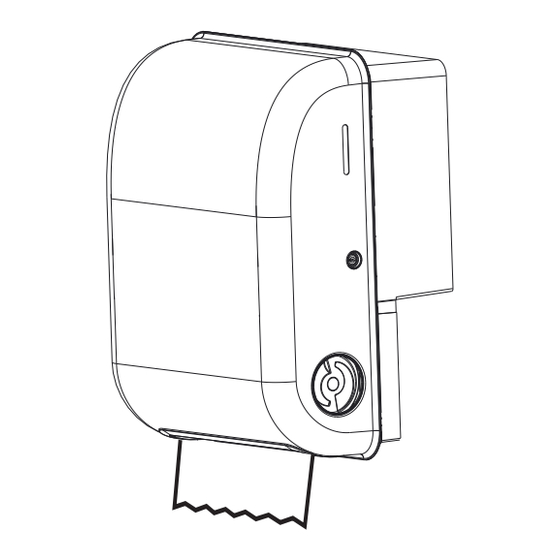

SOLARIS LOCOR® RECESSED MECHANICAL HARD WOUND ROLL TOWEL DISPENSER USER GUIDE (SKU NUMBERS D68012-A)
The LoCor Recessed Mechanical Hard Wound Roll Towel Dispenser is designed to be mounted into the wall or inside a recessed cabinet on the wall to yield
maximum space in the busy bathroom environment. The dispenser provides hands-free and battery-free operation for paper dispensing and offers an elegant
stainless steel appearance.
Outer dimension is 18.17" x 14.67" x 10.97", weighs approximately 8.7 lbs.
The dispenser is designed for an opening of 10 5/8" Width x 15 1/8" Length x 4" Depth.
TABLE OF CONTENT
I.
Dispenser Installation Instruction ......................................................................................................................... Page 2
1. Install Directly into the Wall - Using Cover Panel ...............................................................................
2a. Use Insert Filler Panel ......................................................................................................
2b. Use Hanging Filler Panel .................................................................................................. Page 5
II. Changing Mounting Side of Cover .......................................................................................................................... Page 7
III. Roll Support Installation .......................................................................................................................................... Page 8
IV. Paper Loading and Start Up ....................................................................................................................................
V. Failure Diagnostics ...................................................................................................................................................
1
Page 2
Page 5
Page 8
Page 9
Page 9
Released January 8 2018
8778002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LOCOR and is the answer not in the manual?

Questions and answers

Related Manuals for Solaris LOCOR

Summary of Contents for Solaris LOCOR

  • Page 1: Table Of Contents

    SOLARIS LOCOR® RECESSED MECHANICAL HARD WOUND ROLL TOWEL DISPENSER USER GUIDE (SKU NUMBERS D68012-A) The LoCor Recessed Mechanical Hard Wound Roll Towel Dispenser is designed to be mounted into the wall or inside a recessed cabinet on the wall to yield maximum space in the busy bathroom environment.

  • Page 2: Dispenser Installation Instruction

    I. DISPENSER INSTALLATION INSTRUCTION Recommend to use a pencil outlining the opening before cutting into the drywall: Using a tape measure, place a mark of 48” from the floor. Then use a 1. Install Directly into the Wall – Use Cover Panel level to draw a horizontal line from the mark.
  • Page 3 Step 4: Install the Two Supporting Studs Install the two studs (2” x 4” x 12”L) on the left side and right side of the opening, behind the drywall as showed in Figure 2. Figure 2. Drive three #10 x 1 1/2"L screws through the drywall into each studs on both sides (total of six screws to be used).

  • Page 4: Install Into Existing Recessed Cabinets On The Wall - Using Filler Panels

    2. Install into Existing Recessed Cabinets on the Wall – Use Filler Here are some examples of the existing recessed dispensers: Panels Recessed Paper Towel Dispenser – secured by screws/nuts Tools and materials required (not provided): Power Drill with: Phillips Head Drive 1/4”...

  • Page 5: 2A. Use Insert Filler Panel

    Step 2: Filler Panel Installation b. Use Hanging Filler Panel a. Use Insert Filler Panel Hardware provided with the Hanging Filler Panel: Hardware provided with the Insert Filler Panel: (4) Screws #6 x 1 1/4”L, Phillips Head (4) Screws #8 x 3/4”L, Hex Head (3) Double Sided Tape Strips (4) Screws #6 x 1 1/4”L, Phillips Head Remove the protecting film on the outside of the panel.
  • Page 6 Step 3: Dispenser Installation Hardware provided with the dispenser: (4) Screws #10 x 1”L, Phillips Head (4) Wall Anchors Through the front opening of the panel, slide the dispenser all the way in, make sure that the back of the dispenser is in contact evenly with the back of the cabinet.

  • Page 7: Changing Mounting Side Of Cover

    Top Hinge CHANGING MOUNTING SIDE OF COVER E-clip The cover is designed to be mounted on either left or right side of the Removable Hinge housing. Manufacturing setting is left-side mounting. To change to right-side mounting, follow steps 1 - 5: Step 1: Remove Hinge Pins (Top &...

  • Page 8: Roll Support Installation

    III. ROLL SUPPORTS INSTALLATION The dispenser is designed to accept both the 7” and 8” wide LoCor Roll Towels. It is very important to identify the width of the paper roll before installing the Roll Supports: SKU Numbers for 7” Width LoCor Paper Towel: 46897, 46898, 46899, 46902 SKU Numbers for 8”...

  • Page 9: Paper Loading And Start Up

    IV. PAPER ROLL LOADING AND START-UP V. DIAGNOSTICS For use with LoCor paper towels only (SKU numbers 46896, 46897, 46898, a. If there is no paper “tail” at the bottom of the dispenser, turn the assist 46899, 46901 and 46902). Other types of paper are not acceptable.
