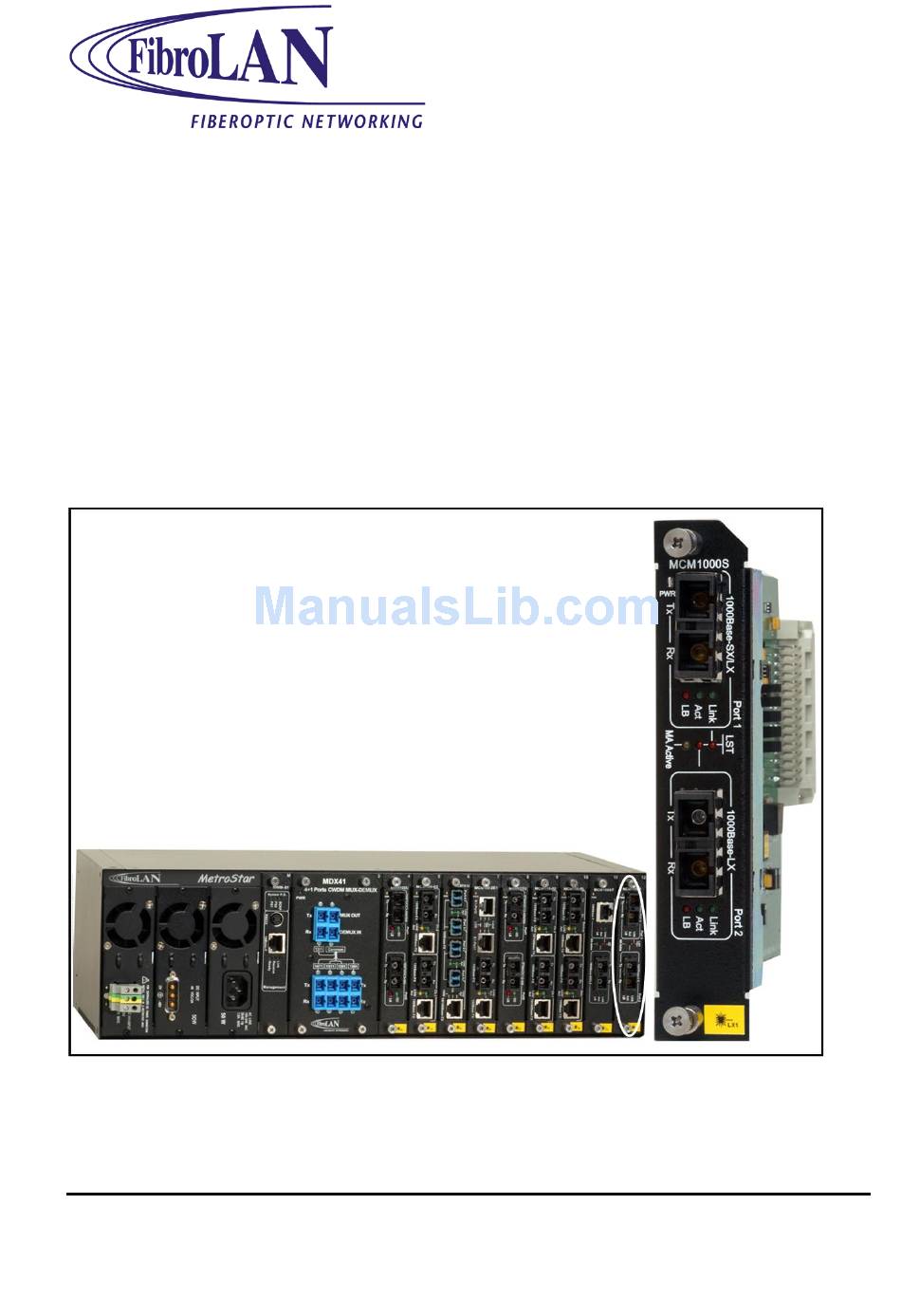

- Page 1 MCM1000S/L Module Converter/Extender 1000Base-SX/LX to 1000Base-LX User and Installation Guide Version: 2.4 FibroLAN Ltd. 2 Carmel St. P.O. Box 544 Yokneam-Illit, 20692 ISRAEL Tel: 972-4-9591717 Fax: 972-4-9591718 E-mail: support@fibrolan.com web site: www.fibrolan.com...
- Page 2 MCM1000S/L GBE module FEDERAL COMMUNICATIONS COMMISSION CANADIAN DEPARTMENT OF COMMUNICATIONS RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is...
-
Page 3: Table Of Contents
If you still need help installing or troubleshooting the MCM1000S/L converter after reading the detailed information in this guide, please visit our web site, contact your reseller, or call FibroLAN directly. (Support @fibrolan.com; Tel: +972-4-9591717; Fax: +972-4-9591718) TRADEMARKS Any trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. -
Page 4: General Description
MCM1000S/L GBE module 1 – General Description This module provides conversion from a fiber-optic multimode GBE link (1000Base-SX) to a Single Mode Link (1000Base-LX) to allow extension of up to 80km. The MCM1000S/L is based on a full digital technology: signals from one F/O port are converted to digital electrical signals, fully retimed, then converted again to F/O and transmitted from the second port. -
Page 5: Product List
Manager station. With MMM-04 module, Web management is also available Refer to section 8 for more details. The module is managed also by the FibroLAN MetroView Device Manager. Note: the firmware or software update for the various MetroStar modules and... -
Page 6: Metrostar Chassis Layout
MCM1000S/L GBE module 4 – MetroStar Chassis Layout In slot position # 3 (from the left), it is possible to install a additional redundant Power Supply or the Blank panel BP-02. Slot position # 4 is normally dedicated for the MetroStar™ SNMP management module (MMM-01or MMM-04) for standalone MetroStar™. -
Page 7: Module Front Panel
MCM1000S/L GBE module 5 – Module front panel - Parts Identification 1. Port 1 LEDs: Link: steady green lit: a F/O link has been established. Act: port 1 activity. Blinking green (receive / transmit) LB: lit red implies port 1 is in loop-back mode 2. -
Page 8: Installation Procedures
MCM1000S/L GBE module 6 – Installation procedures Slot assignment MCM1000S/L modules may be installed in any of the slots marked 1 to 12,however by installing modules systematically next to each other (from left to right) it will make it easier to install additional modules in the future allowing clear access to the slots. Installation of Modules All MetroStar™... -
Page 9: F/O Cabling Connection
MCM1000S/L GBE module 7 – Fiber Optic Connection The MCM1000S/L modules are equipped with two SC-type connectors. Do not remove the protective covers on the fiber connectors until you are ready to connect the fiber optic cables. Power should be connected (install the module into a MetroStar slot) before attaching the fiber optic cables. -
Page 10: F/O Ports Specifications
Minimal Minimal Minimal Minimal Suggested Output Receive Output Receive Distance Power Sensitivity Power Sensitivity -9.5 1310 0,2/ 0-10 MCM1000S-LX1 MCM1000S-LX2 -9.5 1310 0,2 / 5-20 MCM1000S-LX3 -9.5 1550/DFB 0,2 /10-40 MCM1000S-LX4 -9.5 1550/DFB 0,2 /25-80 MCM1000L-LX1-2 1310 1310 0-10/10-20 1310... -
Page 11: Ma Concept And Functions
MCM1000S/L GBE module 8 – MA Concept and Functions The MA™ (Micro Agent) is an on-chip management system providing the monitoring and management of remote access devices without the need of an expensive SNMP agent module. The MA™ does not require an IP address The chip is embedded in both the remote units, mostly referred to as a CPE, and in the access concentrator device deployed in the access node. -
Page 12: Mmm-4 Management Module
MCM1000S/L GBE module 9 – MMM-04 enhanced management module The MCM1000S/L module may also be managed via the MMM-04 management module. The new module is aimed at replacing the MMM-01 module currently operating with the MetroStar System. The need to redesign and replace the MetroStar management module has emerged from two main reasons: Processor –... -
Page 13: Dip Switches Setting
MCM1000S/L GBE module – DIP switches setting Each MCM1000S/L module is equipped with an array of 4 DIP switches that facilitate the proper testing and setting of the F/O ports for optimal operation. The DIP switches array is located on the motherboard. The module may contain either a “piano”... -
Page 14: Lst
MCM1000S/L GBE module – Link Segmentation Test (LST) The MCM1000S is equipped with a powerful link status alert and link testing mechanism -the “ Link Segmentation Test “, which allows the user to determine the behavior of the MCM1000S media converter when a link failure is detected and notify the Network Device on the integrity of the link. - Page 15 S4 (in GSM1000/MA or GSM1010/MA) are by default set to Test Mode (LST ON) Similar default setting applies to the MCM1000S module. 5. The correct deployment of the LST mode of operations in the FibroLAN MA managed devices depends primarily on the network topology.
-
Page 16: Sle (Subscriber Link Emulation)
MCM1000S/L GBE module – SLE (Subscriber Link Emulation) If the remote device is a FibroLAN MA™ device (GSM1000/MA or GSM1010/MA) and the MetroStar system is managed, the most powerful SLE feature may be deployed to further enhancing the network resilience. -
Page 17: Typical Configuration
MetroStar™ equipped with a management module can be monitored and managed from any SNMP management station running popular management platforms (e.g. FibroLAN’s MetroView, HP OpenView, SNMPc, etc) When the remote MA enabled devices are connected through their F/O link to a remote Access Concentrator like the MetroStar which is MA™... -
Page 18: Troubleshooting
MCM1000S/L GBE module 14 – Troubleshooting Prior to performing the following procedures, verify that the LB DIP switches are in DOWN position (loop-back disable). Verify that the LST DIP switches are in Test Mode. Perform the same setup at the remote MA device, including the disabling of SLE. Problem Indication Corrective Action... -
Page 19: Specifications
If that has solved the problem, send your MCM1000S for repair. If the problem still persists, there is probably some sort of general network failure. Call your local Fibrolan dealer or our technical support. (support@fibrolan.com Make sure to provide the following information: ... -
Page 20: Warranty Limitation
FibroLAN to its distributor. FibroLAN’s sole obligation under this warranty shall be to furnish parts and labor for the repair or replacement of products found by FibroLAN to be defective in material or workmanship during the warranty period.
