Door Entry Security

2„WIRE„DOOR„VIDEO„INTERCOM„SYSTEM
Latest in home door intercom innovation . Intelligent twin wire system that helps in creating
a quick, simple and economical installation . System setup is easy via the comprehensive
yet simple menu system . With design and style to suit todays modern home decors .
• No Polarity, twisted pair, easily to wire solution . Use CAT5 or twin core drop cable .
• One common power supply to all type solution . PC6 will run 6 units, more use PS524 .
• Supports from 1 to a Max . of 16 Monitors connected in one system (Use DBC4S)
• Expanding a system to multiple door station cameras with DBC4S (Up to 4 max .)
• Each door camera can control 2 locks . Door locks are an optional extra (EL971)
• All 2-Wire H2 products are compatible . All operate on the same twisted pair wire .

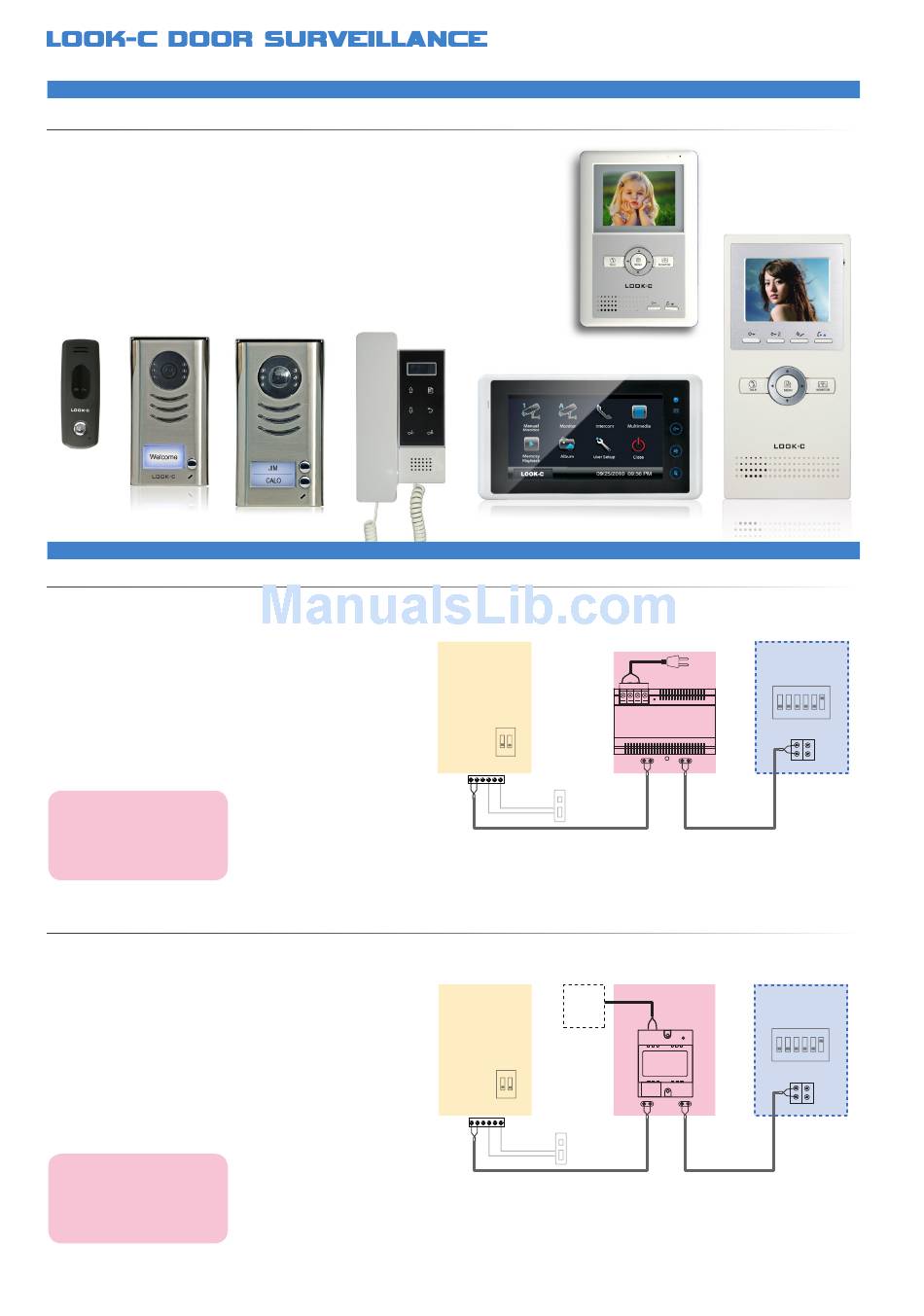

2 Wire - 1 Door - 1 Monitor

MINIMUM„SYSTEM„WITH„PC6
The simplest setup involves a Monitor, a Door Station Camera
and a Bus Power Supply (PC6) . Two wire setup as follows:
• No Polarity, twisted pair, easily to wire solution
• Use CAT5 or twin core drop cable or equivalent
• Cable distances can be up to 100M Total (CAT5)
• One common power supply to all type solution (PC6)
• PC6 is a Mains 240Vac power to 24Vdc injector 1 .2A
• The door camera can control a door strike*
• Door Strike connections may vary to that shown*
• System is expandable with additional components
*Further information available, see Door Strike Info
• Monitors: 1
• Door Camera: 1
• Power Source: PC6
• Dip Switches: Default
• Menu Settings: Default
MINIMUM„SYSTEM„WITH„DPS
The simplest setup involves a Monitor, a Door Station Camera
and a Bus Power INJECTOR (DPS) and Requires 24-28Vdc .
• No Polarity, twisted pair, easily to wire solution
• Use CAT5 or twin core drop cable or equivalent
• Cable distances can be up to 100M Total (CAT5)
• One common power supply to all type solution (DPS)
• DPS is an injector that requires an external power source
• Requires 24Vdc to 28Vdc with 1A for this minimal system
• Each door camera can control a door strike*
• Door Strike connections may vary to that shown*
• System is expandable with additional components
*Further information available, see Door Strike Info
• Monitors: 1
• Door Camera: 1
• Power Source: DPS
• Dip Switches: Default
• Menu Settings: Default
2
Door
Camera
Door
Camera
LOOK-C INSTRUCTIONS
PC6
#1
ON
1 2
BUS
DS
Door
Strike*
DC
24V
1.2A+
DPS
#1
ON
1 2
BUS
DS
Door
Strike*
Monitor
AC~
Monitor 1 DIP=00
ON
1 2 3 4 5 6
Impedance DIP-6=on
BUS
IM
Monitor
Monitor 1 DIP=00
ON
1 2 3 4 5 6
Impedance DIP-6=on
BUS
IU
