Quick Installation Guide
Cable Outlet Description
1. The camera features two waterproof connectors,
the right one in the diagram is for PoE connection,
while left one is for line in, line out, DC 12V/AC
24V and DI/O connections.
2. The left one features four wire holes. Please
cover unused holes with sealing plugs to prevent
water from entering.
3. Applicable cable diameter:
* Ø 2.5~1.8mm (Left)
* Ø 6.9~4.7mm (Right)
Hardware Installation
Web Browser (Internet Explorer)
1. Locate and open the Internet Explorer (IE) shortcut on the desktop.
2. In the address bar, type 192.168.1.168 (default IP address of the camera) and then press the
Enter button.
3. You will be prompted with a pop-up window asking for logininformation, type in "admin" (default
login name) and"9999" (default password)

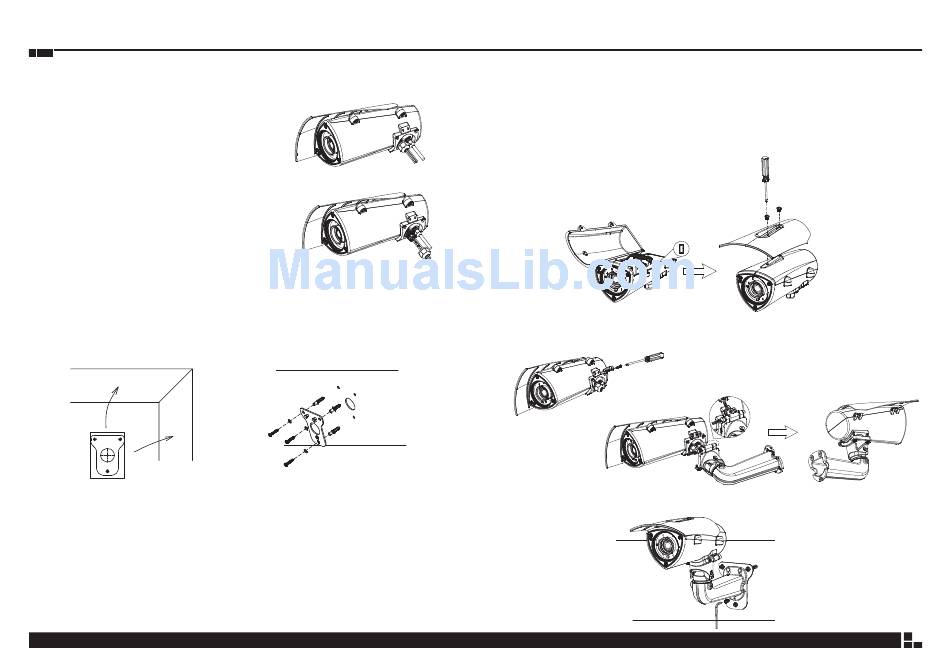

3. Open the camera's cover and glue the dehumidifier packet onto the metal bracket using the
adhesive sticker on its back, as depicted in the diagram below. Close the camera's cover and
ensure the clip is locked in position. Install the sunshield and tighten a torx screw on the side of
cover.
Line out
Ethernet
Line in
DC12V/AC24V
DI/DO
4. Secure the connecting bracket to the
camera's rear.
6. Align the mounting holes on the wall mount bracket to the mounting holes on the wall mount plate,
then secure it tightly with screws to finish the installation.
Ver.A (P/N: 60177A0389X00)
5. Press and hold down the latch on the wall
mount bracket and put it into the connecting
bracket. Once in place, secure the other side
using the supplied hex wrench.
Press
