Summary of Contents for jobmate JMCMS18G

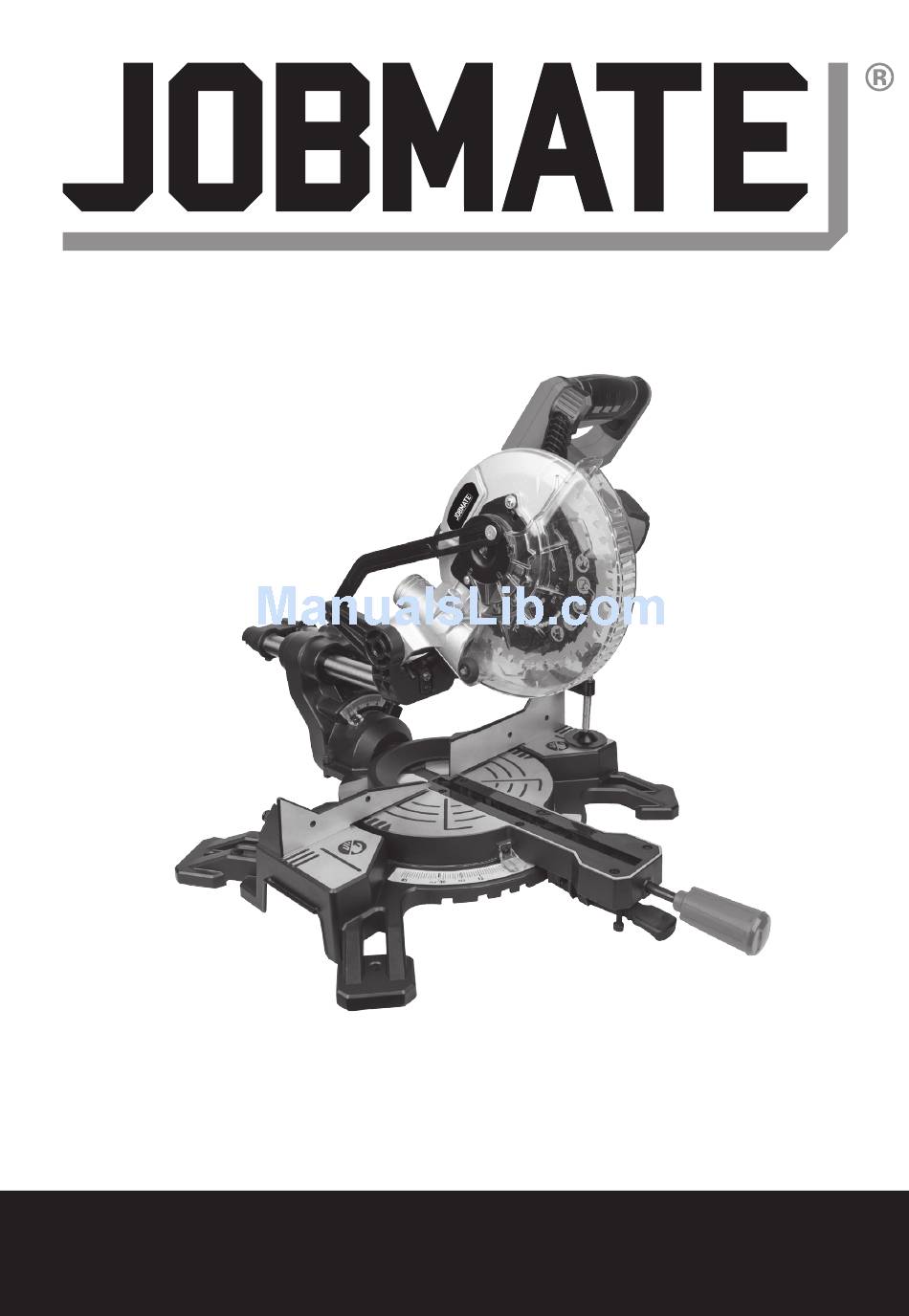

- Page 1 SAFETY AND OPERATING MANUAL MITRE SAW JMCMS18G...
-
Page 2: Work Area Safety
PRODUCT SAFETY (RCD) protected supply. Use of an RCD reduces the risk of electric shock. GENERAL POWER TOOL 3) PERSONAL SAFETY a) Stay alert, watch what you are doing and SAFETY WARNINGS use common sense when operating a power tool. Do not use a power tool while you are WARNING! Read all safety warnings, tired or under the influence of drugs, alcohol instructions, illustrations and... -
Page 3: Safety Instructions For Mitre Saws
SAFETY INSTRUCTIONS FOR starting the power tool accidentally. d) Store idle power tools out of the reach of MITRE SAWS children and do not allow persons unfamiliar with the power tool or these instructions a) Mitre saws are intended to cut wood or to operate the power tool. -
Page 4: Additional Safety Instructions For Your Battery Charger
cutting. There should be no nails or foreign Continued sawing with a jammed workpiece could cause loss of control or damage to the objects in the workpiece. h) Do not use the saw until the table is clear mitre saw. r) After finishing the cut, release the switch, of all tools, wood scraps, etc., except for the workpiece. -
Page 5: Safety Warnings For Battery Pack
ill-suited models. refer to this instruction and use the correct charging 12. Ensure that the connection between the battery procedure. charger and battery is correctly positioned and is j) Do not maintain battery pack on charge when not in use. k) After extended periods of storage, it may be not obstructed by foreign bodies. - Page 6 SYMBOLS acceptable. Bright shiny reflective sheet steel or similar is not suitable for laser applications as the reflective surface may direct the laser To reduce the risk of injury, user must beam back at the operator. read instruction manual 5. Do not change the laser device with a different type.
-
Page 8: Component List
COMPONENT LIST 1. Operating handle 2. Release latch 3. Upper fixed blade safety guard 4. Lower rotating blade safety guard 5. Laser light 6. Fence 7. Table insert 8. Mitre table lock knob 9. Mitre latch 10. Mitre scale 11. Mitre table 12. -
Page 9: Technical Data
TECHNICAL DATA Rated voltage No load speed 3600/min Blade size 185mm Cutting capacity Mitre 0°/Bevel 0° 200 x 51 mm Mitre 0°/Bevel 45° 200 x 35 mm Mitre 45°/Bevel 0° 152 x 51 mm Mitre 45°/Bevel 45° 152 x 35 mm Bevel capacity 0~45o Mitre capacity... -
Page 10: Intended Use
OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. INTENDED USE The electro-tool is intended as a stationary machine for making straight lengthways and crossways cuts in wood. Horizontal mitre angles of 0 ~ 45 L&R as well as vertical bevel angles of 0° to +45° are Fig.A possible. -
Page 11: Operation
workbench to the floor before operating. Fig.B WARNING: Always make sure your compound mitre saw is securely mounted to a workbench or an approved work-stand. Failure to do so could result in an accident, resulting in possible serious personal injury. When the saw is boxed, in storage, or being transported, make sure that the saw head is locked in the down position. - Page 12 Fig.D 4. Press mitre lock plate down with your thumb and the saw table. hold. 10. Align cutting line on the work-piece with the edge 5. Rotate the control arm until the pointer aligns with on the saw blade. the desired angle on the mitre scale. 11.
-
Page 13: Setting The Table Square With The Blade
take several settings to obtain the desired cut. The support the work-piece with a roller stand or other first angle setting should be checked after setting support to bring the work-piece level with the saw the second angle, since adjusting the second angle table. -
Page 14: Setting The Fence Square With The Table
4) Rotate the table until the pointer is positioned at 0°. 1) Make sure that the battery pack is removed from 5) Release mitre latch and tighten the mitre locks. the machine. 6) Loosen the bevel lock and set the saw arm at 2) Push down on the operating handle and pull the 0°bevel (the blade at 90°to the mitre table). - Page 15 your power tool. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. FOR BATTERY TOOLS The ambient temperature range for the use and storage of tool and battery is 0℃-45℃.
