Summary of Contents for AOD 172N

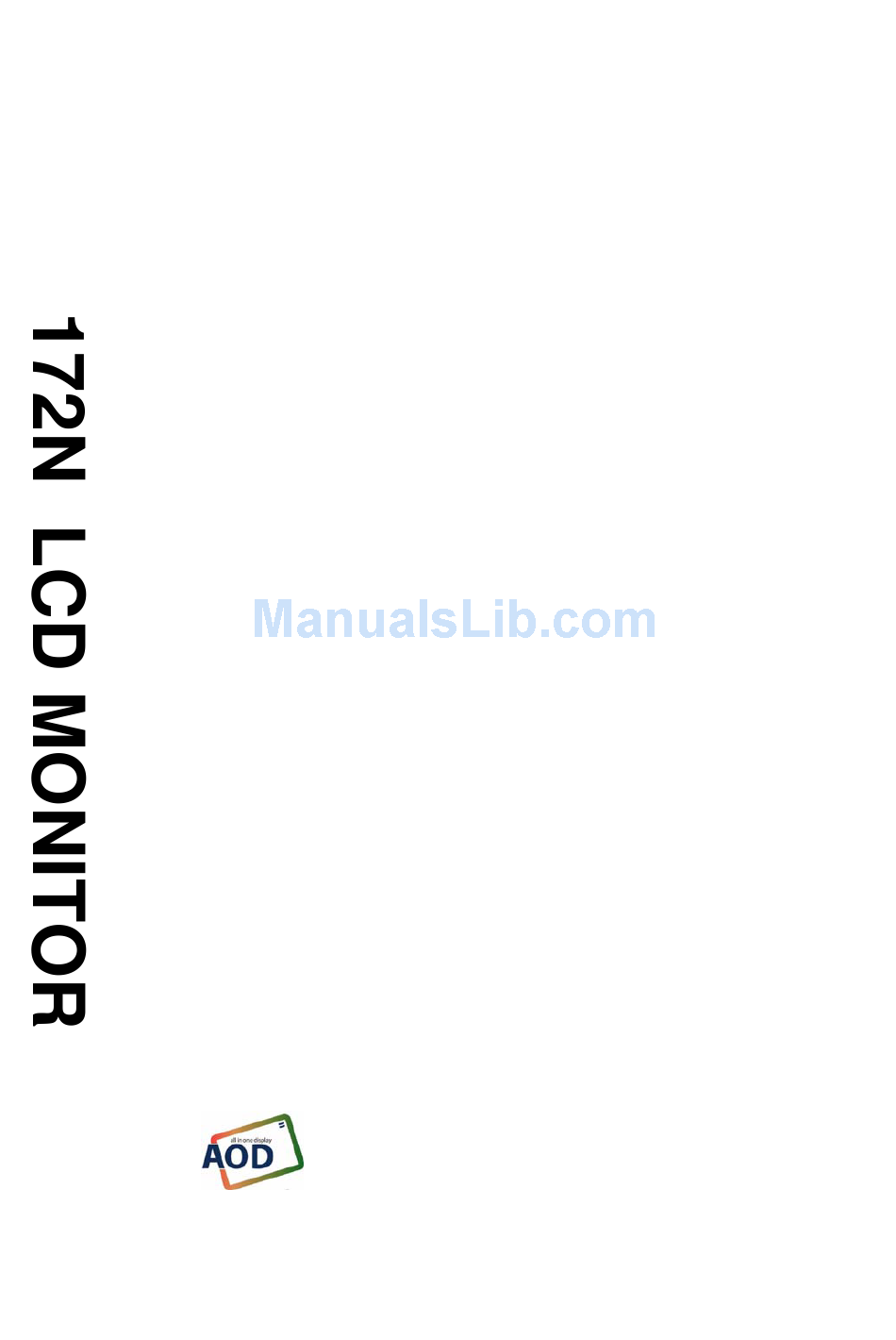

- Page 1 MENUAL ALLINONE DISPLAY INC. www.aodlcd.com...
- Page 2 FCC NOTE :This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 0. Connection To the Monitor 1. Installation 2. Features 3. Plug and Play Function 4. Safety Precautions 5. Contents Of the Retail Package 6. OSD (On-Screen-Menu) 7. OSD Controls 7.1 Brightness 7.2 Contrast 7.3 H.Position 7.4 V.Position 7.5 CLOCK 7.6 CLOCK PHASE 7.7 COLOR Control... -
Page 4: Installation
Connect DC cord of adapter (12V DC) to the monitor.. 2. Features • 172N is 17” SXGA LCD monitor and support up to 75Hz. • You can adjust brightness, contrast, horizontal & vertical positions by OSD menus and use auto adjust function for instant adjustment. -
Page 5: Plug And Play Function
3. Plug and Play Function 172N can be installed and connected automatically to any computer systems without driver CD or software programs. Monitor will recognize the optimized value of video mode by DDC(Display Data Channel) method that makes the graphic card of computer to communicate with the monitor. -
Page 6: Contents Of The Retail Package
5. Contents Of the Retail Package Monitor VGA Cable User’s Manual AC/DC Adaptor Power Cord Audio Cable... -
Page 7: Osd (On-Screen-Menu)
6. OSD (On-Screen-Menu) Menu Enter < > Power Function Status Buttons Hot key Power Turn the power ON or Off ON/OFF Green(ON) / Red (Stand-by) Operating condition Orange : No Signal Auto/ Auto Adjust/ Auto Adjust/ (exit) Menu OFF Menu OFF Launch OSD Menu or Move to OSD Menu Adjust Brightness... -
Page 8: Osd Controls
OSD Controls 1. Color MENU Select COLOR UP / DOWN KEY COLOR Adjust Contrast Adjust Brightness Contrast Brightness Adjust Color Gamma Correct Color Temp Adjust Color Temp Color Adjust Adjust R.G.B value Exit 1024 x 768 2. PICTURE MENU Select PICTURE UP / DOWN KEY Adjust Horizontal Position PICTURE... - Page 9 4. OSD MENU MENU Select OSD MENU UP / DOWN KEY OSD MENU Select Language Language Adjust OSD Horizontal Position OSD H.Position OSD V.Position Adjust OSD Vertical Position OSD Timer Translucent Select OSD Auto Timer Exit Select transparent status of OSD menu 1024 x 768 5.
-
Page 10: Troubleshooting
8. Troubleshooting TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The monitor does not respond after you turn on the system. Make sure that the monitor is turned on. Turn off the power and check the monitor’s power cord, AC adapter, and signal cable for proper connection. -
Page 11: Specifications
9. Specifications Model 17 inch SXGA LCD Monitor Display Type 17” Color Active Matrix LCD Color 16M(8 bit/color) Pixel 0.264 x 0.264 mm Screen Size 337.92 (H) x 270.336 (V) mm Resolution (Max) 1280 x 1024 at 60 to 75Hz Contrast Ratio 500:1 Brightness... -
Page 12: Video Mode
11. Video Mode ♦ Below values are set by Manufacturer Mode Resolution Refresh rate H-freq. Pixel freq. Remarks 640 x 350 70Hz 31.47KHz 25.175MHz VESA Standard 720 x 400 59.940HZ 31.469KHZ 25.175MHZ IBM VGA 3H 640 x 480 60Hz 31.5KHz 25.175MHz Industry Standard 640 x 480...
