Wheatstone EMX-16 Quick Manual

Emx series ip console

Advertisement

Quick Links

EMX
LEFT CUE SPKR
LEFT SIDE
PANEL
QUAD
FADER
PANEL
EMX-16 = 4
EMX-20 = 5
EMX-24 = 6
FADER CHANNEL STRIP (16, 20, or 24)
FADER CHANNEL CONTROLS
CHANNEL ENCODER
Source selection &
Advanced Channel
Feature control
SOFT BUTTONS (x3)
Functions assigned
by Engineering
PGM BUS ASSIGN (x4)
OFF LINE BUS ASSIGN
AUTO FB *
Automatic Fold Back
TALKBACK *
* Buttons active only
with a caller or remote
CUE
FADER MARKS
Unity gain position
CHANNEL FADER
CHANNEL DISPLAY
Shows source name
& source status. When
Channel Encoder is
used, shows visable
source names or the
Advanced Channel
Feature settings
CHANNEL ON
CHANNEL OFF
1 of 2
IP Console

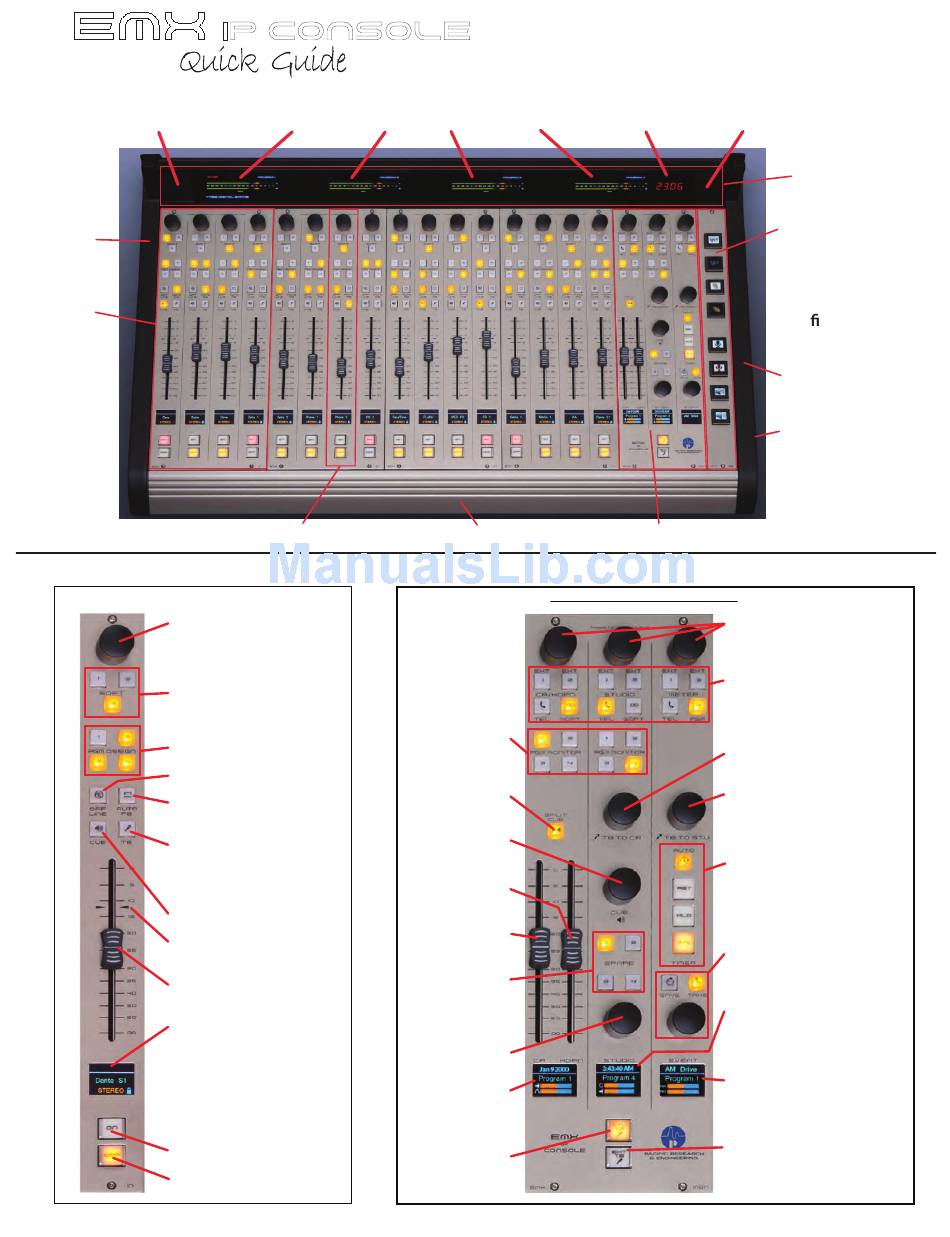

EMX SURFACE PARTS
METERS: PGM 1 PGM 2 PGM 3 SWITCHED
PALM REST
MONITOR CONTROL PANEL
MONITOR CONTROL PANEL CONTROLS
CONTROL COLUMNS
CR
STUDIO
PGM MONITOR
BUTTONS
CR & Studio
SPLIT CUE
Headphone
cue control
CUE SPEAKER
LEVEL
HEADPHONE
FADER
CR MONITORS
FADER
SPARE 1-4
BUTTONS
Engineering-
assigned
functions
STUDIO
MONITORS
LEVEL
CR DISPLAY
Date, monitor
source for CR,
CR & HDPN
levels
STUDIO TB
Talkback to
Studio control
EMX-16: 041290
EMX-20: 041291
EMX-24: 041293
TIMER
RIGHT CUE SPKR
ACCESSORY PANEL
(optional SS-8 panel
standard frame
- the wide frame has
RIGHT SIDE PANEL
BOARD OPERATOR
HEADPHONE JACK
METER
SOURCE SELECTORS
For on-the-fly monitor
or meter source selection
MONITOR SELECT BUTTONS
For CR, Studio, & Switched
Meter with both dedicated
and engineering-set sources
TALKBACK INTO
CONTROL ROOM
Level control
TALK TO STUDIO
Level control
TIMER CONTROLS
Auto - Restart timer with
channel on switches
RST, HOLD, S/S - Reset,
hold timer, timer start/stop
CONSOLE EVENT CONTROLS
Save & Take buttons
& Event selector
STUDIO DISPLAY
Time, monitor source
for the Studio, cue &
studio monitor levels
METER DISPLAY
Event name, switched
meter source, levels for
the talkback controls
EXT TB
Talkback to external
control or engineering-
assigned function
EMX-16W: 041295
EMX-20W: 041292
EMX-24W: 041294
METER BRIDGE
shown in the
ve panels)
(in side panel)
041298 rev A
