Midea DR Installation Instructions

Installation Instructions for MIDEA FMVDR series
B e f o r e y o u s t a r t
Read and understand this manual before operating this equipment. The manual should be kept for future reference along with the product supplied.
Improper installation or handling will cause leakage, electric shock, or fire.
DR control box is only to be installed by a qualified person who is familiar with the installation, construction, operation or maintenance of the
equipment and the hazards involved. In addition this person is competent, trained and authorized to undertake the work involved in accordance with
established safety and working procedures.
Do not turn on the power before all work has been completed. Otherwise it may cause serious accidents such as electric shock or fire.
1. FEATURE
This product is designed to be compatible with an air conditioning demand response program. The DR control box connected with your air conditioner and the
Demand Control Signal Receiver (DCSR) which is field supplied needs to be installed in your air conditioning system. A separate arrangement with the energy provider to
access the Demand Response feature must be made.
The power consumption of the compressor will be reduced after receipt of the signal from the energy provider if the DR control box is fitted to the pre configured air conditioner.

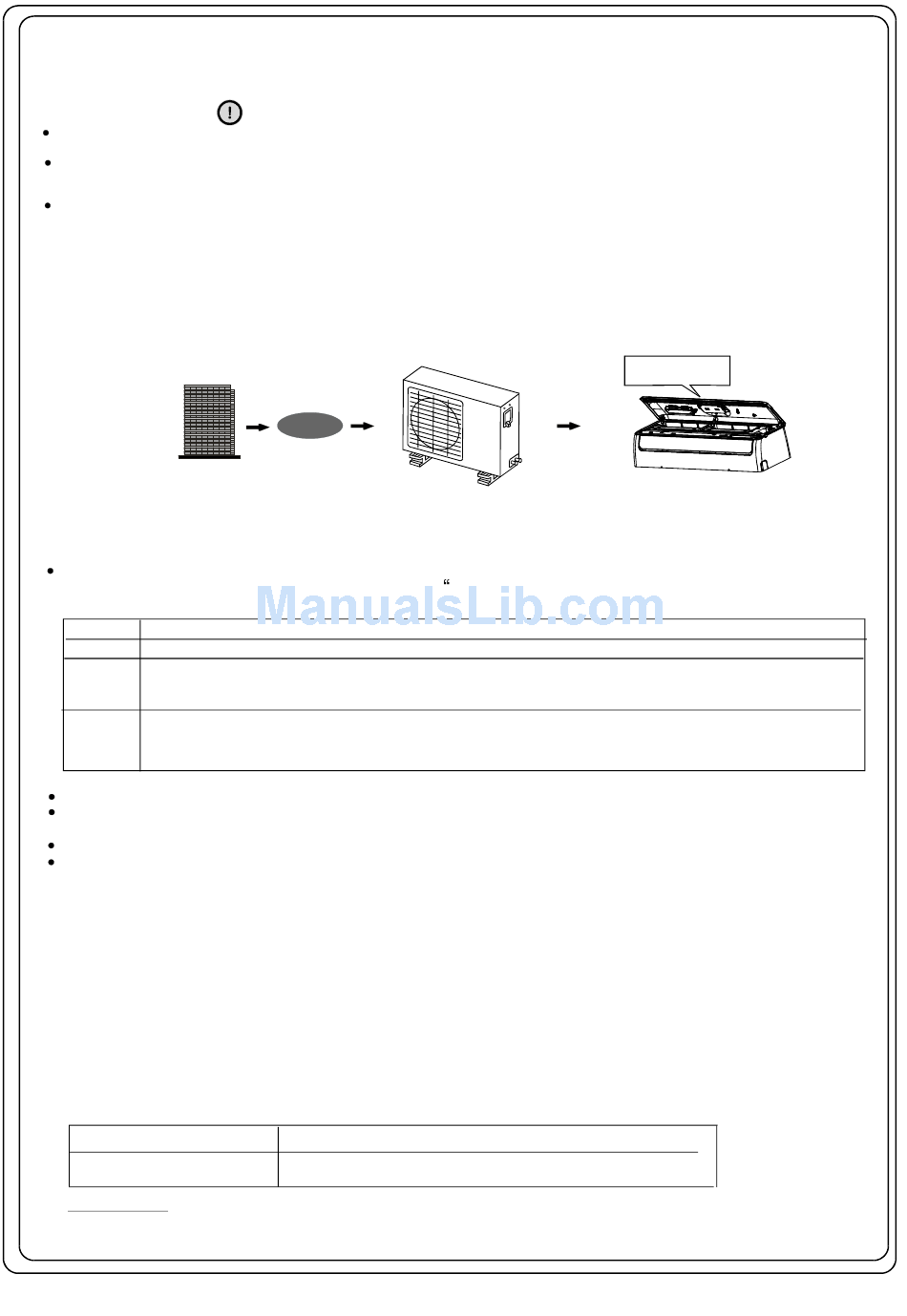

Demand Response Flow:
Energy provider
2. FUNCTIONS
During the operation of the unit, if the DR control box receives the signals via the mains input from the DCSR, it will send signals of
DR1,DR2 or DR3 to the indoor unit. The indoor unit display area will display d1, d2 or d3. The DR information(including DR malfunction)
cannot be displayed when the unit is off or under abnormal condition, self clean operation, or LED display feature is activated.
Description of operation in this mode
DR mode
DR mode 1 Compressor off.
The air conditioner continues to cool or heat during the Demand Response event, but the electrical energy consumed
DR mode 2
by the air conditioner in a half hour period is not more than 50% of the total electrical energy that would be consumed if
operating at the rated capacity in a half hour period.
The air conditioner continues to cool or heat during the Demand Response event, but the electrical energy consumed
DR mode 3
by the air conditioner in a half hour period is not more than 75% of the total electrical energy that would be consumed if
operating at the rated capacity in a half hour period.
When a DR signal input malfunction occurs, the display area of indoor unit will display "dE" and the unit will operate without DR mode.
Initiating a forced cool operation under DR mode, or going into DR mode under forced cool operation are both valid.
Whilst in DR mode and operation on forced cool mode for half an hour, the unit will go into Auto mode with a SET temperature of 24
DR mode is not valid under Self Clean operation but activating Self Clean feature using the remote controller is valid whilst in DR mode.
When the unit goes into a DR mode, it performs moderate operation though the cooling or heating effect may be reduced.
NOTE : The DR control box is specially designed with ON/OFF function and Switch function controlled externally.
Multiple units can be controlled simultaneously. A magnetic ring should be used if the connective cable is too long.
Maximum length of the connective cable is not to exceed 100 meters from the external control switch to the end wire.
ON/OFF function: When the external control switch is opened, the indoor unit will go into Auto mode with the setting
temperature of 24 C. When the external control switch is closed, the indoor unit turns off automatically. The remote
controller is enabled regardless of ON or OFF state of the indoor unit . No prioritized operation between the remote
controller and the external control switch
SWITCH function: The interfaces of SWITCH 1 and SWITCH 2 have been connected by placing a jumper cap on
CN42 position(see wiring diagram on next page)in the factory. If connecting to the external control switch, make sure
to remove the jumper cap on CN42 first. When the external control switch is closed, the indoor unit is adjustable and
the remote controller is enabled. When the external control switch is opened, the indoor unit is forced shutdown,
the display area of indoor unit will display "CP" and the remote controller is disabled.
3. Accessories(packed with outdoor unit)
DR Connective wire A
DR Connective wire B
IMPORTANT:
During connection, no wires should be allowed to touch refrigerant tubing, the compressor or any high voltage
parts. DR connective wires A& B should be fixed with band to ensure they are firmly connected.
DR CONTROL BOX
DR CONTROL BOX
DCSR
Fig.1
Connecting the indoor unit & outdoor unit (Length: 9m)
Connection to DR terminal board of outdoor unit(Length:250mm)
Energy saving
O C.
