PYLE Audio PLMRWB652LEW Installation Instructions & User Manual

INSTALLATION INSTRUCTIONS FOR
PLMRWB652LEW/PLMRWB652LES/PLMRWB652LEB
PLMRWB852LEW/PLMRWB852LES/PLMRWB852LEB
Product Technical Parameters
MARINE SPEAKER PLMRWB652LEW/PLMRWB652LES/PLMRWB652LEB
MODEL
- Dual 2-Way Mini Box Speaker System
- Long Excursion Woofer
- 1.0"Titanium Dome Tweeter
- Heavy Duty ABS Construction
- Quick Connect Speaker Terminals
- Max Power
- Magnet
- Frequency Response
- Impedance
- Sensitivity
- Dimensions(mm)
MARINE SPEAKER PLMRWB852LEW/PLMRWB852LES/PLMRWB852LEB
MODEL
- Dual 2-Way Mini Box Speaker System
- Long Excursion Woofer
- 1.0"Titanium Dome Tweeter
- Heavy Duty ABS Construction
- Quick Connect Speaker Terminals
- Max Power
- Magnet
- Frequency Response
- Impedance
- Sensitivity
- Dimensions(mm)
2x6.5"
2x200 Watts
10 Oz
60Hz-20KHz
4 Ohms
90 dB
283x480x240 mm (HxWxD)
2x8"
2x300 Watts
20 Oz
40Hz-20KHz
4 Ohms
91 dB
340x577x290 mm (HxWxD)

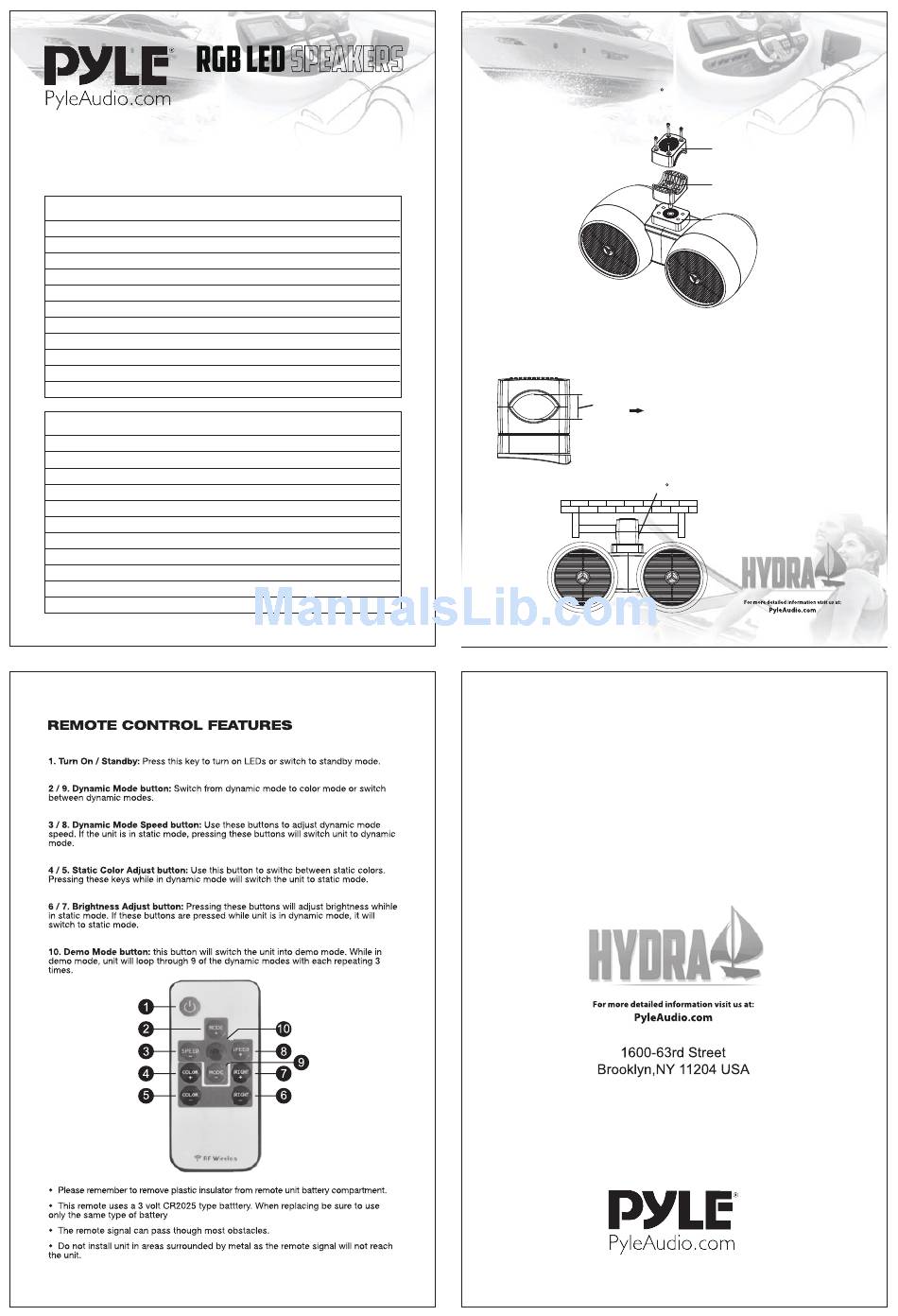

PART 1.
1.The base of the bracket.
2.The connecting base of the bracket,360 ratation,connect to picture1.
3.The cover of the bracket,is fixed by 4 mounting screws after picture 2 rotates to an angle.
Remark:two types of screws for choice:M5x65/M5x80
PART 2.
Mounting hole dimension
1 1/3" 1 3/4"
(3.4cm) (4.45cm/6cm)
360 Rotation
3
2
1
2 2/5"
