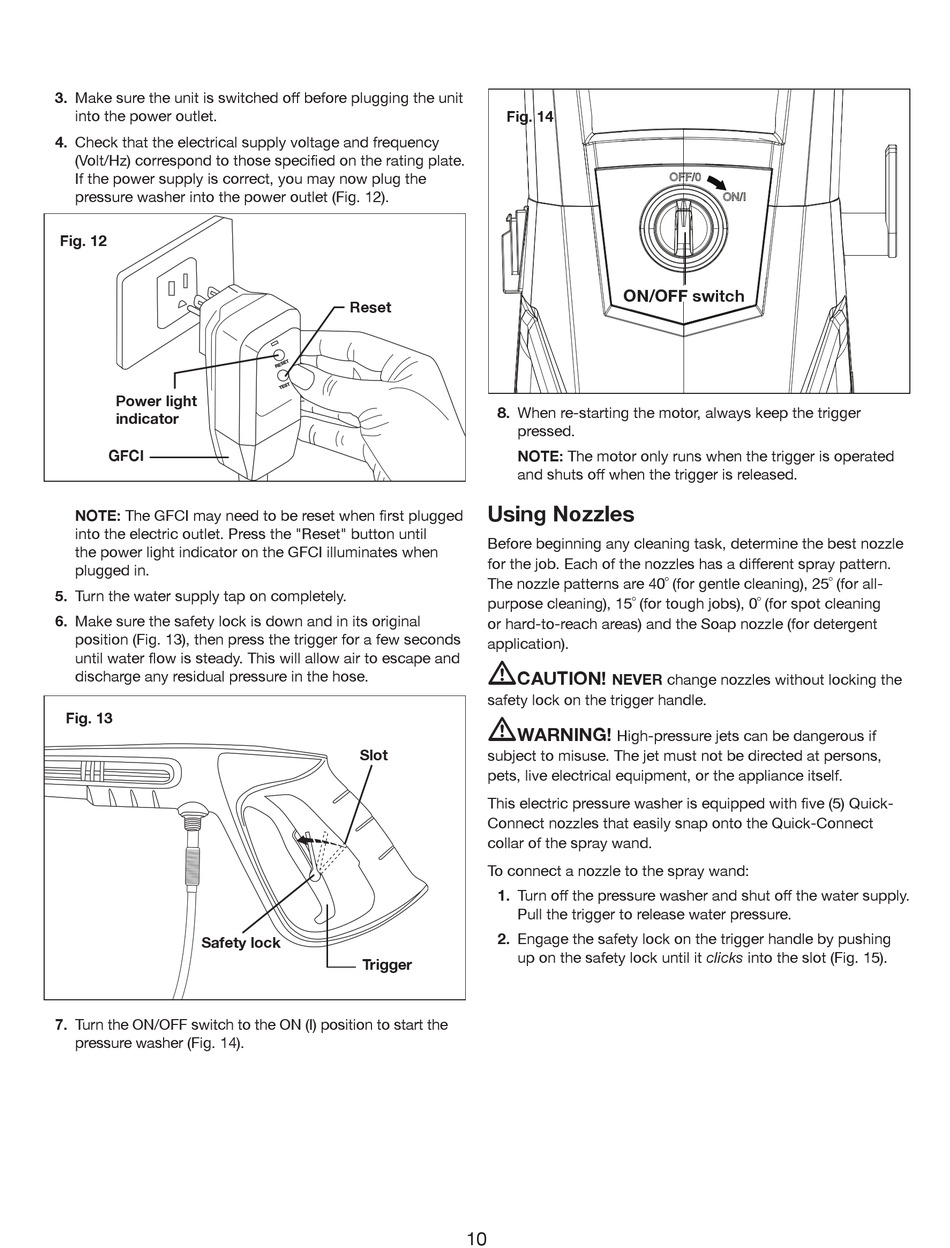

sunjoe SPX3500 Operator's Manual page 10

3. Make sure the unit is switched off before plugging the unit
into the power outlet.
4. Check that the electrical supply voltage and frequency
(Volt/Hz) correspond to those specified on the rating plate.
If the power supply is correct, you may now plug the
pressure washer into the power outlet (Fig. 12).
Fig. 12
Power light
indicator
GFCI
NOTE: The GFCI may need to be reset when first plugged
into the electric outlet. Press the "Reset" button until
the power light indicator on the GFCI illuminates when
plugged in.
5. Turn the water supply tap on completely.
6. Make sure the safety lock is down and in its original
position (Fig. 13), then press the trigger for a few seconds
until water flow is steady. This will allow air to escape and
discharge any residual pressure in the hose.
Fig. 13
Safety lock
7. Turn the ON/OFF switch to the ON (I) position to start the
pressure washer (Fig. 14).
Fig. 14
Reset
8. When re-starting the motor, always keep the trigger
pressed.
NOTE: The motor only runs when the trigger is operated
and shuts off when the trigger is released.
Using Nozzles
Before beginning any cleaning task, determine the best nozzle
for the job. Each of the nozzles has a different spray pattern.
The nozzle patterns are 40˚ (for gentle cleaning), 25˚ (for all-
purpose cleaning), 15˚ (for tough jobs), 0˚ (for spot cleaning
or hard-to-reach areas) and the Soap nozzle (for detergent
application).
m
CAUTION!
safety lock on the trigger handle.
m
WARNING!
Slot
subject to misuse. The jet must not be directed at persons,
pets, live electrical equipment, or the appliance itself.
This electric pressure washer is equipped with five (5) Quick-
Connect nozzles that easily snap onto the Quick-Connect
collar of the spray wand.
To connect a nozzle to the spray wand:
1. Turn off the pressure washer and shut off the water supply.
Pull the trigger to release water pressure.
2. Engage the safety lock on the trigger handle by pushing
up on the safety lock until it clicks into the slot (Fig. 15).
Trigger
10
ON/OFF switch
NEVER change nozzles without locking the
High-pressure jets can be dangerous if
