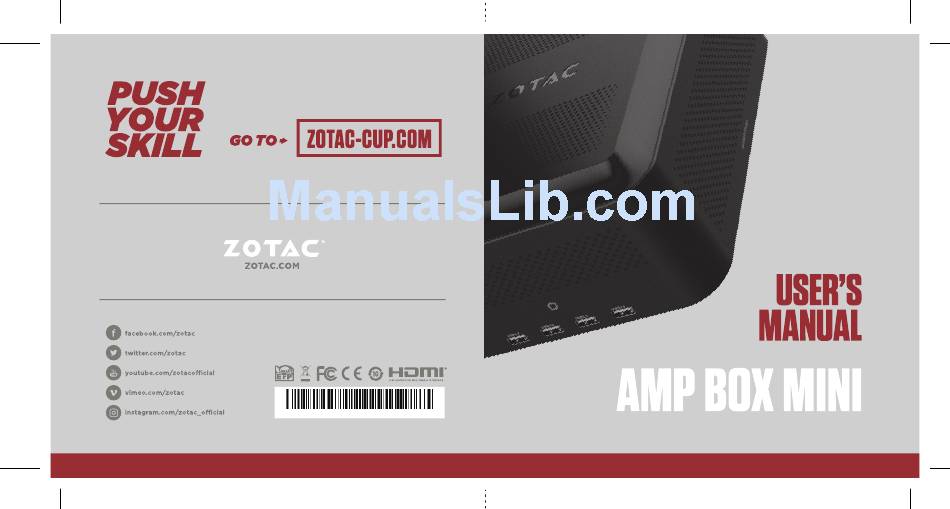

  • Page 1 291-MH137-01R7F...
  • Page 2 ZOTAC AMP BOX MINI User’s Manual No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except by the purchaser for backup purposes, without the express written permission of ZOTAC.

  • Page 3: Table Of Contents

    Setting up your system -------------------------------------------------------------------------- 4 Care during use ----------------------------------------------------------------------------------- 4 Welcome ------------------------------------------------------------------------------------------------ 5 Package contents --------------------------------------------------------------------------------- 5 Getting to know your ZOTAC AMP BOX MINI ----------------------------------------------- 6 Front view ------------------------------------------------------------------------------------------- 6 Rear view-------------------------------------------------------------------------------------------- 7 Installing hardware inside the ZOTAC AMP BOX MINI----------------------------------- 8...

  • Page 4: Product Specifications

    Product specifications Product dimensions • 183mm x 230mm x 99mm System requirements • Thunderbolt 3 host system Operating system • Windows 10 USB ports • Four USB 3.0 ports 40Gb/s Thunderbolt 3 support • Four lanes of PCI Express Gen3 •...

  • Page 5: Safety Information

    Safety information Your ZOTAC AMP BOX MINI is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system Read and follow all instructions in the documentation before you operate your system.

  • Page 6: Welcome

    Welcome Congratulations on your purchase of the ZOTAC AMP BOX MINI. The following illustration displays the package contents of your new ZOTAC AMP BOX MINI. Please contact your retailer if any of the below items are damaged or missed. Package contents •...

  • Page 7: Getting To Know Your Zotac Amp Box Mini

    Getting to know your ZOTAC AMP BOX MINI Front view 1. Power LED The power LED becomes red in standby mode, and turns green when booting. 2. USB 3.0 ports The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards compatible with USB 2.0/1.1 devices.

  • Page 8: Rear View

    Rear view 1. Thunderbolt 3 port The Thunderbolt 3 port is only for connecting to the Thunderbolt 3 Host. 2. Power input (DC19V) The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the Box. To prevent damage to the Box, always use the supplied power adapter.

  • Page 9: Installing Hardware Inside The Zotac Amp Box Mini

    Installing hardware inside the ZOTAC AMP BOX MINI Before installing hardware, please follow the instructions below to remove the cover of your ZOTAC AMP BOX MINI. 1. Remove the two rear thumb screws. 2. Gently lift up the cover and remove as shown below.

  • Page 10: Installing A Single-Slot Card

    Installing a single-slot card 1. Remove the two thumb screws from the frame bracket. 2. Gently lift up and remove the frame bracket.
  • Page 11 3. Press the lever of riser card and remove the riser card from the PCIe slot. lever 4. Install the riser card to your card (taking PCIe SSD as an example).
  • Page 12 5. Remove the lower screw and remove the lower single-slot bracket. 6. Install the single-slot card to the frame bracket as shown below.
  • Page 13 7. Install the screw. 8. Insert the frame bracket with single-slot card into the Box, and press the riser card into the PCIe slot.
  • Page 14 9. Install the thumb screws. 10. Reinstall the cover and the rear thumb screws.

  • Page 15: Installing A Double-Slot Card

    Installing a double-slot card 1. Follow the instructions on page 9-10 to remove the frame bracket and the riser slot. 2. Remove the two screws and brackets from the frame bracket. 3. Install the double-slot card to the frame bracket (taking a two slot Graphics card as an example).
  • Page 16 4. Tighten and secure the Graphics card to the bracket with the screws provided. 5. Install the riser card to your double-slot card.
  • Page 17 6. Connect one end of the provided 6-pin power cable to the power connector on the motherboard. (shown below) Note: This step is only required if the installed add-on card requires an additional 6-pin power connector to operate. 7. Connect the other end of the 6-pin power cable to the add-on card.
  • Page 18 8. Insert the add-on card with frame bracket back into the box and slide the Riser card into the PCI-e slot. 9. Install the thumb screws to secure it.
  • Page 19 10. Reinstall the cover and the rear thumb screws.

  • Page 20: Setting Up Your Zotac Amp Box Mini

    Connect the Thunderbolt 3 port to Thunderbolt 3 Host with the Thunderbolt 3 cable. 2. Connecting the power adapter and turning on the ZOTAC AMP BOX MINI Connect the supplied AC adapter to the DC IN jack on the rear panel then switch on...

  • Page 21: Approving Thunderbolt Devices

    Approving Thunderbolt Devices When connecting the ZOTAC AMP BOX MINI to Thunderbolt Host for the first time, follow the below steps to approve Thunderbolt™ devices. 1. When the following dialog box appears, click and select “Always Connect”. 2. Click “OK” to complete installation.
