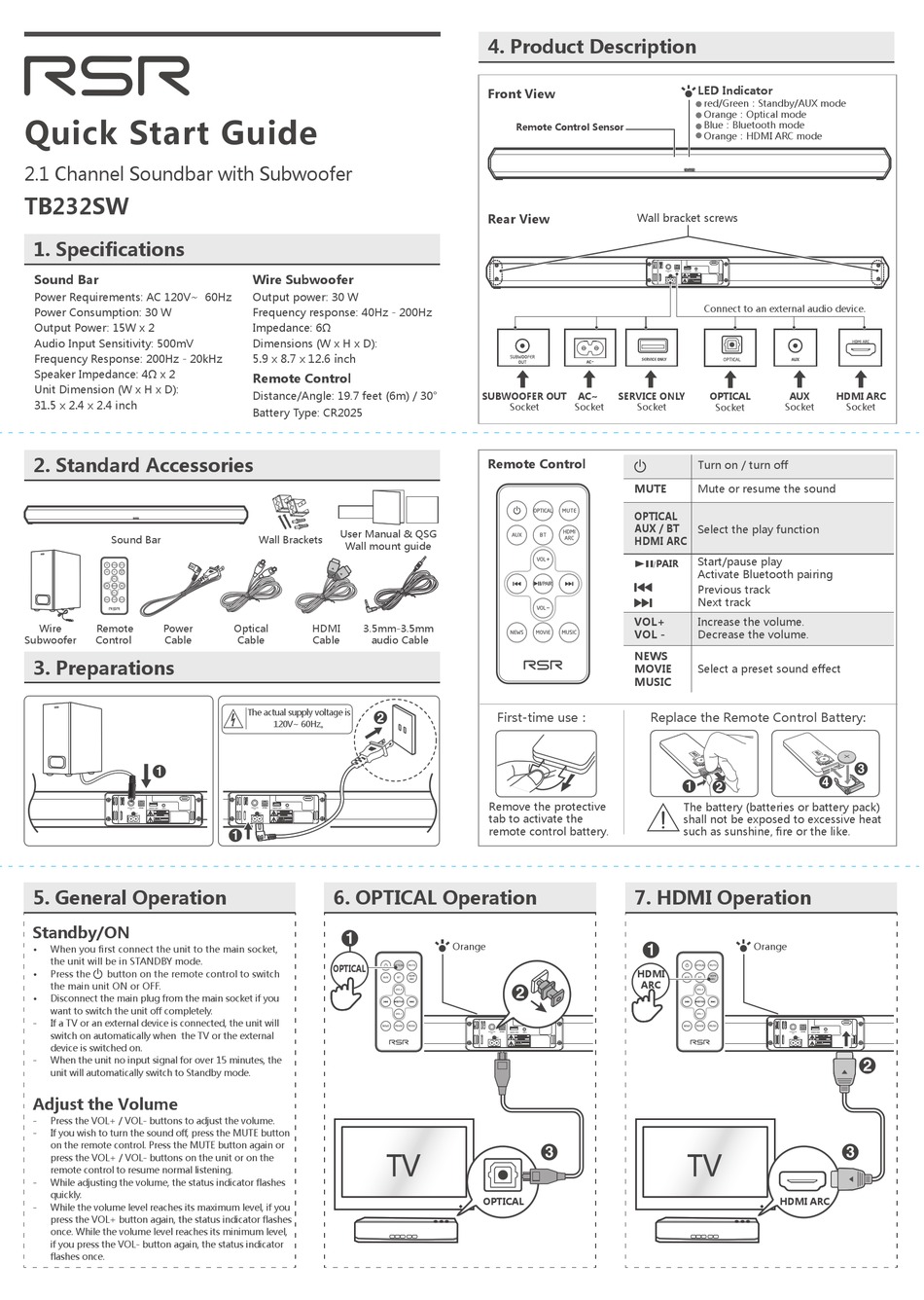

RSR TB232SW Quick Start Manual

Quick Start Guide
2.1 Channel Soundbar with Subwoofer
TB232SW

1. Specifications

Sound Bar
Power Requirements: AC 120V~ 60Hz
Power Consumption: 30 W
Output Power: 15W x 2
Audio Input Sensitivity: 500mV
Frequency Response: 200Hz - 20kHz
Speaker Impedance: 4Ω x 2
Unit Dimension (W x H x D):
31.5 x 2.4 x 2.4 inch

2. Standard Accessories

Sound Bar
Wire Remote Power
Subwoofer Control Cable

3. Preparations



5. General Operation

Standby/ON
• When you first connect the unit to the main socket,
the unit will be in STANDBY mode.
• Press the button on the remote control to switch
the main unit ON or OFF.
• Disconnect the main plug from the main socket if you
want to switch the unit off completely.
- If a TV or an external device is connected, the unit will
switch on automatically when the TV or the external
device is switched on.
- When the unit no input signal for over 15 minutes, the
unit will automatically switch to Standby mode.

Adjust the Volume

- Press the VOL+ / VOL- buttons to adjust the volume.
- If you wish to turn the sound off, press the MUTE button
on the remote control. Press the MUTE button again or
press the VOL+ / VOL- buttons on the unit or on the
remote control to resume normal listening.
- While adjusting the volume, the status indicator flashes
quickly.
- While the volume level reaches its maximum level, if you
press the VOL+ button again, the status indicator flashes
once. While the volume level reaches its minimum level,
if you press the VOL- button again, the status indicator
flashes once.
Wire Subwoofer
Output power: 30 W
Frequency response: 40Hz - 200Hz
Impedance: 6Ω
Dimensions (W x H x D):
5.9 x 8.7 x 12.6 inch
Remote Control
Distance/Angle: 19.7 feet (6m) / 30°
Battery Type: CR2025
User Manual & QSG
Wall Brackets
Wall mount guide
Optical HDMI 3.5mm-3.5mm
Cable Cable audio Cable

The actual supply voltage is
120V~ 60Hz。


6. OPTICAL Operation


OPTICAL
TV

4. Product Description

Front View
Remote Control Sensor
Rear View
SUBWOOFER OUT AC~ SERVICE ONLY
Socket Socket
Remote Control
First-time use：
Remove the protective
tab to activate the
remote control battery.
Orange


OPTICAL
LED Indicator
red/Green：Standby/AUX mode
Orange：Optical mode
Blue：Bluetooth mode
Orange：HDMI ARC mode
Wall bracket screws
Connect to an external audio device.
AUX
OPTICAL
Socket Socket Socket
Turn on / turn off
MUTE Mute or resume the sound
OPTICAL
AUX / BT
Select the play function
HDMI ARC
Start/pause play
PAIR
Activate Bluetooth pairing
Previous track
Next track
VOL+
Increase the volume.
VOL - Decrease the volume.
NEWS
MOVIE Select a preset sound effect
MUSIC
Replace the Remote Control Battery:
 
The battery (batteries or battery pack)
shall not be exposed to excessive heat
such as sunshine, fire or the like.

7. HDMI Operation


Orange
HDMI
ARC
TV
HDMI ARC
HDMI ARC
Socket




